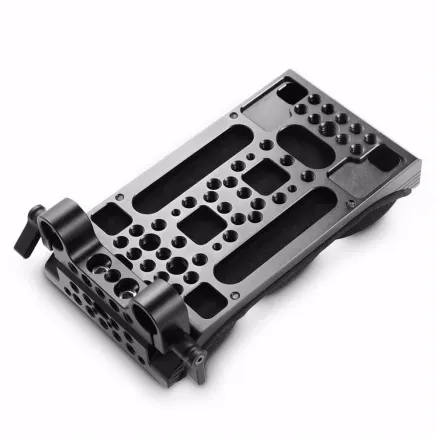

SmallRig 2266 Baseplate for BMPCC 4K (Manfrotto 501PL Compatible)

SmallRig Baseplate for BMPCC 4K (Manfrotto 501PL Compatible) 2266

Key Features:

• Dedicated baseplate designed specifically for Blackmagic Design Pocket Cinema Camera 4K (BMPCC 4K).
• Manfrotto 501PL compatible quick release (QR) plate and receiver on the top, secured by a lever for fast and secure mounting.
• 15mm rail support positioned at 85mm rod height for compatibility with standard 15mm rod accessories.
• Integrated ARRI standard dovetail on the bottom for direct mounting to ARRI dovetail plates.
• Multiple 1/4"-20 and 3/8"-16 threaded holes on the bottom for attaching additional plates or accessories.

Compatibility and Usage:

This baseplate is designed to work seamlessly with SmallRig BMPCC 4K Cages 2203 and 2254. The Manfrotto 501PL compatible QR system on top allows quick attachment and detachment of the cage. The 15mm rail clamp in the middle supports SmallRig 15mm rods (model 1053), enabling the attachment of various accessories such as the SmallRig Shoulder Pad Kit 2077, Lens Support 2152, Matte Box, Follow Focus, and Shoulder Rig Handle Kit 998.

The integrated ARRI dovetail on the bottom allows direct mounting to SmallRig ARRI Standard Dovetail Plate 1463. Additionally, the baseplate features multiple threaded holes (1/4"-20 and 3/8"-16) on the bottom for compatibility with other tripod plates or mounting options.

Materials and Dimensions:

• Material: Aluminum alloy for lightweight durability.
• Dimensions: 125 x 108 x 90 mm.
• Net weight: 321 g.
• Package dimensions: 108 x 73 x 51.5 mm.
• Package weight: 388 g.

Package Contents:

• 1 x Baseplate
• 1 x Hex key

Note:

If an Arca compatible quick release on the top is preferred, consider the SmallRig Baseplate 2261 instead.

Designer:

Yetta White
