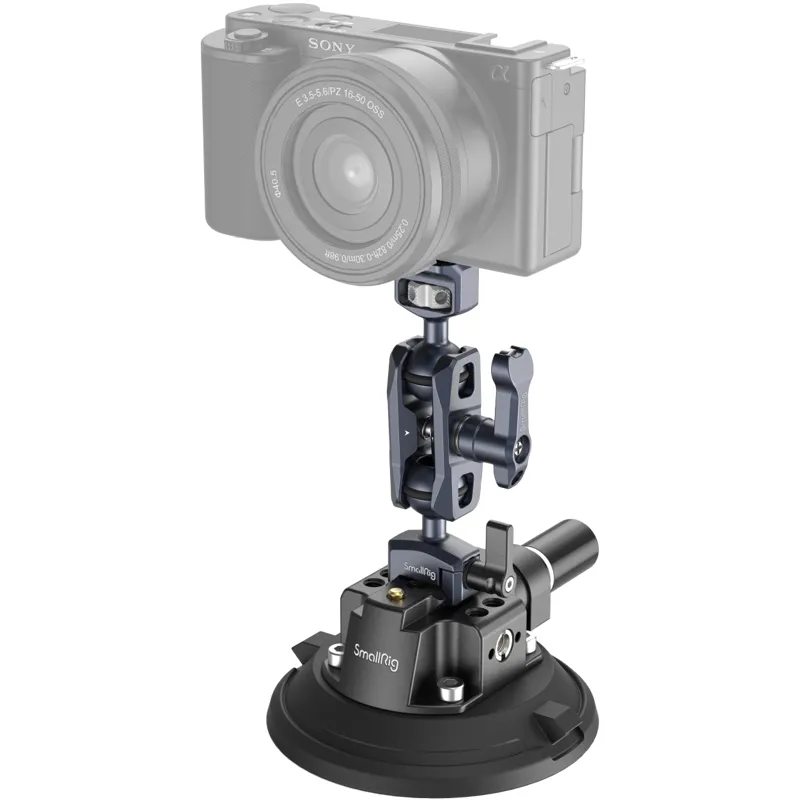

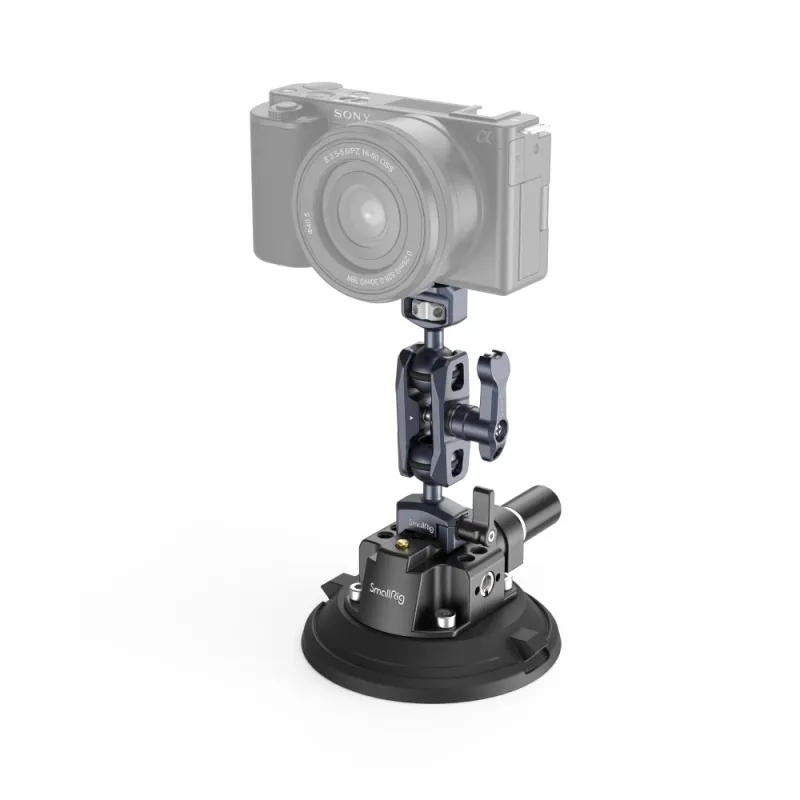

SmallRig Suction Cup Camera Mount Kit for Vehicle Shooting 4236

Suction Cup Camera Mount Kit for Vehicle Shooting

SmallRig 4" Suction Cup Camera Mount Kit 4236 consists of a 4" suction cup, a magic arm, and a dust cover. The robust and wear-resistant suction cup, made mostly of NBR, can operate at temperatures ranging from -20 to 60 degrees Celsius. It is not easily deformed, is air-tight, and is suitable for clean, dry, smooth surfaces. With powerful suction force, it works with the magic arm to carry gear weighing up to 3kg. The aluminum alloy suction cup camera mount features:

• 1/4"-20 threaded holes
• 3/8"-16 threaded holes
• ARRI 3/8"-16 locating holes

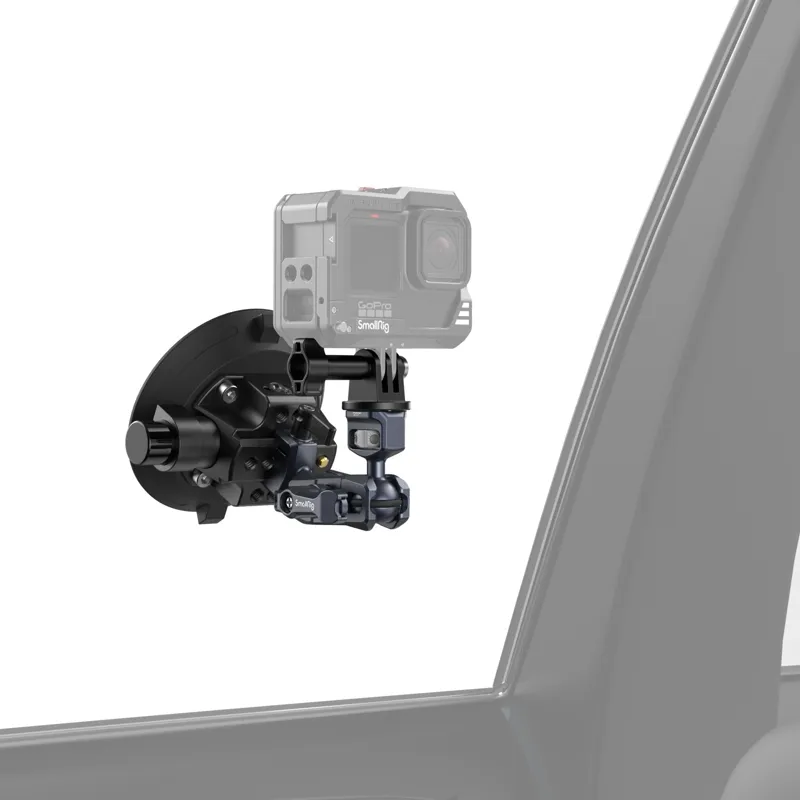

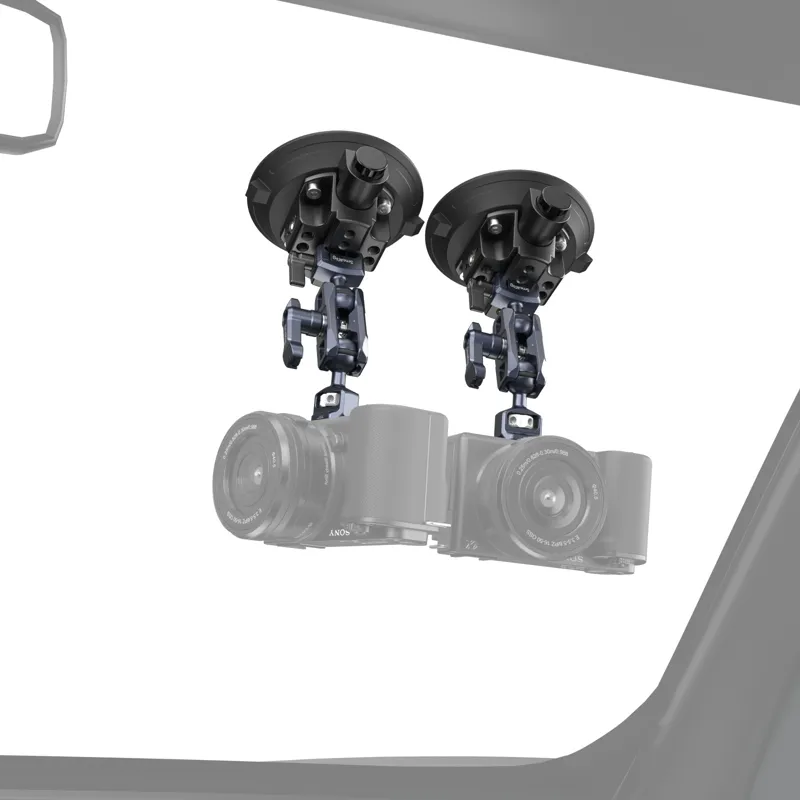

It supports various models including 3757, 3873, 3874, 2906B, 2070B, and 2115C. The system is manually pumped and locked, with a warning-line indicator to ensure safety and reliability. When not in use, the dust cover should be applied for a longer service life. In vehicle or indoor time-lapse shooting, the magic arm quickly connects to the suction cup via the NATO clamp on one end and to a camera on the other. Compatible cameras include:

• Sony ZV-E10
• Canon EOS M50
• GoPro 11 / 10 / 9 (in Cage 3084B)
• DJI Action 3 (in Cage 4119)

Specifications

• Load capacity up to 5kg on a vehicle running at or below 80km/h
• All-in-one NATO clamp, quick-release suction cup, and magic arm

Important Notes

• Suitable for clean, dry, and smooth surfaces; not for rough, wet, uneven, dirty, or fragile surfaces
• Ensure the suction cup and filter cotton are intact and clean when in use
• Apply carefully to coated surfaces
• When the warning-line indicator shows, it indicates vacuum loss. Pump the plunger until 100% vacuum pressure is achieved

Disclaimer

Please mount it onto recommended surfaces and check at least every two hours.

Compatibility

Universal

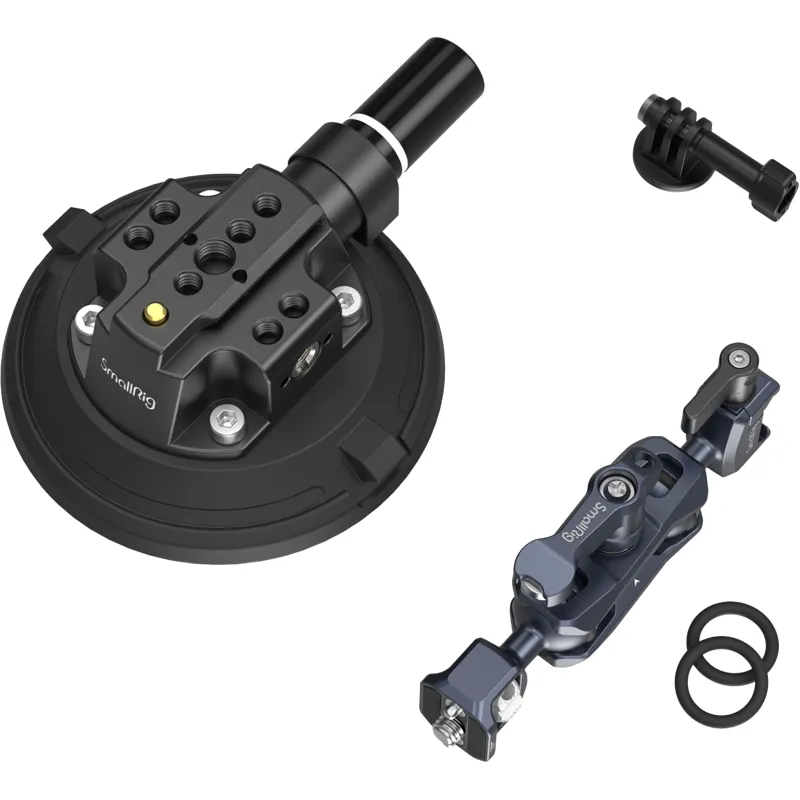

Package Includes

• 1x 4" Vacuum Suction Cup
• 1x Magic Arm
• 2x Silicone Ring
• 1x Action Camera Mount

Product Dimensions

• Product Dimensions: 139.6 x 105.8 x 50.2mm
• Package Dimensions: 162.0 x 121.0 x 71.0mm
• Product Weight: 355.0 ± 5.0g
• Package Weight: 378.0 ± 5.0g

Materials

Aluminum Alloy, NBR, ABS, Stainless Steel
