Premium balanced audio cable with Canare L-2T2S construction, 6.0mm diameter, 7.5m length.

Infinitek L-2T2S microphone cable 6.0mm XLR (M) / JACK TRS 6.3mm 7.5m

Product ID: 12350
€ 39,95 tax incl.
20-30
SKU: 12350
Model: I-2TS-M/TRS-BLK-705
Ean: 8586027491592
Condition: New product
Manufacturer: Infinitek
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductCables
Type of ProductAudio Cable
ConnectorXLR to 3.5mm
ConnectorXLR to 6.3mm
ColorBlack
Lenght, m7.5
send a message

Quick order


20-30

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Infinitek L-2T2S microphone cable 6.0mm XLR (M) / JACK TRS 6.3mm 7.5m

Infinitek L-2T2S microphone cable 6.0mm XLR (M) / JACK TRS 6.3mm 7.5m

Premium balanced audio cable with Canare L-2T2S construction, 6.0mm diameter, 7.5m length.

Write a review

Product details

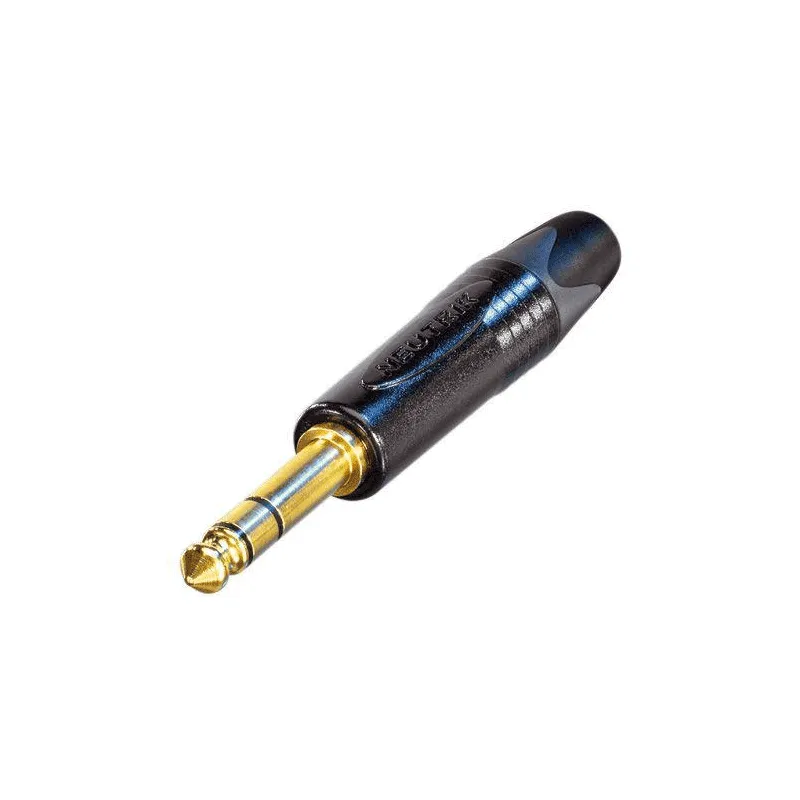

Canare XLR-M to JACK 6.3mm Black is a premium balanced audio interconnect cable.

The audio cable is constructed from Canare L-2T2S high-quality two-wire microphone cable with a 6.0mm diameter sheath.

  • Copper braided shielding
  • Flexible even in extremely cold weather
  • Cross-linked PE (polyethylene) insulation
  • Minimized handling noise
  • EMI (electromagnetic interference) and RFI (radio frequency interference) suppressed

Canare L-2T2S Cable Technical Specifications

  • Standard manufactured lengths in (m): 100/200
  • Cable weight in kg/100m: 4.6
  • Sheath diameter (overall diameter) in mm: 6.0
  • AWG: 23
  • Material and thickness of outer insulation in (mm): PVC (1.00)
  • Breaking point in (C): -49
  • Number and colour of conductors: 2 / 1 x blue, 1 x white
  • Number and diameter of cores per conductor in mm: 60/0.08
  • Shielding factor: U0026gt;94
  • Conductor resistance in /100m: U0026lt;6.4
  • Shielding resistance in /100m: U0026lt;3.1
  • Capacitance between blue and white conductors in pF/m: 70
  • Capacitance between conductors and shielding in pF/m: 106
  • Impedance: 88
specKey>

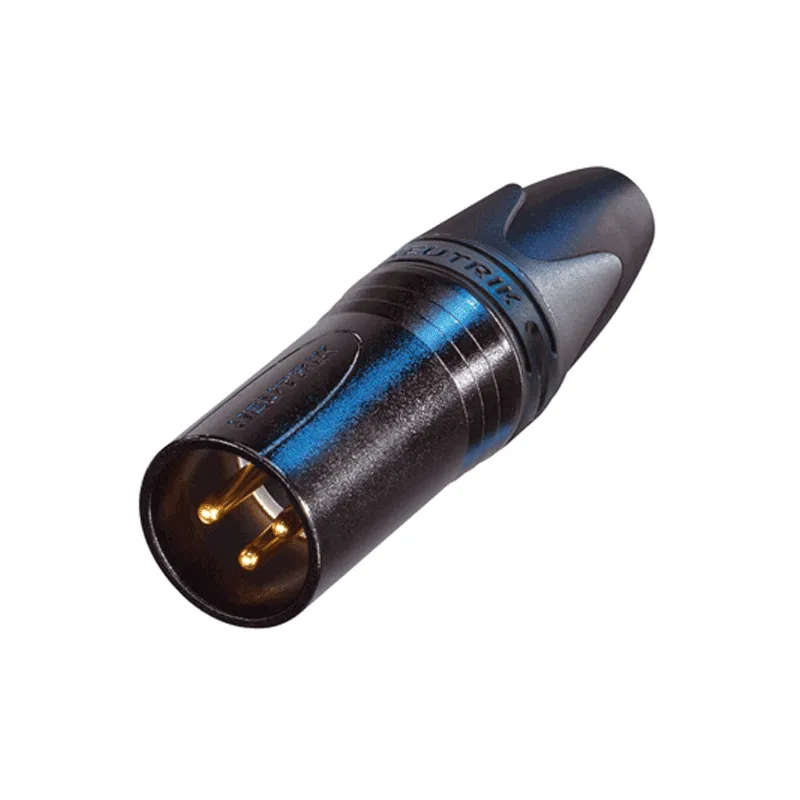

Technical specifications of Neutrik XX-B connectors

  • Capacitance: 4 pF
  • Contact resistance: 3 m
  • Rated voltage 1min: 1.5 kVdc
  • Insulation resistance: U0026gt; 10 G
  • Rated current per 1 contact: 16 A
  • Rated voltage: 50 V
  • Cable diameter: 3.5 - 8.0 mm
  • Force required to connect connectors: 20 N
  • Force required to disconnect connectors: 20 N
  • Lifetime: U0026gt; 1000 connection cycles
  • Conductor: max. 2.5 mm, max. 14 AWG
  • Soldering
  • Cable cap: Polyurethane
  • Contact surface treatment: 0.2 m Au layer on 2 m Ni
  • Contact material: Bronze (CuSn8)
  • Polyamide (PA 6.6 30 GR)
  • Lock: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Connector body: Zinc diecast (ZnAl4Cu1)
  • Connector body finish: black chrome
