Premium Canare XLR-M to JACK 6.3mm audio cable, 25m long, with excellent shielding and flexibility.

Infinitek L-2T2S microphone cable 6.0mm XLR (M) / JACK TRS 6.3mm 25m

Product ID: 8831
€ 79,45 tax incl.
20-30
SKU: 8831
Model: I-2TS-M/TRS-BLK-25
Ean: 8586027491622
Condition: New product
Manufacturer: Infinitek
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductAudio Cable
Type of ProductCables
ConnectorXLR to 6.3mm
ConnectorXLR to 3.5mm
ColorBlack
Lenght, m25
send a message

Quick order


20-30

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Infinitek L-2T2S microphone cable 6.0mm XLR (M) / JACK TRS 6.3mm 25m

Infinitek L-2T2S microphone cable 6.0mm XLR (M) / JACK TRS 6.3mm 25m

Premium Canare XLR-M to JACK 6.3mm audio cable, 25m long, with excellent shielding and flexibility.

Write a review

Product details

Canare XLR-M to JACK 6.3mm Black is a premium symmetrical audio cable.

The audio cable is assembled from Canare L-2T2S high quality two wire microphone cable with a 6.0mm diameter sheath.

  • Copper braided shielding
  • Flexible even in extremely cold weather
  • Cross-linked PE (polyethylene) insulation
  • Minimized handling noise
  • EMI (electromagnetic interference) and RFI (radio frequency interference) suppressed

Canare L-2T2S Cable Technical Specifications

  • Standard manufactured lengths in (m): 100/200
  • Cable weight in kg/100m: 4.6
  • Sheath diameter (overall diameter) in mm: 6.0
  • AWG: 23
  • Material and thickness of outer insulation in (mm): PVC (1.00)
  • Breaking point in (C): -49
  • Number and colour of conductors: 2 / 1 x blue, 1 x white
  • Number and diameter of cores per conductor in mm: 60/0.08
  • Shielding factor: U0026gt;94
  • Conductor resistance in /100m: U0026lt;6.4
  • Shielding resistance in /100m: U0026lt;3.1
  • Capacitance between blue and white conductors in pF/m: 70
  • Capacitance between conductors and shielding in pF/m: 106
  • Impedance: 88
specKey>

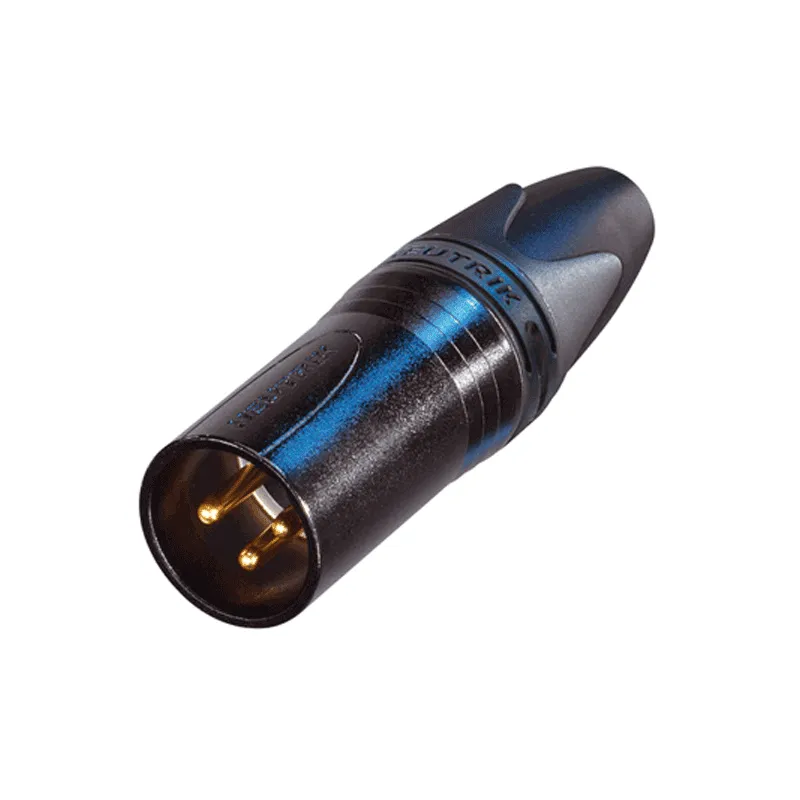

Technical specifications of Neutrik XX-B connectors

  • Capacitance: 4 pF
  • Contact resistance: 3 m
  • Rated voltage 1min: 1.5 kVdc
  • Insulation resistance: U0026gt; 10 G
  • Rated current per 1 contact: 16 A
  • Rated voltage: 50 V
  • Cable diameter: 3.5 - 8.0 mm
  • Force required to connect connectors: 20 N
  • Force required to disconnect connectors: 20 N
  • Lifetime: U0026gt; 1000 connection cycles
  • Conductor: max. 2.5 mm, max. 14 AWG
  • Soldering
  • Cable cap: Polyurethane
  • Contact surface treatment: 0.2 m Au layer on 2 m Ni
  • Contact material: Bronze (CuSn8)
  • Polyamide (PA 6.6 30 GR)
  • Lock: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Connector body: Zinc diecast (ZnAl4Cu1)
  • Connector body finish: black chrome
