Premium balanced audio cable with copper shielding, flexible in cold weather, and minimized handling noise.

Infinitek L-2T2S microphone cable 6.0mm XLR (M) / JACK TRS 6.3mm 50m

Product ID: 39378
€ 139,95 tax incl.
20-30
SKU: 39378
Model: I-2TS-M/TRS-BLK-50
Ean: 8586027491677
Condition: New product
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductAudio Cable
ConnectorXLR to 3.5mm
ConnectionsXLR to 6.3mm
ColorBlack
Lenght, m50
send a message

Quick order


20-30

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Infinitek L-2T2S microphone cable 6.0mm XLR (M) / JACK TRS 6.3mm 50m

Infinitek L-2T2S microphone cable 6.0mm XLR (M) / JACK TRS 6.3mm 50m

Premium balanced audio cable with copper shielding, flexible in cold weather, and minimized handling noise.

Write a review

Product details

Canare XLR-M to JACK 6.3mm Black is a premium balanced audio cable.

The audio cable is assembled from Canare L-2T2S high quality two wire microphone cable with a 6.0mm diameter sheath.

  • Copper braided shielding
  • Flexible even in extremely cold weather
  • Cross-linked PE (polyethylene) insulation
  • Minimized handling noise
  • EMI (electromagnetic interference) and RFI (radio frequency interference) suppressed

Canare L-2T2S Cable Technical Specifications

  • Standard manufactured lengths in (m): 100/200
  • Cable weight in kg/100m: 4.6
  • Sheath diameter (overall diameter) in mm: 6.0
  • AWG: 23
  • Material and thickness of outer insulation in (mm): PVC (1.00)
  • Breaking point in (C): -49
  • Number and colour of conductors: 2 / 1 x blue, 1 x white
  • Number and diameter of cores per conductor in mm: 60/0.08
  • Shielding factor: U0026gt;94
  • Conductor resistance in /100m: U0026lt;6.4
  • Shielding resistance in /100m: U0026lt;3.1
  • Capacitance between blue and white conductors in pF/m: 70
  • Capacitance between conductors and shielding in pF/m: 106
  • Impedance: 88
specKey>

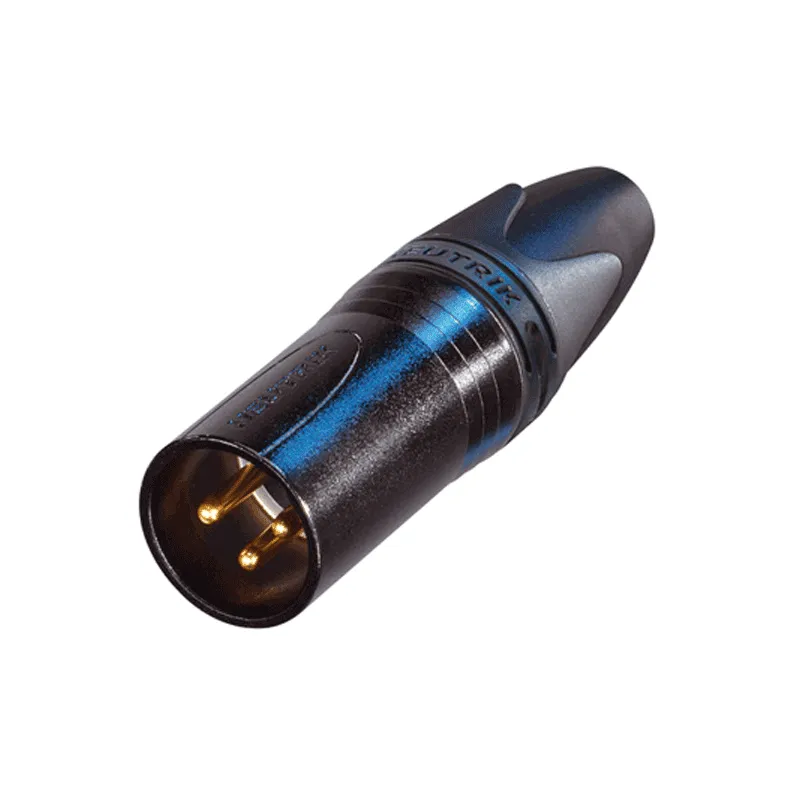

Technical specifications of Neutrik XX-B connectors

  • Capacitance: 4 pF
  • Contact resistance: 3 m
  • Rated voltage 1min: 1.5 kVdc
  • Insulation resistance: U0026gt; 10 G
  • Rated current per 1 contact: 16 A
  • Rated voltage: 50 V
  • Cable diameter: 3.5 - 8.0 mm
  • Force required to connect connectors: 20 N
  • Force required to disconnect connectors: 20 N
  • Lifetime: U0026gt; 1000 connection cycles
  • Conductor: max. 2.5 mm, max. 14 AWG
  • Soldering
  • Cable cap: Polyurethane
  • Contact surface treatment: 0.2 m Au layer on 2 m Ni
  • Contact material: Bronze (CuSn8)
  • Polyamide (PA 6.6 30 GR)
  • Lock: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Connector body: Zinc diecast (ZnAl4Cu1)
  • Connector body finish: black chrome
