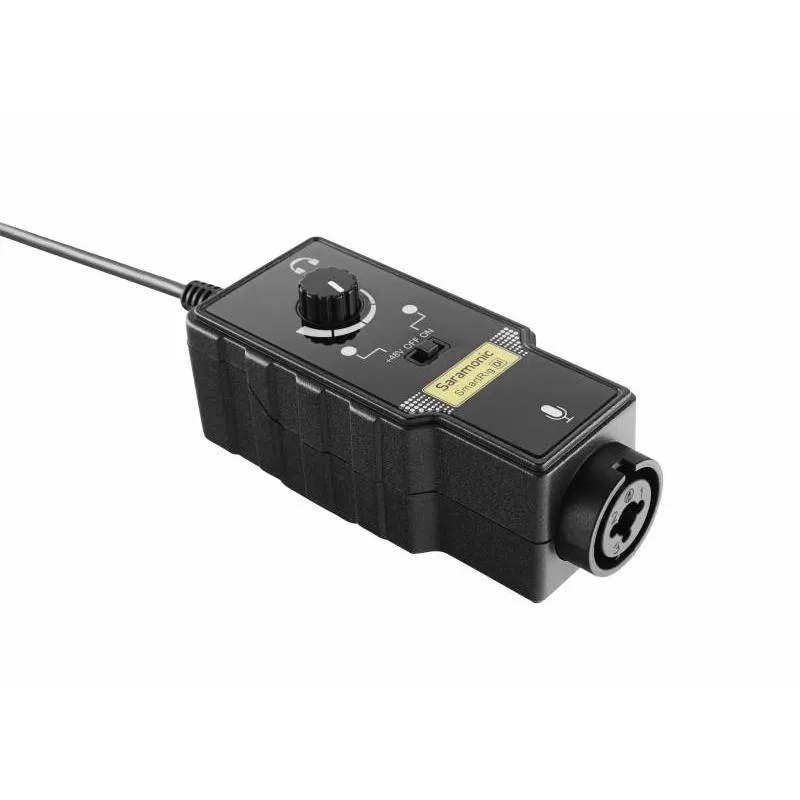

Saramonic SmartRig Di audio adapter

Di Saramonic SmartRig

This audio adapter allows you to connect any audio equipment from Apple mobile devices, equipped with a Lightning connector (iPhone, iPad, iPod).

Features

• SmartRig Di is equipped with XLR / TRS jack (6.35 mm), which allows you to connect a microphone, a guitar, or a console in a professional standard.
• Support for phantom power supply provides broad compatibility with supported microphones.

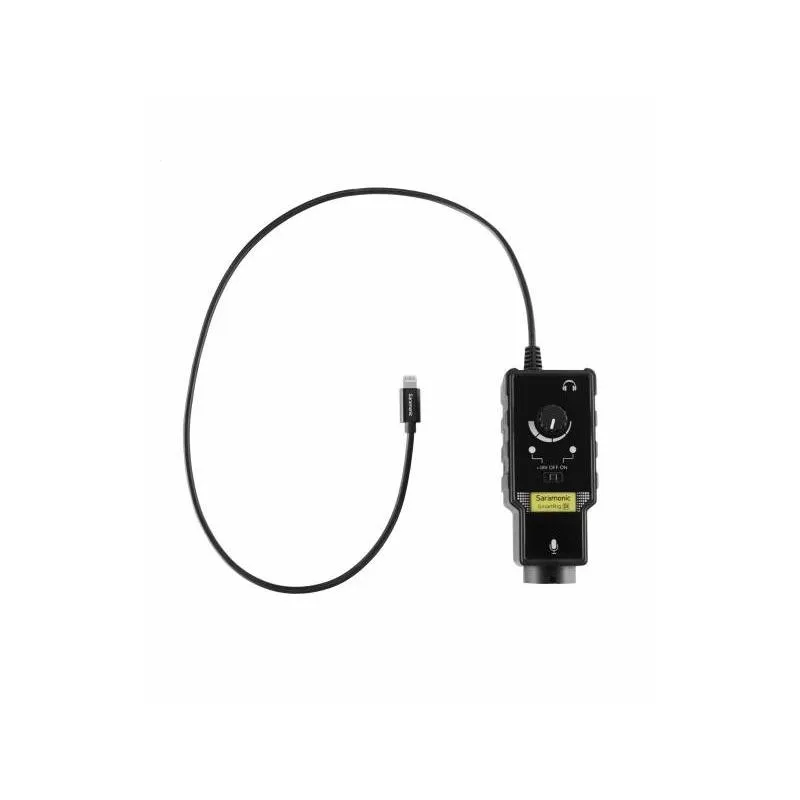

• The output signal is transmitted to the smartphone or tablet using the Lightning cable.
• The signal level can be adjusted by means of a convenient analog dial.
• Standard headphone mini jack allows listening to recorded material in real time, making it easier to work with sound.

Usage

The interface is well suited for situations where you register a single source, e.g., during interviews, V-logs, or instrumental music recordings. The device is compatible with most applications available in the App Store for recording sound.

Build Quality

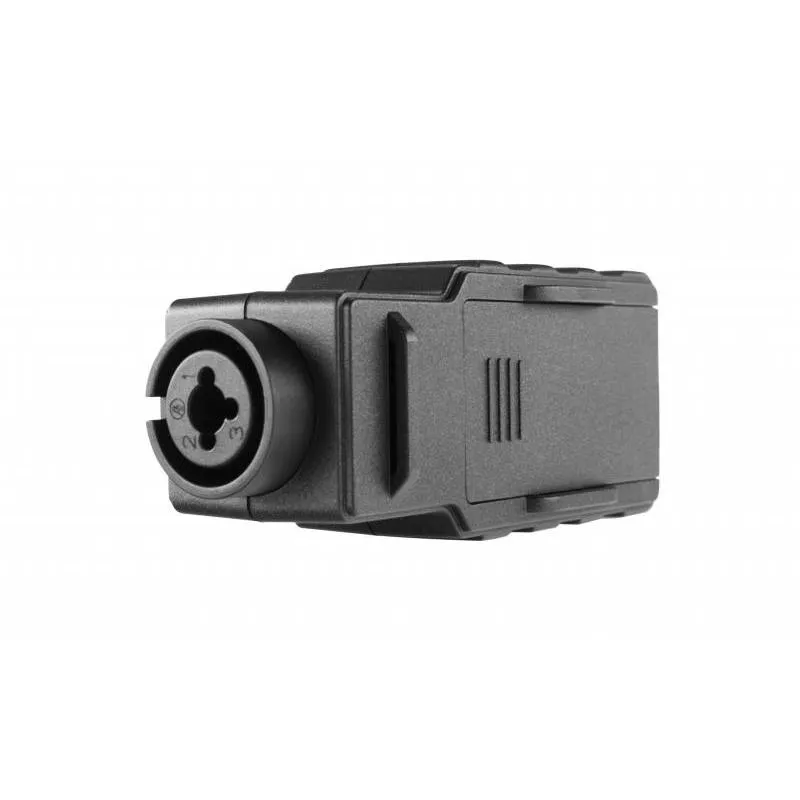

Di SmartRig housing is made of high-quality plastic, making it resistant to abrasions and bruises. On the back side, there is a belt clip that allows you to put the adapter in a convenient spot.

Specifications

• Power supply: 9 volt battery
• Phantom power: 48 V
• Input: XLR / TRS jack (6.35 mm)
• Output signal: Lightning plug with a cable length of 50 cm
• Output headphone jack: TRRS (3.5 mm)
• Frequency range: 20 Hz - 20 kHz (+/- 0.5 dB)
• Gain Control: 23 dBu
