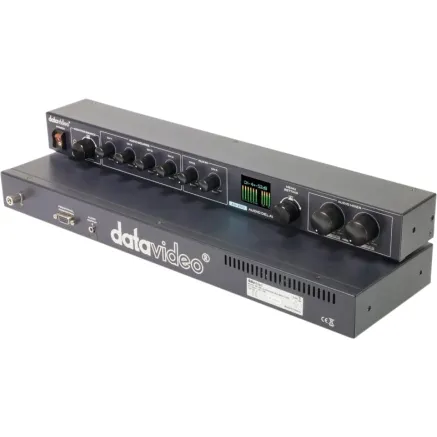

Datavideo AD-200 1RU Audio Mixer with Delay Function

6-Channel Audio Mixer with Delay Function

The Datavideo AD-200 is a professional 1RU audio mixer designed for live production environments requiring precise audio delay and mixing capabilities. It features six input channels with individual delay adjustment, enabling synchronization of audio with delayed video sources.

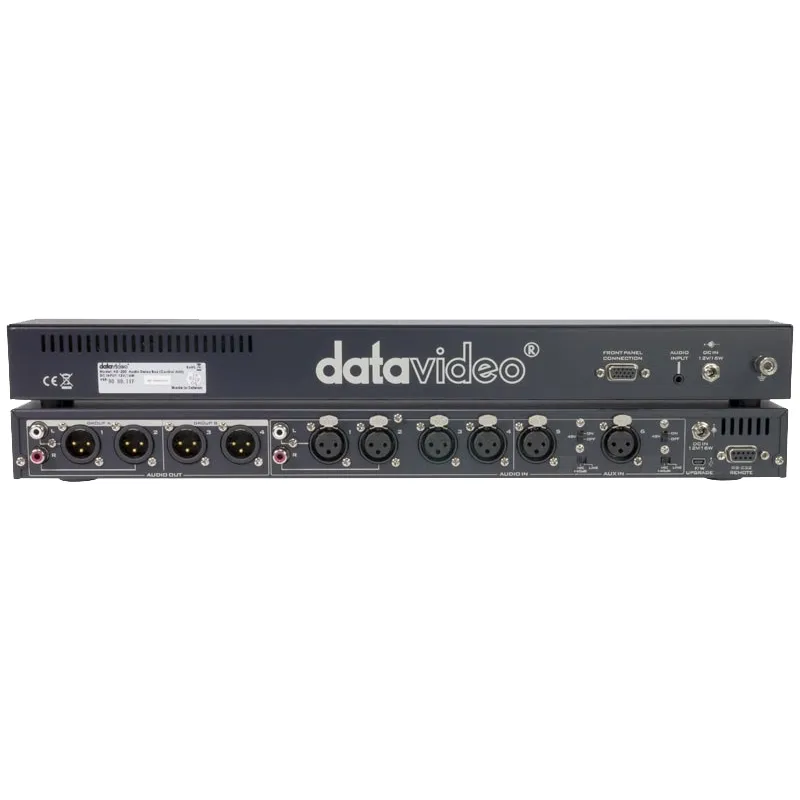

Audio Inputs and Outputs

• 6× XLR balanced audio inputs
• 2× RCA stereo inputs
• 4× XLR balanced audio outputs
• 2× RCA stereo outputs
• 1× 3.5 mm stereo output

Delay and Mixing Features

• Per-channel audio delay up to 3000 milliseconds
• Supports 48 kHz audio sample rate
• Matrix-style audio routing and mixing for flexible source management

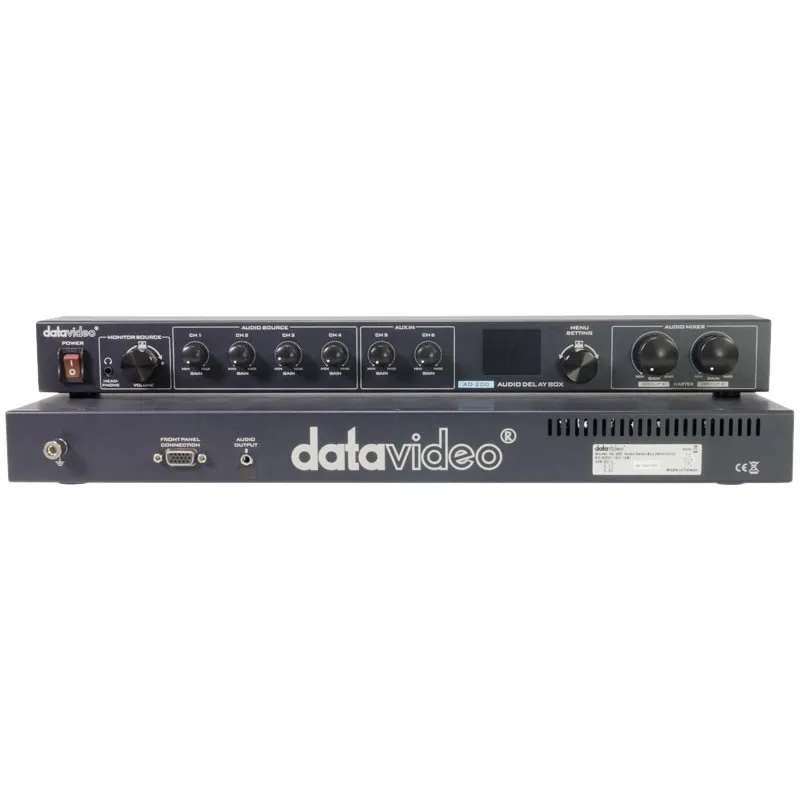

Display and Control

• 1.77-inch color OLED display for clear status indication

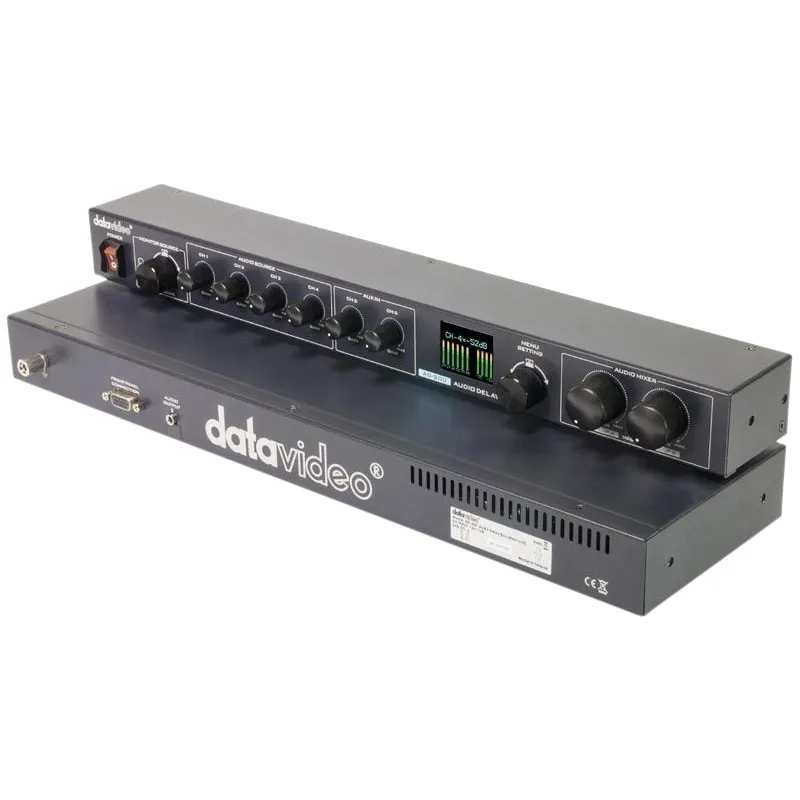

• Separate main unit and control unit for rack integration

Physical and Power Specifications

• 2-unit rack-mount chassis (440 × 126 × 42 mm)
• Weight: 1.8 kg
• Power: DC 12V, 19W front unit, 16W rear unit
• Operating temperature range: 0–40 °C

Typical Applications

• Synchronizing audio with delayed video in live broadcast and production
• OB van and rack-based broadcast setups
• Multi-source audio mixing and routing in professional environments

Package Contents

• AD-200 main unit
• AD-200 control unit
• DC 12V power adapter
• D-SUB cable
• 3.5 mm stereo cable (1.2 m)
• 4× 1U rack mounting kits
• 16× M4 screws
