Blackmagic Design DeckLink Duo 2 (BM-BDLKDUO2)
Overview

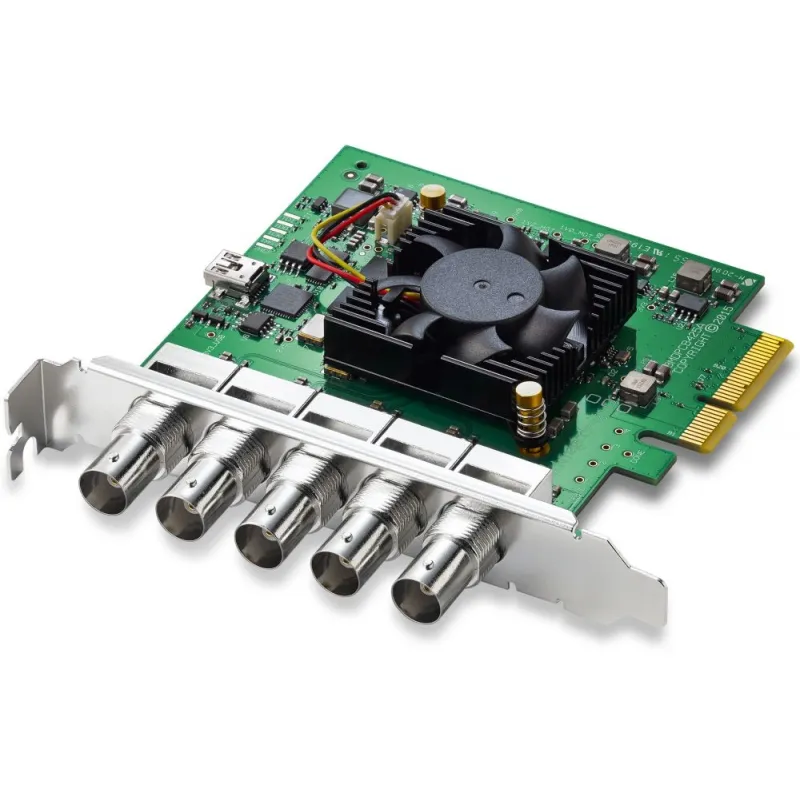

The DeckLink Duo 2 is a PCI Express capture and playback card featuring 4 independent 3G-SDI connections. It supports SD and HD SDI formats up to 1080p60, providing the flexibility of four separate capture or playback cards in one unit. This card is fully customizable, making it ideal for media playout systems, multi-screen digital signage servers, real-time multi-channel capture systems, and more.
DeckLink Capture Card Family
DeckLink cards are high-performance capture and playback solutions compatible with Mac, Windows, and Linux platforms. They are widely used in professional video production including commercials, music videos, episodic TV, and feature films. These cards deliver the highest video quality and reliability, supporting a broad range of software applications and workflows.
Post Production Capabilities
DeckLink Duo 2 supports SD, HD, 3D, and Ultra HD formats, enabling capture from cameras, decks, and live feeds directly into editing, effects, and design software. While DeckLink Duo 2 focuses on SD and HD up to 1080p60, other DeckLink models support Ultra HD and advanced features such as 4:4:4 color sampling and stereoscopic 3D.
Connectivity and Features
- 4 bidirectional 12-bit SD/HD SDI connections, independently configurable as input or output
- 16 channels of embedded SDI audio for both input and output
- Sync input supporting blackburst for SD and tri-sync for HD formats
- PCI Express 4-lane interface compatible with 4 and 8 lane PCIe slots
Supported Codecs
Supports a wide range of professional codecs including AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR formats, DV-NTSC/PAL, DVCPRO50/HD, DPX, HDV, HEVC, XDCAM EX/HD/HD422, Apple ProRes (4444, 422 HQ, 422, LT, Proxy), and uncompressed 8-bit and 10-bit 4:2:2 and 4:4:4 video.
Software and Compatibility
- Includes Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, and drivers for Mac OS X, Windows 8/10, and Linux
- Firmware upgrades are integrated into the software driver and loaded at system start or via updater
- Compatible with a wide range of professional software such as DaVinci Resolve, Final Cut Pro X, Premiere Pro CC, Avid Media Composer, After Effects CC, Pro Tools, Cubase, and many others
Video Standards and Processing
- SD formats: 525i29.97 NTSC, 625i25 PAL
- HD formats: 720p50/59.94/60, 1080p23.98/24/25/29.97/30/50/59/59.94/60, 1080PsF23.98/24/25/29.97/30, 1080i50/59.94/60
- SDI compliance: SMPTE 259M, 292M, 296M, 372M, 425M A/B
- Supports VITC for 3:2 pulldown removal and VANC capture/playback including HD RP188 and closed captioning
- Audio sampling at 48 kHz, 24-bit
- Video sampling: 4:2:2 and 4:4:4 with 8, 10, and 12-bit color precision
- Color spaces: REC 601 and REC 709
- Hardware-based real-time colorspace conversion
- Built-in high-quality HD down conversion (HD to SD) and up conversion (SD to HD)
- Hardware cross conversion between 720HD and 1080HD on playback
- Supports real-time effects in Final Cut Pro X, Premiere Pro CC, and Avid Media Composer
Physical and Environmental Specifications
- Dimensions (mounting depth): 94 mm
- Weight: 160 g
- Operating temperature: 5° to 40° C
- Storage temperature: -20° to 45° C
- Relative humidity: 0% to 90% non-condensing
Certifications and Warranty
- EMC certifications: FCC, CE, and C-Tick
- Limited manufacturer’s warranty: 3 years
Included in the Box
- DeckLink Duo 2 PCIe capture and playback card
- SD card containing software and manual
