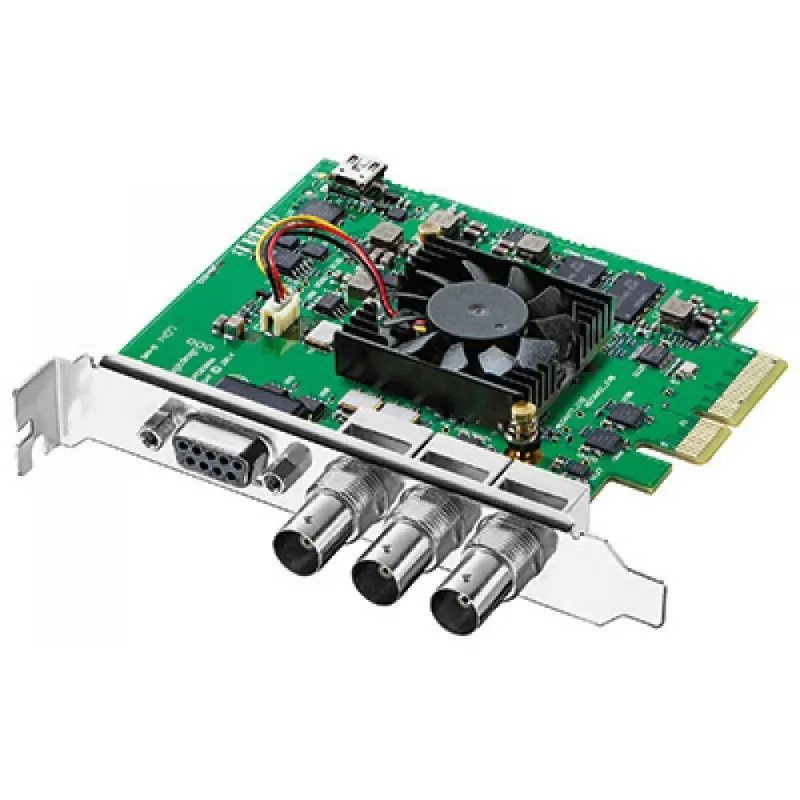

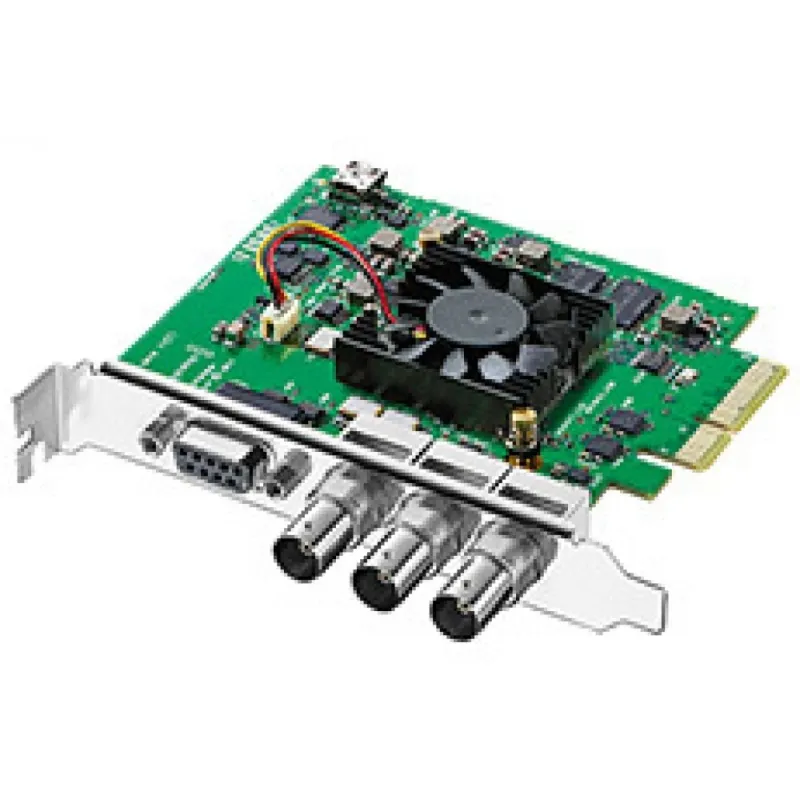

Blackmagic DeckLink SDI 4K (BM-BDLKSDI4K)
Capture and playback with 6G-SDI for SD, HD, 2K, and Ultra HD.
DeckLink SDI 4K is ideal for those needing an SDI-only solution while demanding the highest quality SDI capture and playback. It provides incredible quality 6G-SDI on any PCI Express Mac, Windows, or Linux computer. This is the world's smallest and most affordable multi-rate SD/HD and Ultra HD SDI video card, allowing connections to any SD, HD-SDI, 2K, and Ultra HD equipment. It also includes RS-422 deck control, internal keying, and reference input for a complete editing solution.
DeckLink Overview
DeckLink capture and playback cards are utilized daily in the production of television commercials, music videos, episodic television programs, and Hollywood feature films. With cutting-edge technologies, you receive the highest quality video and maximum reliability. No other capture cards support more applications and platforms than DeckLink, ensuring compatibility with your favorite software. Every DeckLink PCIe card can be installed in Mac, Windows, and Linux-based workstations and media servers for ultimate flexibility.
Perfect for Post Production
Work with any video format and resolution you need! Capture from cameras, decks, and live feeds directly into editing, effects, and design software applications. DeckLink Studio 4K and DeckLink SDI 4K feature high-resolution Ultra HD, while DeckLink 4K Extreme 12G and DeckLink 4K Pro also include dual link 12G-SDI, 2160p60 support, 444 image quality, and 3D stereoscopic capabilities for advanced visual effects, editing, and color correction.
Select Your Favorite Model
There’s a perfect DeckLink model for every job! The high-performance DeckLink 4K Extreme 12G and DeckLink 4K Pro feature advanced 12G technology for Ultra HD at 60 frames per second, with separate fill and key links, Dual Link multi-rate 12G-SDI, HDMI 4K, 444, stereoscopic 3D, and super-fast 8 lane PCIe Gen 2. DeckLink Studio 4K is great for those needing numerous analog connections alongside multi-rate 6G-SDI connections, while DeckLink SDI is designed for SDI-only use with multi-rate 6G-SDI connections. All models support capture and playback of SD, HD, or Ultra HD video with embedded SDI audio compatibility.
Highest Quality Connections
Every DeckLink card features high-quality connections for pristine video and audio quality, connecting to a wide range of professional SDI equipment. DeckLink 4K Extreme 12G includes Dual Link 12G-SDI, HDMI 4K, analog video, and 2 channels of AES/EBU audio. DeckLink Studio 4K includes 6G-SDI, HDMI 1.4b, analog component, S-Video, composite video, and more. DeckLink SDI 4K is perfect for high-quality 10-bit SDI use only. All models include black burst/tri-sync reference and serial deck control, switching between SD, HD, and Ultra HD, with advanced models supporting DCI 4K and high frame rate formats.
Unrivaled Video Quality
DeckLink allows you to work with compressed video formats like ProRes and DNxHD, as well as 10-bit uncompressed video. Uncompressed images are pixel-for-pixel clones of the source, ensuring the highest quality possible. This results in sharper keying, cleaner compositions, and superior color correction. Compression support for industry-leading file formats maintains high quality throughout post-production.
Advanced Technology
Utilize the latest 6G-SDI and 12G-SDI technology for full resolution Ultra HD video capture and playback, compatible with all SD and HD-SDI equipment. This provides four times the resolution of standard 1080 HD video at 3840 x 2160 image size. DeckLink SDI 4K and DeckLink Studio 4K include 6G-SDI, while DeckLink 4K Pro and DeckLink 4K Extreme 12G include Dual Link 12G-SDI connections for higher color resolution and dual stream 3D support.
Use Your Favorite Software
DeckLink cards are compatible with a wide range of software applications across different operating systems:
- Mac OS X: Compatible with Avid Media Composer, Final Cut Pro X, Premiere Pro CC, and more.
- Windows: Supports Avid Media Composer, Premiere Pro, Sony Vegas Pro, and others.
- Linux: Open standard capture cards suitable for developing Linux-based video applications.
In The Box
- DeckLink SDI 4K
- SD card with software and manual
Connections
- SDI Video Input: 1 10-bit SD/HD/2K/4K. Supports 6 Gb/s 422 and 3 Gb/s 444
- SDI Video Output: 1 10-bit SD/HD/2K/4K. Supports 6 Gb/s 422 and 3 Gb/s 444
- SDI Audio Input: 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD
- SDI Audio Output: 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD
- Sync Input: Blackburst or Tri-Sync
- Device Control: Sony compatible RS422 deck control ports
- Computer Interface: PCI Express 4 lane generation 1
Codecs
- Supports: AVC-Intra, AVCHD, Canon XF MPEG2, DVCPROHD, Apple ProRes, and more.
Software

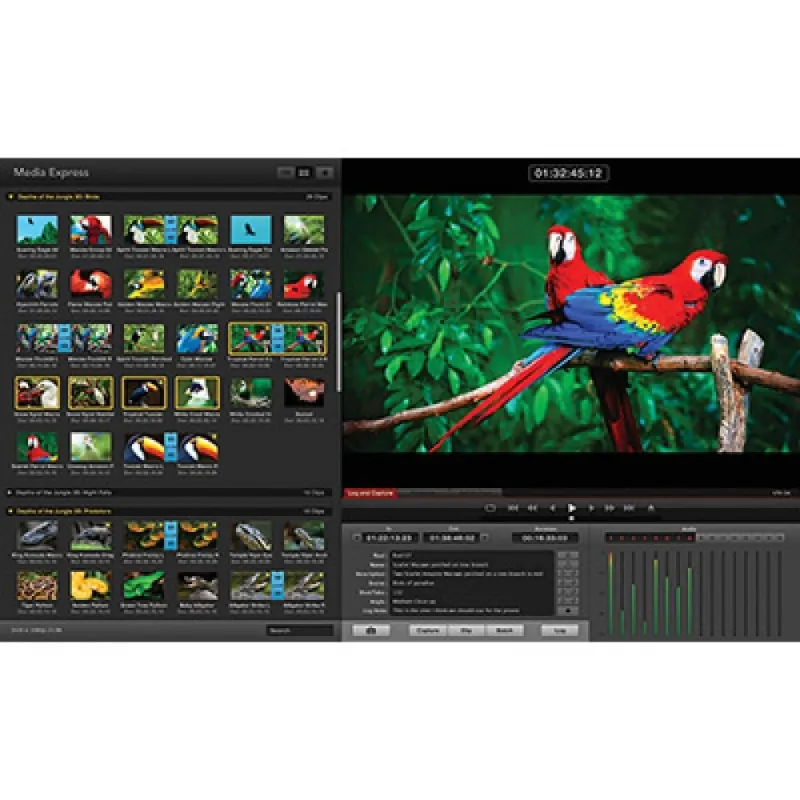

- Software Included: Media Express, Disk Speed Test, LiveKey, and drivers for Mac, Windows, and Linux.
- Internal Software Upgrade: Firmware built into software driver.
- Physical Installation: PCI Express 4 lane generation 1 compatible with various slots.
Software Applications
- Supported applications: DaVinci Resolve, Fusion, Final Cut Pro X, Premiere Pro CC, and more.
- Other supported applications: Nuke, Steinberg Nuendo, Avid Symphony, and others.
Video Standards
- SD Format Support: 525i29.97 NTSC, 625i25 PAL
- HD Format Support: Various HD formats including 1080p and 1080i
- 2K Format Support: 2K 23.98p, 2K 24p, 2K 25p
- Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25
- 4K Format Support: 4K DCI 23.98p, 4K DCI 24p
- SDI Compliance: SMPTE standards
- Audio Sampling: 48 kHz at 24 bit
- Color Precision: 10-bit
- Color Space: REC 601, REC 709
Processing
- Colorspace Conversion: Hardware based real-time.
- HD Down Conversion: Built-in high-quality hardware down converter.
- HD Up Conversion: Software based up conversion from SD to HD.
- Cross Conversion: Software based cross conversion between HD formats.
- Real Time Effects: Supported in various editing software.
Operating Systems
- Mac: OS X 10.9 and later
- Windows: Windows 8.1 and 10
- Linux: SUSE
EMC Certifications
- Certifications: FCC, CE, and C-Tick
Physical Specifications
- Dimension (mounting depth): 95.2 mm
- Weight: 127 g
Environmental Specifications
- Operating Temperature: 5 to 40 C (32 to 104 F)
- Storage Temperature: -20 to 45 C (-4 to 113 F)
- Relative Humidity: 0 to 90 non-condensing
Warranty
- Limited Manufacturers Warranty: 3 Years
