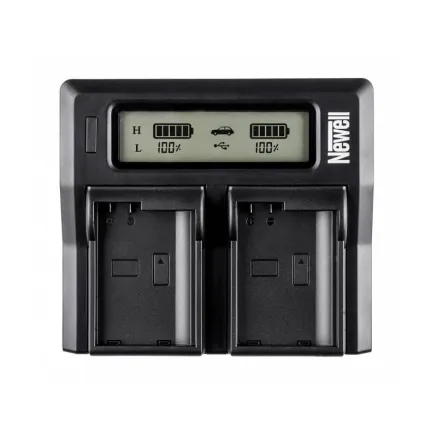

Newell DC-LCD Dual-Channel Charger for NP-FZ100 Batteries

Professional Dual-Channel Charging

The Newell DC-LCD charger is designed to efficiently charge NP-FZ100 batteries with two independent charging channels, allowing faster and simultaneous charging of two batteries. It features advanced controllers that regulate charging parameters to protect against overheating and overcharging, ensuring maximum battery cell longevity.

Power Supply Options

The charger supports AC power input from 100 to 240 V at 50/60 Hz and DC input from 12 to 24 V with a maximum current of 3000 mA. It includes a mains cable for standard power outlets and a car charger cable for charging on the go.

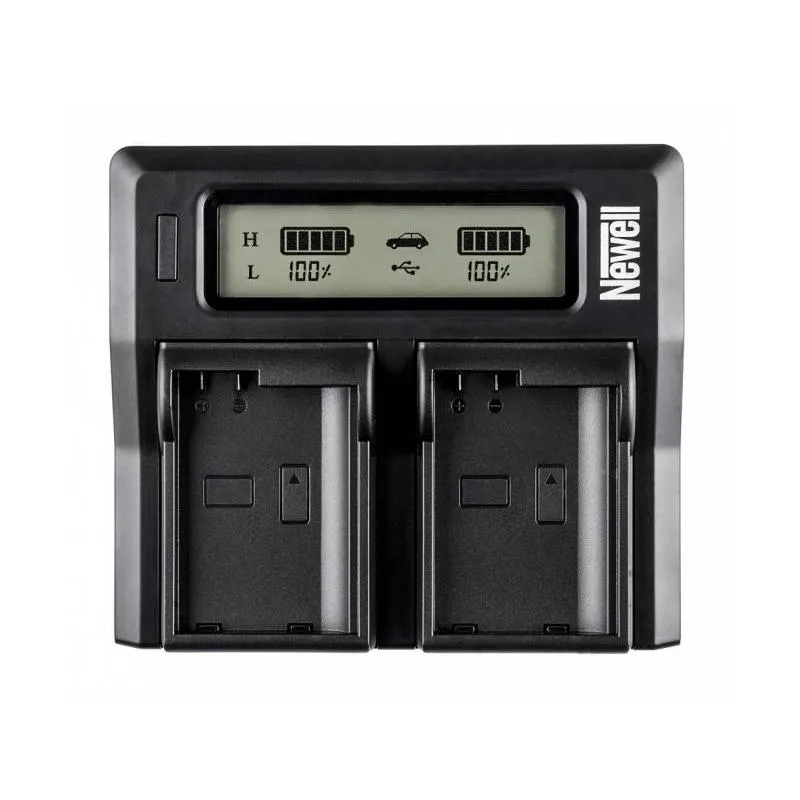

LCD Display and Charging Modes

An integrated LCD screen displays the charging progress as a percentage for each battery and indicates the selected charging mode. The device offers two charging modes: normal (L) and fast (H), providing flexibility depending on your charging needs.

Additional USB Charging Port

The charger includes a built-in USB port capable of delivering 2100 mA, allowing it to charge smartphones, tablets, and power banks alongside camera batteries.

Compatibility

This charger is compatible with Sony system batteries, Newell brand batteries, and other compatible replacements, specifically designed for NP-FZ100 battery models.

Specifications

• Power Supply:
  • AC 100-240 V, 50/60 Hz
  • DC 12-24 V, max 3000 mA
• Charging Current:
  • Normal (L): 1000 mA for single battery / 500 mA for two batteries
  • Fast (H): 1500 mA for single battery / 800 mA for two batteries
  • USB Output: 2100 mA
• Dimensions: 12.5 x 11 x 4.3 cm
• Weight: 290 g (without cable)

Package Contents

• Newell DC-LCD dual-channel charger
• Mains power cable
• Car charger cable
