Newell DC-LCD Dual-Channel Charger for EN-EL15 Batteries

Charging Capabilities

The Newell DC-LCD is a professional dual-channel charger designed for EN-EL15 batteries, providing efficient charging regardless of battery capacity or quantity. It features an easy-to-read LCD display to monitor the charging process in real time.

Power Options

The charger supports AC power input from 100 to 240 V at 50/60 Hz and DC input from 12 to 24 V with a maximum current of 3000 mA, allowing charging from mains or vehicle power sources using the included cables.

Dual Charging Channels and Safety Features

Equipped with two independent charging channels, the Newell DC-LCD charger can charge two batteries simultaneously, accelerating the charging process. Advanced controllers regulate charging parameters to protect against overheating and overcharging, thereby maximizing battery cell lifespan.

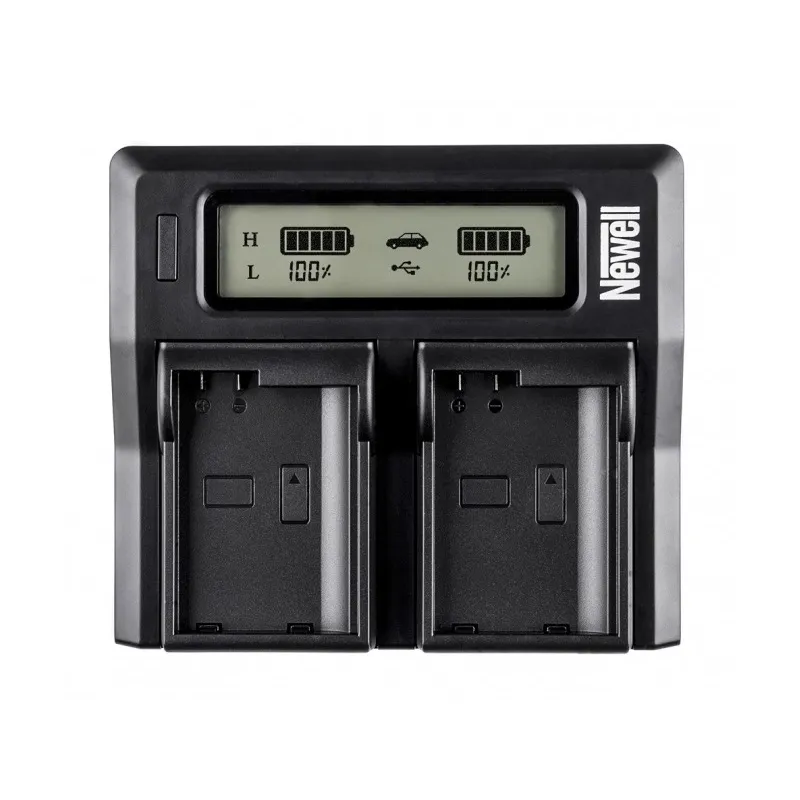

LCD Display and Charging Modes

The built-in LCD screen displays the charge percentage of each battery and the selected charging mode. The charger offers two modes: normal (L) and fast (H), with respective charging currents detailed below.

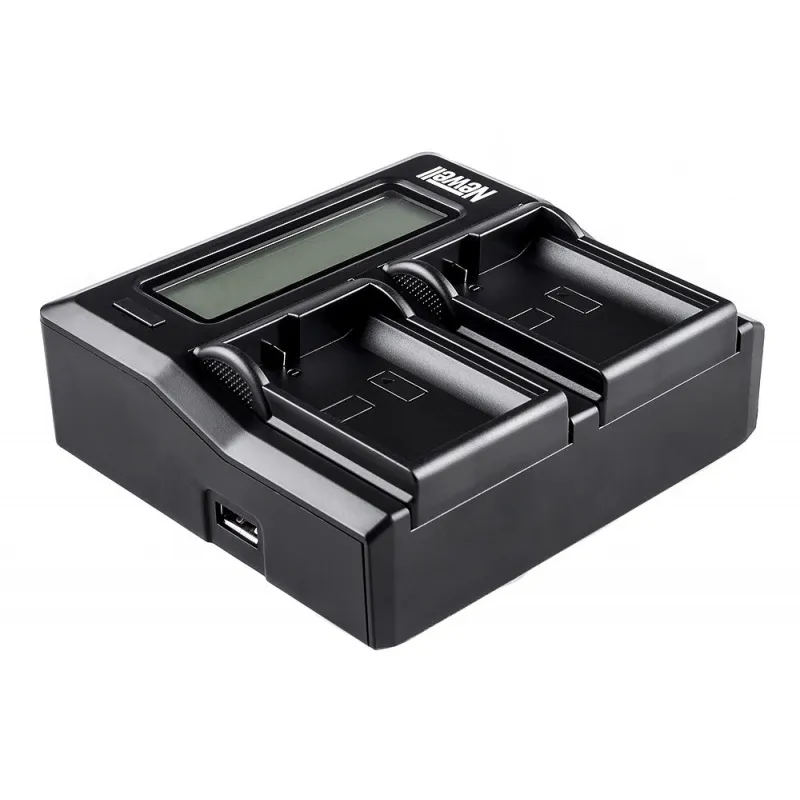

Built-in USB Charging Port

In addition to battery charging, the device includes a USB port capable of delivering 2100 mA, enabling it to charge smartphones, tablets, and power banks.

Specifications

• Power Supply:
  • AC 100-240 V; 50/60 Hz
  • DC 12-24 V; max 3000 mA
• Charging Current:
  • Normal (L): 1000 mA for single battery / 500 mA per battery when charging two simultaneously
  • Fast (H): 1500 mA for single battery / 800 mA per battery when charging two simultaneously
  • USB Output: 2100 mA
• Dimensions: 12.5 x 11 x 4.3 cm
• Weight: 290 g (excluding cables)

Compatibility

• Compatible with EN-EL15 batteries including Nikon system batteries, Newell branded batteries, and other compatible replacements.

Included in the Kit

• Newell DC-LCD dual-channel charger
• Mains power cable
• Car charger cable
