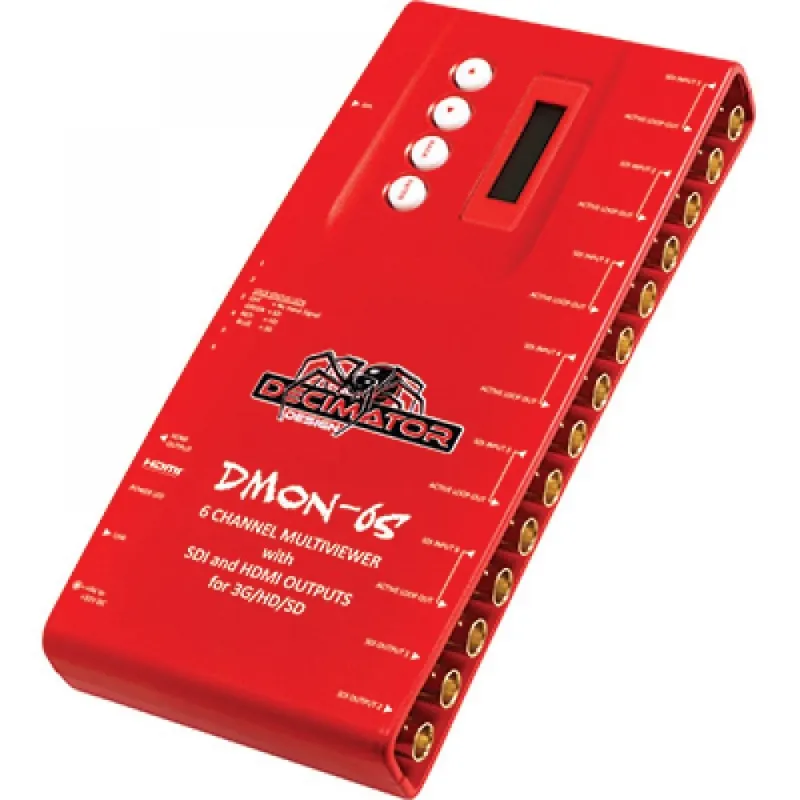

Decimator Design DMON-6S 6 Channel MultiViewer

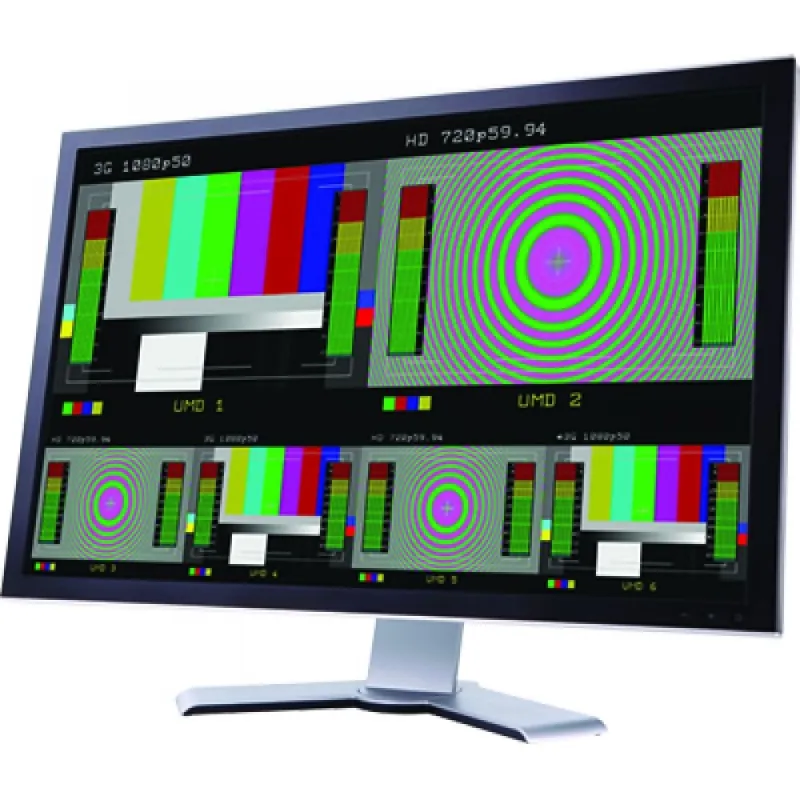

1 to 6 Channel MultiViewer with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts.

Features:
• New: Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
• Low cost miniature (3G/HD/SD)-SDI 1 to 6 channel Multi-Viewer or 6 to 1 input multiplexer
• 6 x (3G/HD/SD)-SDI active loop copies of each input
• Custom Layouts with various standard layouts
• 16 Character UMD overlay per window with individual enables, custom positioning and size
• 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
• Safe Action and Safe Title overlay per window with individual enables and adjustment
• Centre Cross overlay per window with individual enable
• Audio ID overlay
• Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
• Tally boxes allows for up to 4 Tallies per window
(Green, Red, Blue and Yellow)
• Load and restore Custom Layouts
• Fast switching between inputs using Full-Screen scaling
• Selectable output format in both Full-Screen and Multi-Viewer mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 6 x (3G/HD/SD)-SDI inputs with auto detection (6 Formats supported in total)
• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per window

SDI INPUT & OUTPUT FORMATS
3G:SMPTE 424M@2.97 and 2.967Gb/s
1080p@60/59.94/50HzHD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
1080i@60/59.94/50Hz
1080p/psf@30/29.97/25/24/23.98Hz
720p@60/59.94/50/30/29.97/25/24/23.98Hz SD:SMPTE 259M@270Mb/s
625i50
525i59.94
HDMI OUTPUT FORMATS
1080p@60/59.94/50Hz; 1080i@60/59.94/50Hz; 1080p@30/29.97/25/24/23.98Hz; 720p@60/59.94/50/30/29.97/25 ; 625i50 525i59.94
LED STATUS
Power; 6 × Signal lock and rate
POWER
+5V to +32V DC; Positie Centre Pin
LCD/BUTTONMENU OPTIONS
HDMI output type; Output Select; Multi-Viwer Output Format; Multi-Viwer Number of Windows; Multi-Viwer Layout; Multi-Viwer Audio Source; Multi-Viwer Reference; Full Screen is Scaled; Input Routin; GPI mode; Setup
INPUTS
6 × (3G/HD/SD)-SDI; Input Equalization > 100M using Belden 1694 ; USB for control and updates
OUTPUTS
6 × SDI (3G/HD/SD)-SDI Actie Loop-throughs; 2 × SDI (3G/HD/SD)-SDI; HDMI Type A
DIMENSIONS
220mm × 103.7mm × 29.5mm (8.7” × 4.1” × 1.2”)
