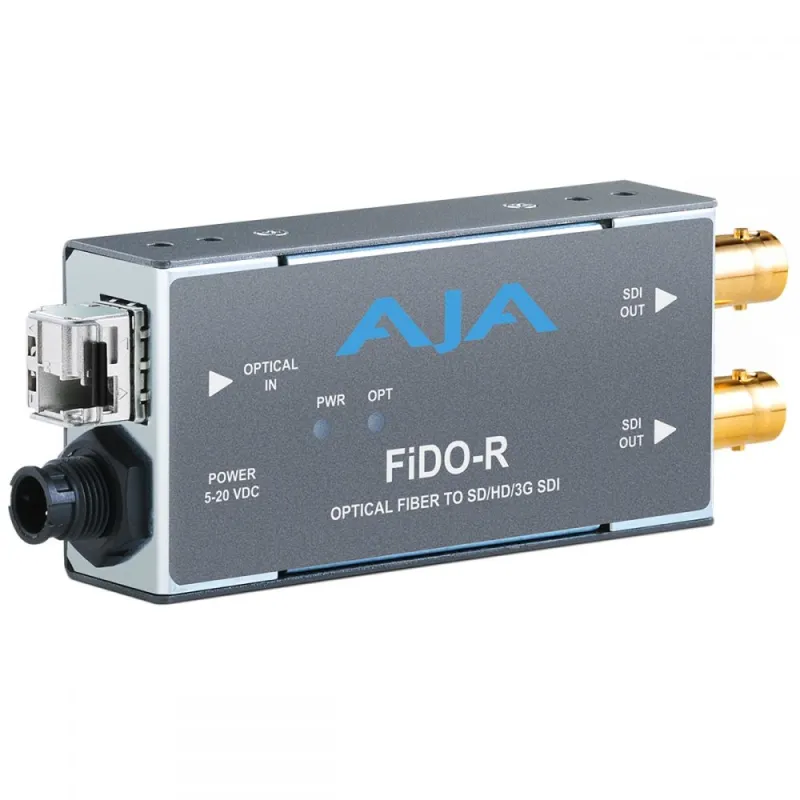

AJA FiDO-R-MM 1-Channel Multi-Mode LC Fiber to 3G-SDI Receiver
Condition: New product
Goods are not available at the moment
We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.
MasterFoto.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.
Or ask about:
AJA FiDO-R-MM 1-Channel Multi-Mode LC Fiber to 3G-SDI Receiver
FiDO-R-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode fiber optic cables - useful for eliminating ground loop problems. FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
Features:
• Simplex connection (LC connector)
• 3G/HD/SD-SDI output
• Dual, matching SDI outputs
• Uses 5-20VDC power (DWP-U-R1 universal power supply included)
• Five year warranty
Specifications
| Video Formats | 100 Mbps - 3 Gbps, format agnostic |
| Video Input Digital | 1-Channel Dual matching 3G-SDI Outputs, SMPTE-259/292/424 |
| 1-Channel Multi-Mode LC Fiber connector, SMPTE-297 | |
| Nominal Wavelength: 850 nm | |
| Optical Sensitivity: -15dBm (min) | |
| Video Output Digital | 1-Channel Dual matching 3G-SDI Outputs, SMPTE-259/292/424 |
| Reclocking | 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select |
| Reclocking | 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select |
| All other rates are passed through and not reclocked | |
| Size (w x d x h | 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm) |
| Power | 2 watts max |
| Uses 5-20VDC power (AJA power supply model DWP-U-R1 included) | |
| Safe Operating Temperature | 0 to 40 degrees C (32 to 104 degrees F) |
| Safe Storage Temperature (Power OFF) | -40 to 60 degrees C (-40 to 140 degrees F) |
| Operating Relative Humidity | 10-90% noncondensing |
| Operating Altitude | <3,000 meters (<10,000 feet) |
| Type of Product | Blackmagic Design |
| Accessories for video cameras | pārveidotāji |
