Audio Embedding into SDI Video

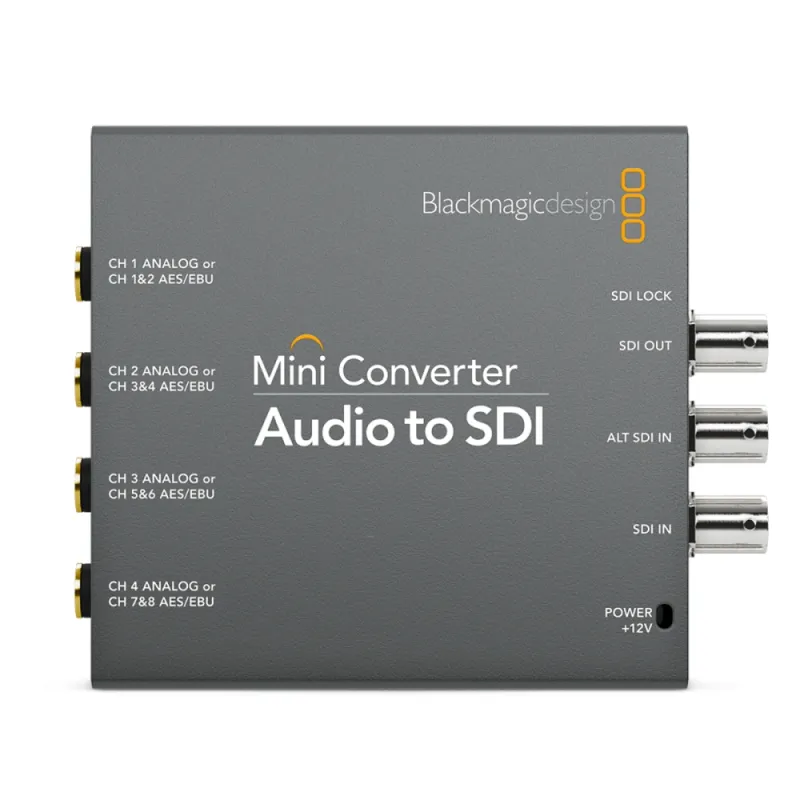

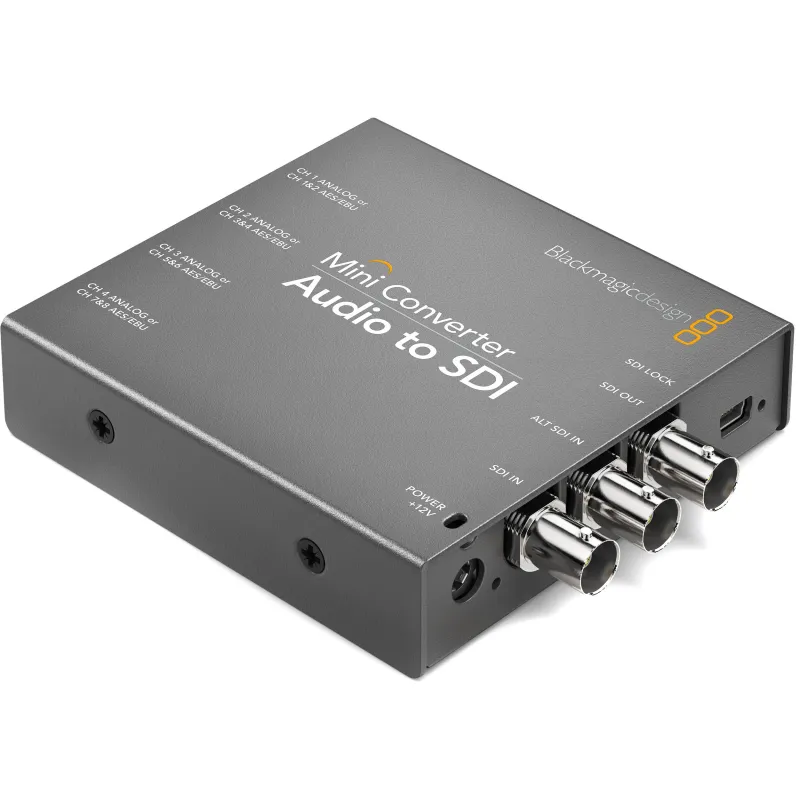

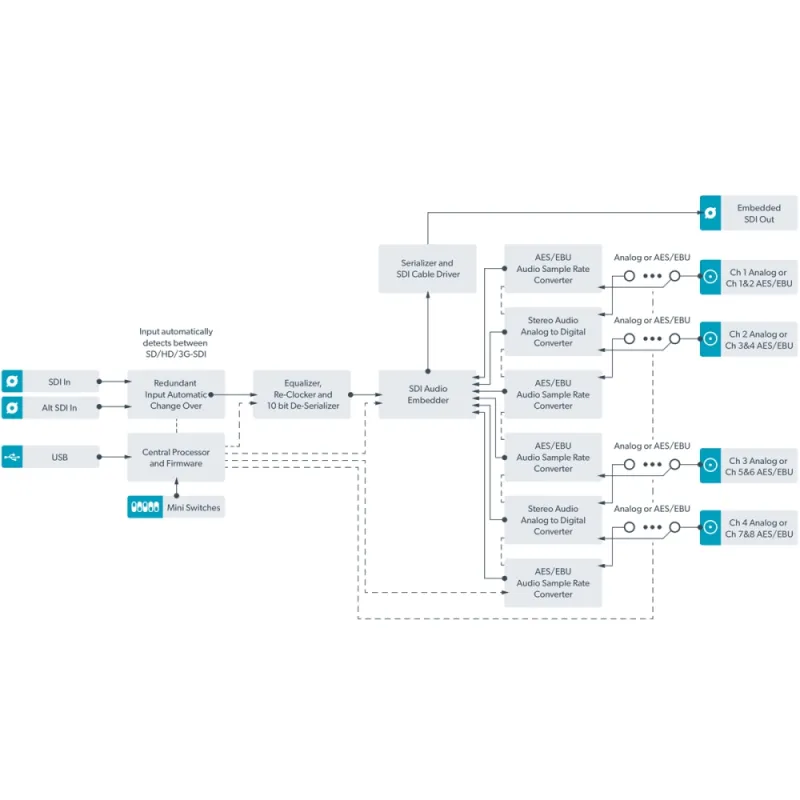

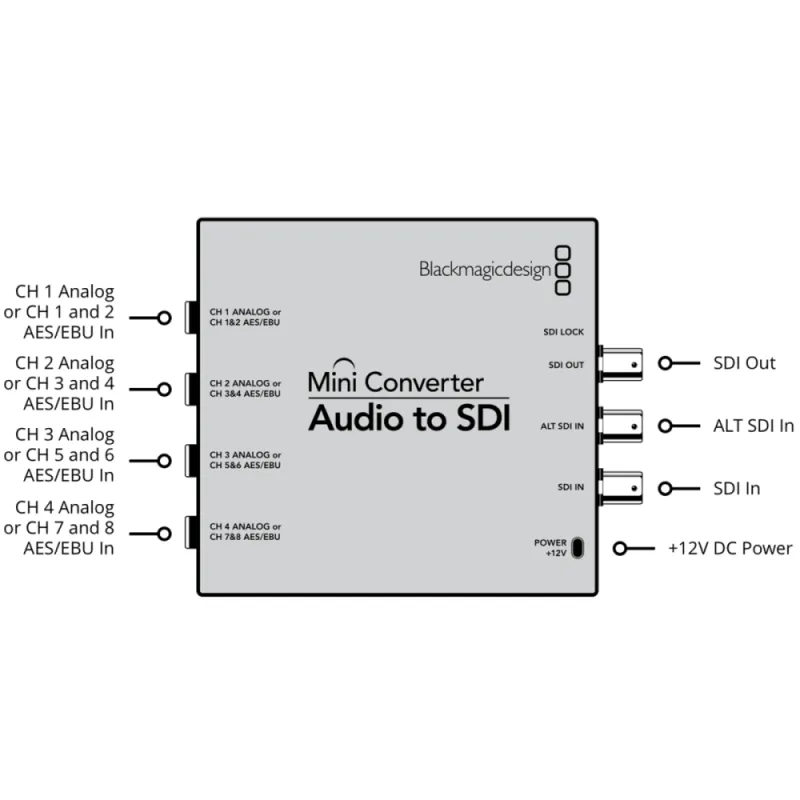

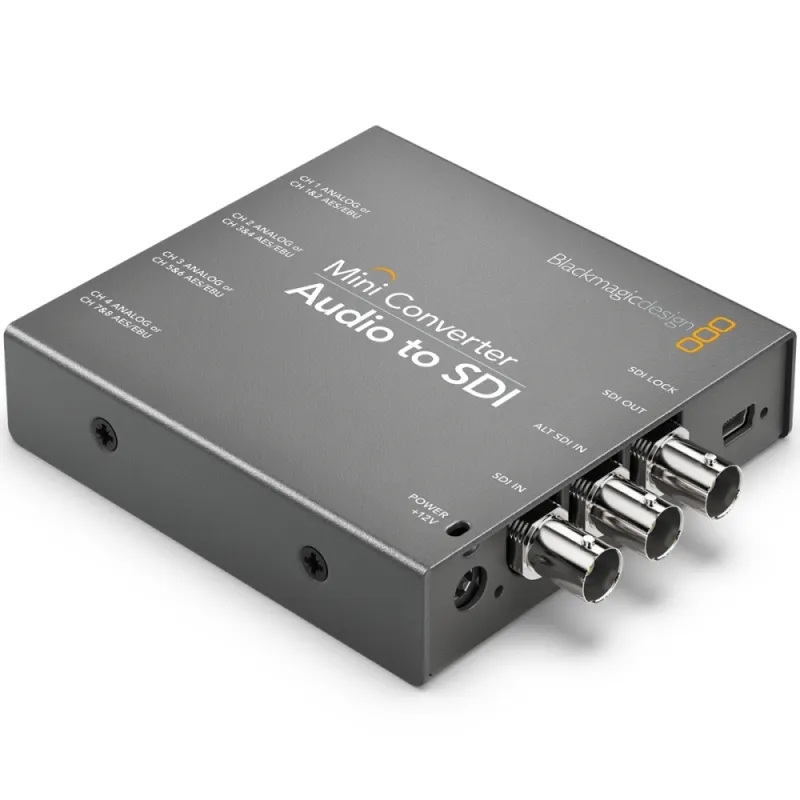

The Blackmagic Design Mini Converter Audio to SDI (BM-CONVMCAUDS) enables embedding of 4 channels of professional balanced analog audio or 8 channels of AES/EBU digital audio into any SDI video connection. This allows integration of audio from devices such as mixers and analog decks into SDI signals, facilitating use with SDI routers, decks, or adding extra audio channels to video converters.
Key Features
- SDI Video Input: Switchable between SD, HD, and 3 Gb/s SDI formats.
- SDI Video Outputs: Automatically matches the input video format (SD, HD, or 3 Gb/s SDI).
- Analog Audio Inputs: 4 channels of professional balanced analog audio via standard 1/4 inch jack connectors.
- AES/EBU Digital Audio Inputs: 4 channels of professional balanced digital audio via standard 1/4 inch jack connectors.
- SDI Redundant Input: Automatically switches to backup input if the main SDI input signal is lost.
- Multi-Rate Support: Auto detection of HD or standard definition SDI inputs.
- Reclocking: Yes, to maintain signal integrity over long cable runs.
- SDI Compliance: Supports SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, and ITU-R BT.601 standards.
- SDI Video Sampling and Color Precision: 4:2:2 sampling with YUV color space.
- SDI Audio Sampling: Television standard 48 kHz sample rate at 24-bit depth.
- SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, and 3 Gb/s SDI formats.
- Supported SDI Formats: 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, and 720p60.
- Software Control and Updates: Via USB 2.0 high speed (480 Mb/s) for configuration and firmware upgrades on Mac OS X and Windows.

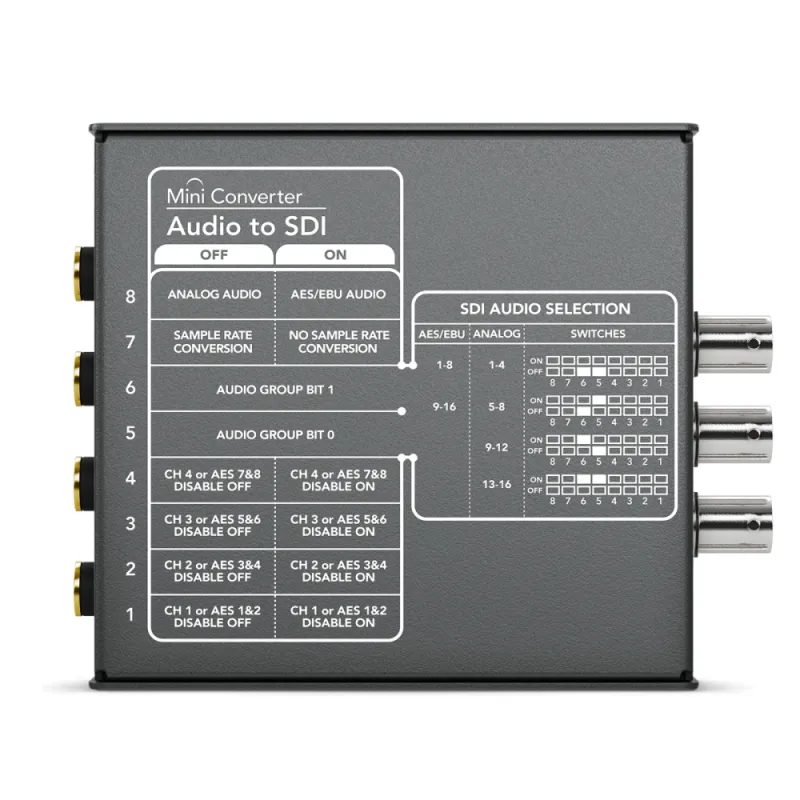

- Settings Control: Configurable via mini switches or USB software.
- Power Supply: Includes +12V universal power supply with international socket adapters and cable tie point.
- Power Consumption: 8.4 Watts.
World's Most Advanced Mini Converters
Blackmagic Mini Converters are designed with the highest quality components and connectors, offering automatic switching between SD, HD, and 4K models supporting up to Ultra HD resolutions with 6G-SDI video standards. They provide low SDI jitter and SDI re-clocking, enabling use of long SDI cable lengths while maintaining pristine image quality.
Ease of Use
These converters are compact, affordable, and user-friendly. Settings can be quickly changed using built-in mini switches with pin configuration diagrams printed on the back, eliminating the need for manuals. They use standard connections, allowing users to utilize their own cables for convenience and cost savings.
Latest SDI Technology
The 4K models feature 6G-SDI technology, operating at four times the data rate of standard HD-SDI. This technology is fully compatible with all SD-SDI and HD-SDI equipment, automatically detecting and switching between video input formats.
Included Items
- Blackmagic Mini Converter Audio to SDI unit
- +12V universal power supply with international adapters
