The Decimator Design DMON-16SL is a portable 16 channel MultiViewer with HDMI output and custom layouts.

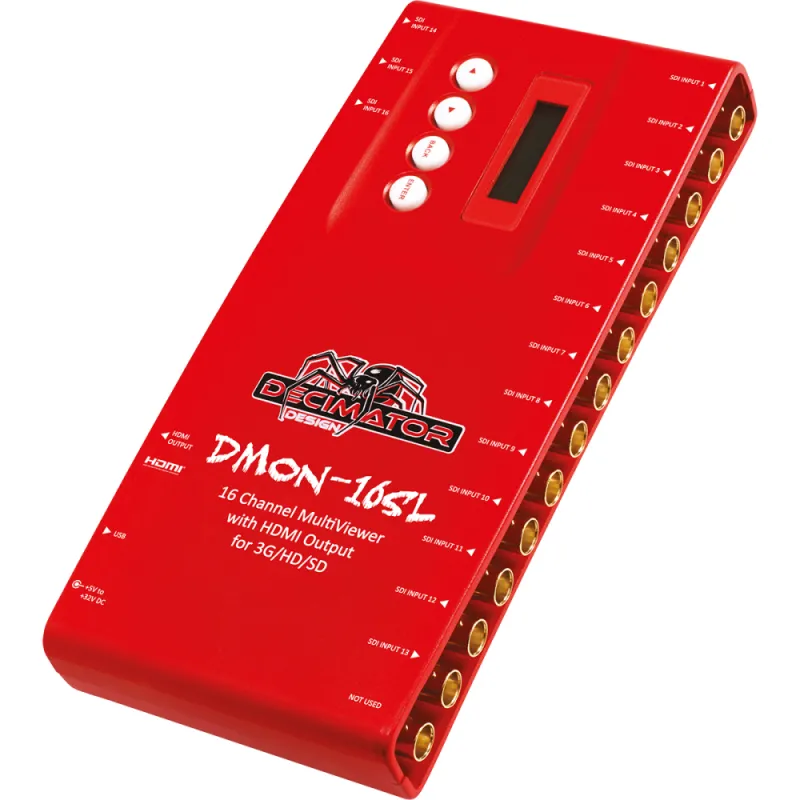

Decimator Design DMON-16SL 16 Channel MultiViewer
Product ID: 9407
SKU: 9407
Ean: 5060417390137
Condition: New product
Manufacturer: Decimator Design
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Blackmagic Design |
| Accessories for video cameras | pārveidotāji |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
Features
- Support for both 3G level A and B on the inputs
- Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer
- Custom Layouts with various standard layouts
- 16 Character UMD overlay per window with individual enables, custom positioning and size
- Audio ID overlay
- Load and restore Custom Layouts
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per window
- Pass-Through mode allowing any of the 16 inputs to be selected and routed to the HDMI output
- The DMON-16SL is a truly portable converter, with an easy to use LCD and button control system.
Delivery Contents
- DMON-16SL
- USB port for control and firmware updates
- Robust Aluminium box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
SDI Input Formats
- 3G SMPTE 424M: 2.97 and 2.967Gb/s
- 1080p60/59.94/50Hz
- HD SMPTE 292M/274M/296M: 1.485 and 1.435Gb/s
- 1080i60/59.94/50Hz
- 1080p/psf30/29.97/25/24/23.98Hz
- 720p60/59.94/50/30/29.97/25/24/23.98Hz
- SD SMPTE 259M: 270Mb/s
- 625i50
- 525i59.94
HDMI Output Formats
- 1080p60/59.94/50Hz
- 1080i60/59.94/50Hz
- 1080p30/29.97/25/24/23.98Hz
- 720p60/59.94/50/30/29.97/25
- 625i50
- 525i59.94
Power
- +5V to +32V DC; Positive Centre Pin
LCD/Button Menu Options
- HDMI output type
- Output Select
- Multi-Viewer Output Format
- Multi-Viewer Number of Windows
- Multi-Viewer Layout
- Multi-Viewer Audio Source
- Multi-Viewer Reference
- Full Screen is Scaled
- Input Routing
- Setup
Inputs
- 16 (3G/HD/SD)-SDI
- Input Equalization > 100M using Belden 1694A
- USB for control and updates
Outputs
- HDMI Type A
Dimensions
- 220mm x 103.7mm x 29.5mm (8.7" x 4.1" x 1.2")
