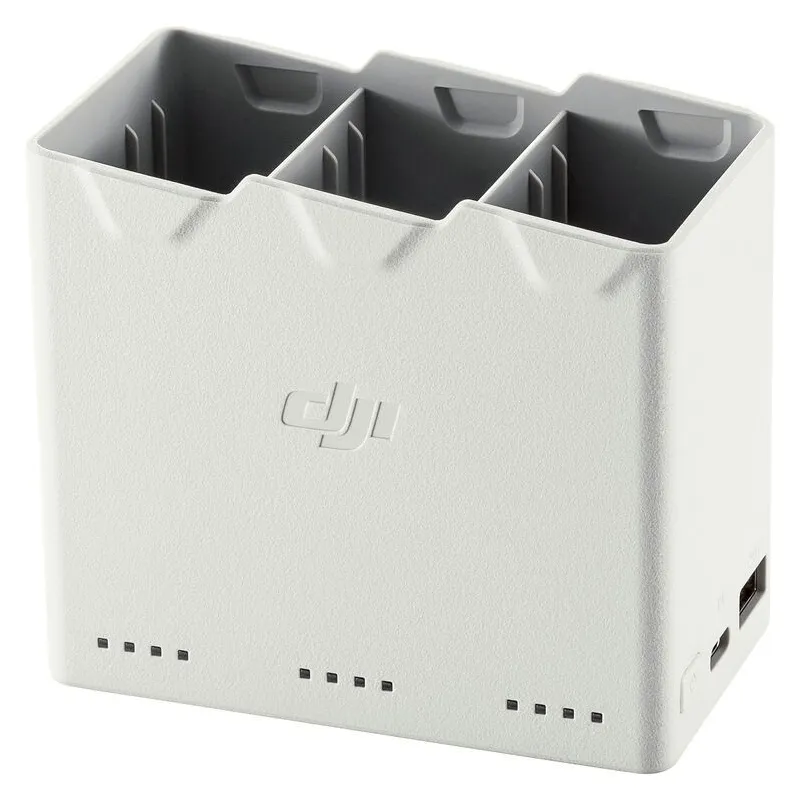

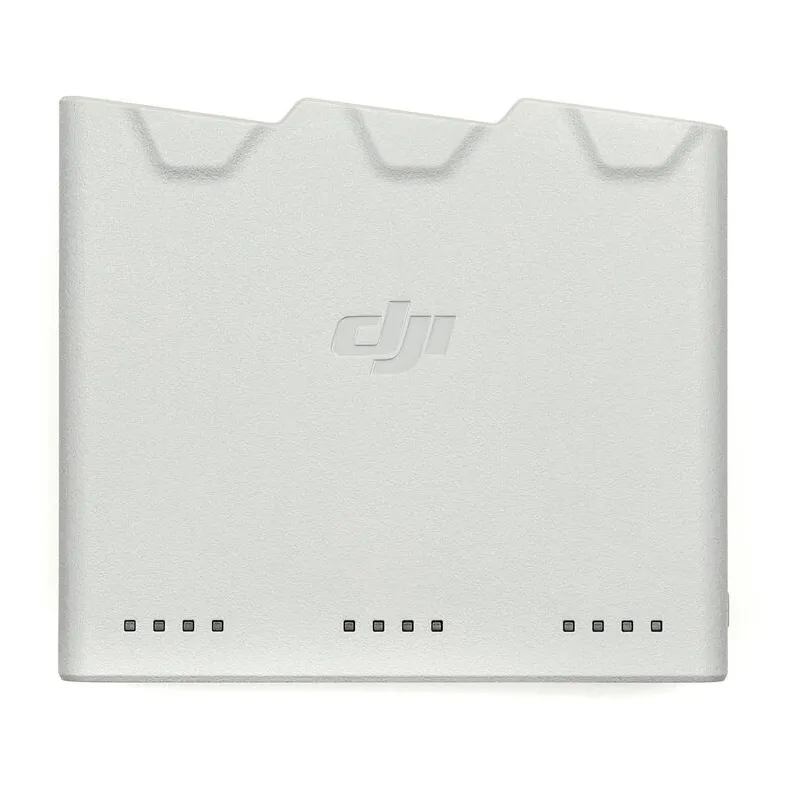

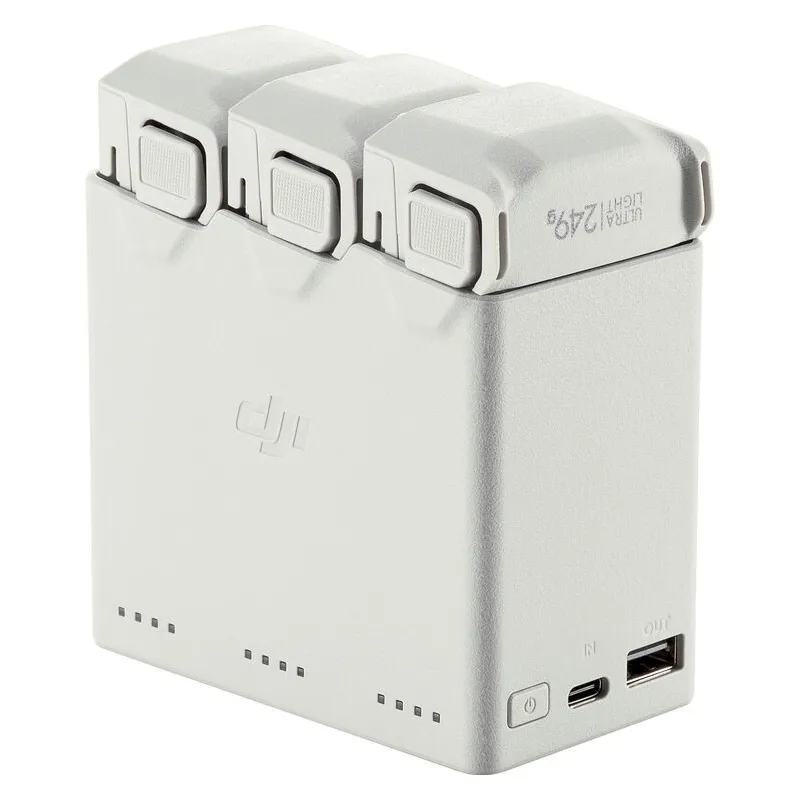

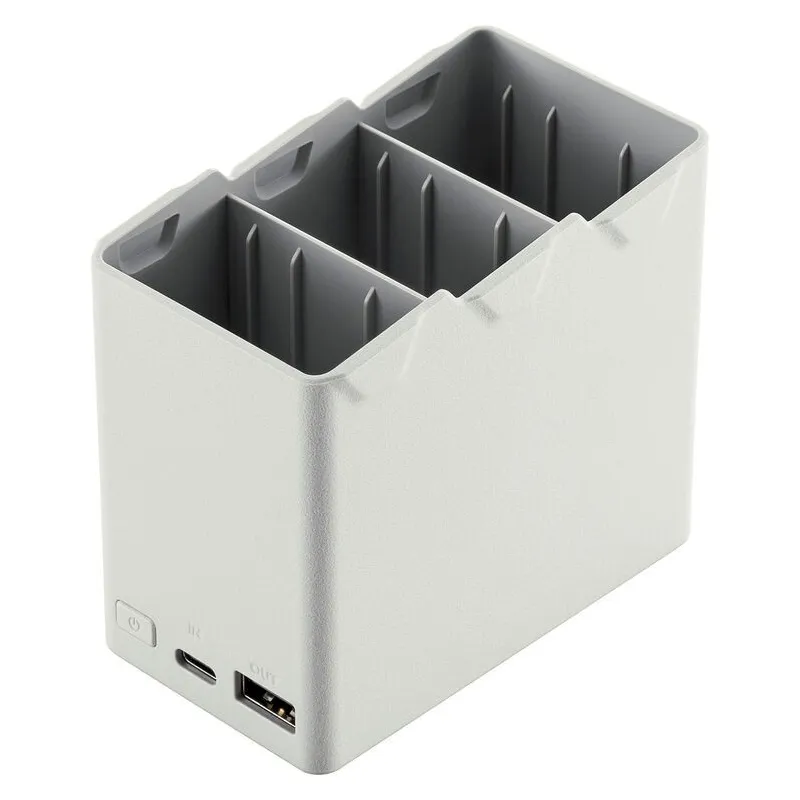

DJI Mini 3 Pro Two-way Charging Hub

The DJI Mini 3 Pro Two-Way Charging Hub is a versatile and intelligent charging solution designed to efficiently manage power for your Mini 3, Mini 3 Pro, and Mini 4 Pro flight batteries. Capable of charging up to three batteries in sequence, it also doubles as a power bank to recharge mobile devices, making it an essential accessory for extended flying sessions and travel.

Recharge and manage your flight batteries with ease using the DJI Mini 3 Pro Two-Way Charging Hub. Designed for DJI Mini 3, Mini 3 Pro, and Mini 4 Pro Intelligent Flight Batteries (including Plus versions), this compact hub intelligently charges up to three batteries in sequence, prioritizing the battery with the highest remaining power so you can get back in the air faster.

Beyond battery charging, the hub features a USB-A output that allows you to power smartphones, remote controllers, or other mobile devices. When not connected to an external power source, inserted batteries can be used as a power bank, with intelligent discharging that uses the lowest-charge battery first. A dedicated function button lets you switch charging priority between batteries and connected devices. Built-in LED indicators clearly display charging status, battery levels, and charging speed. Please note that charging cables and a USB PD-compatible power adapter are not included.

Key Features

• Designed for DJI Mini 3, Mini 3 Pro, and Mini 4 Pro batteries
• Charges up to three Intelligent Flight Batteries in sequence
• Intelligent charging and discharging management
• USB-A port for charging mobile devices
• Batteries can be used as a power bank when unplugged
• Switchable charging priority via function button
• Multifunction LED status indicators
• Compact and travel-friendly design

• DJI Mini 3 Pro Two-Way Charging Hub
  (Charging cables and power adapter not included)

• Compatibility DJI Mini 4 Pro / Mini 3 / Mini 3 Pro (Intelligent Flight Battery & Battery Plus)
• Number of Battery Bays 3
• Charging Modes Sequential
• Power I/O
  • 1 USB-C input
  • 1 USB-A output
• Battery Output Voltage 5.12 VDC at 3 A
• Recharge Time Approx. 3.4 hours (depending on charger and batteries)
• Operating Temperature 5 to 40°C (37 to 104°F)
• Indicators LED status lights

Bidirectional Charging Hub for DJI Mini 3 / 3 Pro / 4 Pro Batteries

The bidirectional charging hub can sequentially charge the controller and three batteries. It can also be used as a portable power source and store batteries. With the DJI 30W USB-C charger, three DJI Mini 3 Pro intelligent batteries can be fully charged in just three hours, significantly improving charging efficiency.

Specifications

• Model CHX162-30
• Recommended Charger DJI 30W USB-C charger or other USB chargers
• Input 5 V, 3 A / 9 V, 3 A / 12 V, 3 A
• Output (USB) 5 V, 2 A
• Operating Temperature Range 5 to 40 °C (41 to 104 °F)
• Charging Time Three intelligent batteries can be fully charged in about 3 hours.
• Compatibility DJI Mini 3, DJI Mini 3 Pro, DJI Mini 4 Pro.
