The Portkeys LH5C is a 5.4-inch monitor with 800nits brightness and HDMI connectivity.

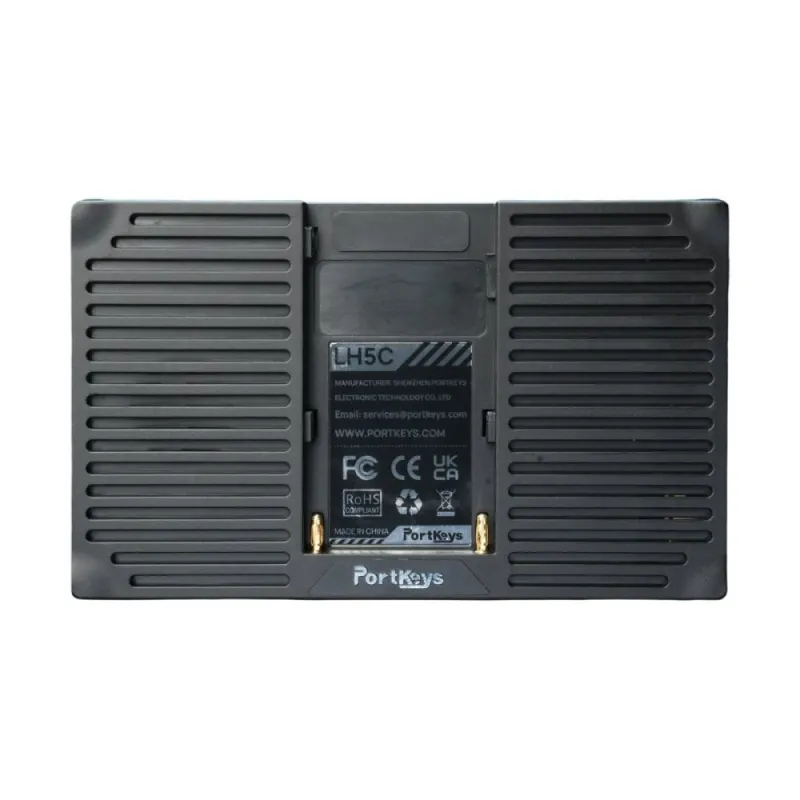

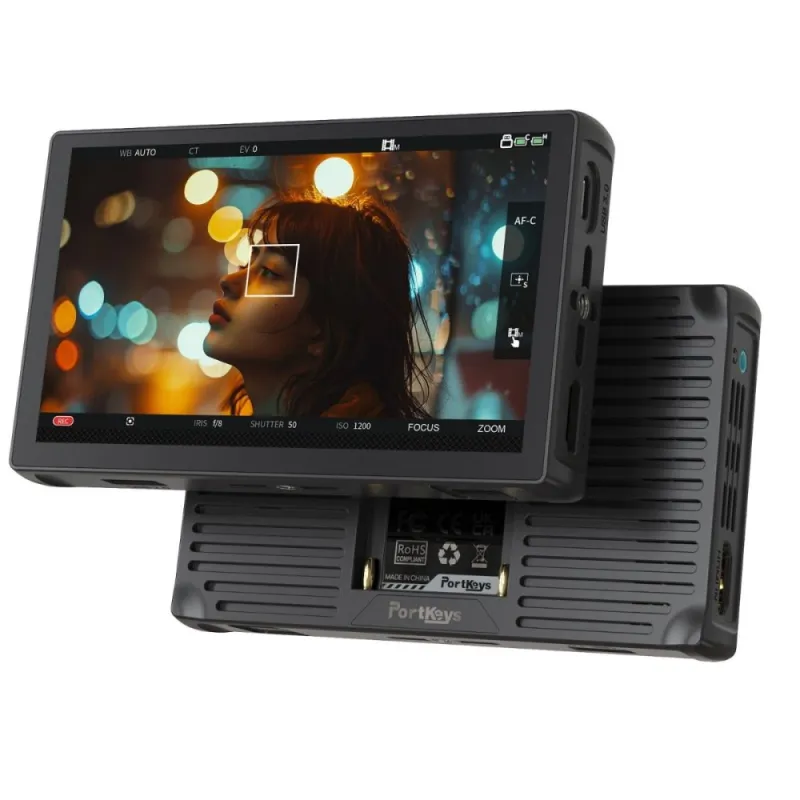

Portkeys LH5C - 5.4-inch monitor, 800nits brightness, HDMI input/output

Product ID: 14667
€ 199,44 tax incl.

Delivery in 8 - 14 business days

Available from supplier: 1 Item

SKU: 14667
Ean: 9345750849983
Condition: New product
Manufacturer: PortKeys
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductLCD Monitor
Battery typeSony NP-F970
LCD monitorsmonitors
ConnectorUSB-C charging/connection
ConnectorHDMI
send a message

Quick order


Available from warehouse

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Portkeys LH5C - 5.4-inch monitor, 800nits brightness, HDMI input/output

Portkeys LH5C - 5.4-inch monitor, 800nits brightness, HDMI input/output

The Portkeys LH5C is a 5.4-inch monitor with 800nits brightness and HDMI connectivity.

Write a review

Product details

Features

  • 5.4-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1152 and a 1000:1 contrast ratio
  • Maximum brightness of 800nits, 85 DCI-P3 coverage
  • 1 x 4K HDMI input, 1 x HDMI output
  • Professional monitoring tools: RGB and Luma Waveform, Anamorphic Image De-Squeeze, Peaking, ARRI False Color
  • 3D LUT monitoring and HDMI output capabilities
  • Built-in Sony NP-F style battery plate
  • USB-C 3.0 5V power input port
  • Low power draw of only 7.5W
  • Lightweight and rugged ABS + PC housing, only 178g/6.3oz

Technical Specifications

  • Overall Dimensions: 135.1 x 82.5 x 22mm
  • Weight: 178g
  • Material: ABS + PC
  • Mounting Points: Bottom 1/4" screw hole *1, Side 1/4" screw hole *1
  • Input Voltage: 7-24V
  • Maximum Power Consumption: 7.5W
  • Fan: Built-in Silent Fan

Screen Specifications

  • Screen Size: 5.4"
  • Brightness: 800nits
  • Color Gamut: 85 P3
  • Resolution: 1920x1152
  • Contrast Ratio: 1000:1
  • Viewing Angle: 80 / 80 / 80 / 80

Signal Input

  • HDMI: 4096x2160p at various frame rates, 1920x1080p at various frame rates, 1280x720p at various frame rates

Signal Output

  • HDMI OUT: 1920x1080p at 60Hz
  • 3D LUT Output
  • UI Output
  • Image brightness, tint, contrast adjustment output
  • Vertical shooting with stretch effect

Power Input

  • Battery Compatibility: Sony NP-F970/F960/F750/F550
  • Power Supply Voltage: 7-24V

Audio Interface

  • Audio Output: 3.5mm Headphone Jack

Delivery Content

  • Portkeys LH5C
  • Safety Box
  • MH-2 Mount
  • Type-C Control Cable
  • Sunshade
  • Mini Flash Drive
  • Protective Rubber Cover
  • Customer Feedback Card
  • LANC Control Cable
