SEETEC LUT215 21.5 inch monitor
AI ASSISTANT CHAT
Or ask about:
| Type of Product | LCD Monitor |
| LCD monitors | monitor |
| Connector | HDMI |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Professional Monitoring Tools
SEETEC LUT215 full HD broadcast monitor with 4K HDMI for native display of up to 2160p60. The machined metal design includes a built-in control panel for using features such as the built-in 3D LUTs, histogram, 16-ch embedded audio meters, focus assist, false colors, overexposure, time code, picture in picture, anamorphic mode, image zoom, center marker, safety marker, ratio marker, check field, image freeze, adjustable Gamma selection, and more, either from the front panel or via GPI control!
21.5 IPS LCD, Full HD Resolution
Broadcast quality, allows you to see every pixel. The SEETEC LUT215 is equipped with a 21.5 inch IPS LCD panel. The IPS LCD panel has a resolution of 1920 x 1080, a contrast ratio of 30001, and an LED backlight with a brightness of 250cd/m², providing accurate video reproduction. It combines a wide 178-degree viewing angle in both horizontal and vertical directions, ensuring easy viewing by reducing color changes due to the viewing angle.
True Color. Professional Color Calibration
Use Rec.709 color standard. SEETEC employs the professional Rec.709 HD color standard and utilizes color calibration technology, achieving efficient monitor calibration for accurate color reproduction without distortion, showing the real image when shooting video.
Accurate Color Reproduction
SEETEC monitor supports ITU standards and HD video Rec.709 standard consistent color space, utilizing advanced image processing technology for clear image presentation and natural color, ensuring accurate color reproduction to reflect the physical nature of shooting, enabling users to evaluate the quality of various input video signals accurately.
Professional Front Control Panel
When busy at the shooting scene, easy control of the equipment is essential. The LUT215 meets this need with one-button source switching, custom shortcuts, and quick adjustments for brightness, contrast, saturation, and volume. The buttons feature night light technology, indicating the current input signal and used shortcut keys.
Professional Monitoring Quality

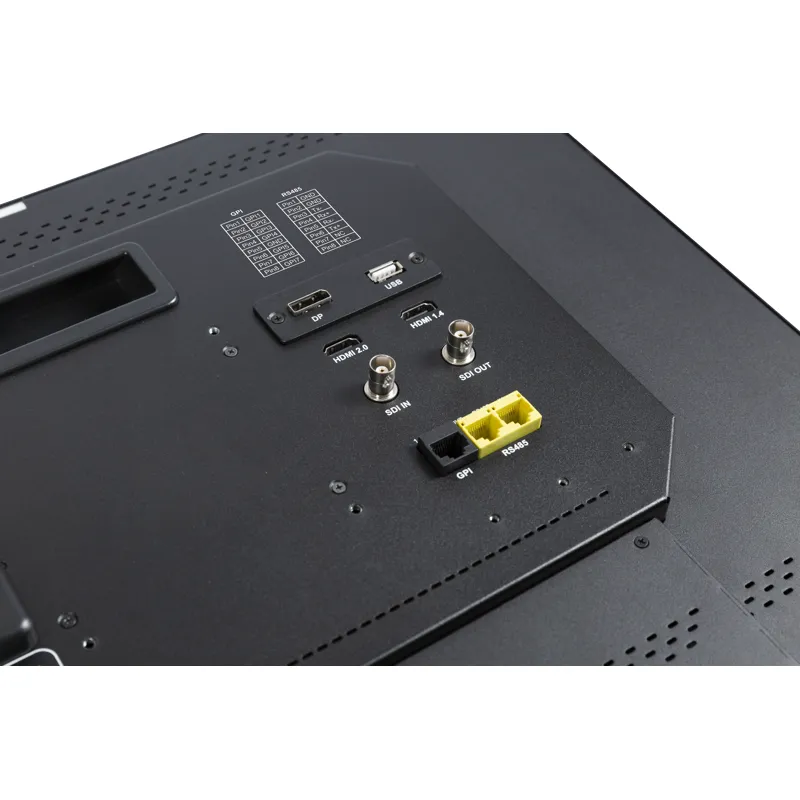

SEETEC LUT215 is a high-quality monitor versatile enough for broadcast facilities, mobile live production, or on-set feature film production! It is equipped with 3G-SDI, HDMI2.0, HDMI1.4, RS485, GPI, and DP interfaces, suitable for various signal formats.
4K HDMI/DisplayPort Inputs
HDMI 2.0 & DisplayPort 1.2 support 4K 60Hz signal input. HDMI 1.4 supports 4K 30Hz signal input.
Built-in De-log 3DLUTs
User 3DLUT cube upload. The monitor has built-in multi-camera logs to Rec 709 conversion 3DLUTs, including C-log standard, C-log full, S-log2, S-log3, BMD-4Klog. It supports user 3DLUT cube files (17x17x17, 33x33x33, 65x65x65) upload via USB, convenient for color creation during post-production monitoring. Users can store up to 16 instantly selectable 3D LUTs.
16-Channel Audio Level Meters
The monitor can de-embed audio from SDI and HDMI, supporting the selection of any 2 channels audio output via speaker or 3.5mm headphone jack. Under SDI audio, it supports a maximum of 16-ch embedded audio meters display, with options to display only 2, 4, 8, or all 16 channels. Under HDMI audio, only 2 channels audio displays are supported.
Multi Window Modes
PIP/PBP Modes. The picture-in-picture function allows monitoring of two signals simultaneously, displayed for different formats, resolutions, frame rates, or input types for comparison, with the option to display a loading LUT effect. Users can adjust the picture-in-picture size, horizontal and vertical position, and rotate the picture.
UMD and Text-Tally Display
TSL 3.1/4.0 and Image Video Protocol. LUT215 supports UMD and Text-Tally display of TSL 3.1/4.0 and Image Video protocol, with 0-126 TSL address selection and a maximum of 16 letters displayed. UMD inputs via RS485 port and outputs via RS485 port.
Tally Lights
GPI controls Red Tally and Green Tally, reminding the photographer to enter the recording state and enhancing the convenience of TV shooting quasi-professional technology in your creation.
Hassle-free Power

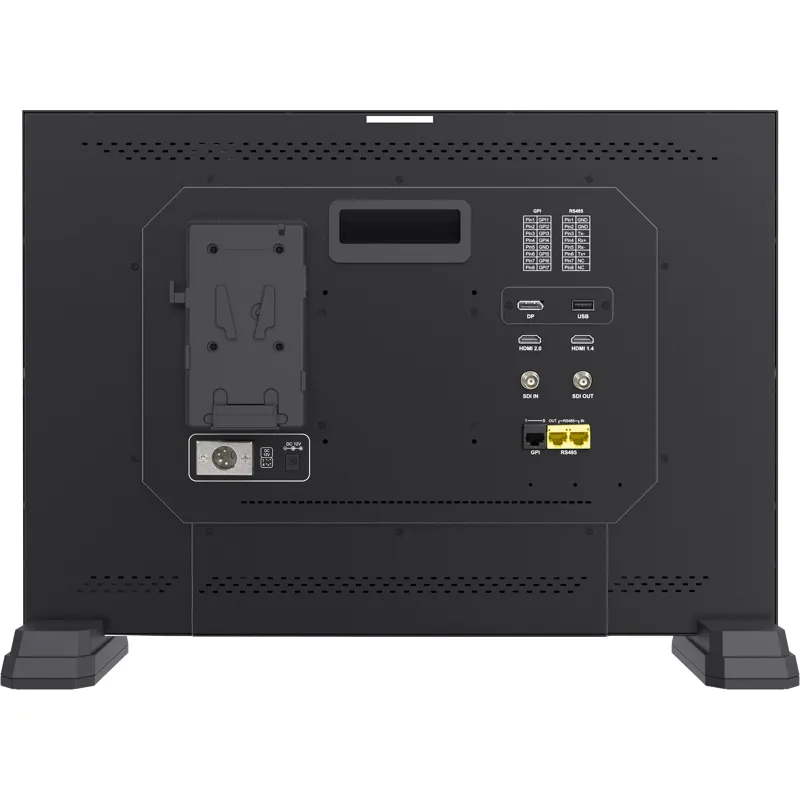

Monitoring anywhere you need it. The LUT215 can be powered in two ways: with a DC adapter or lithium batteries. It has a flexible battery system supporting V battery plate (standard) and Anton Bauer battery plate of your choice.
Heavy Duty Metal Construction
Machined aluminum design built to last! The full metal shell enhances durability and addresses heat dissipation issues.
Key Features
- 3D LUT
- Time Code
- GPI Control
- Support IMD 3.1/4.0 Protocol
- UMD display, with 0-126 TSL address selection, Max 6 letters displayed
- Histogram
- Embedded Audio (16 channels in SDI; 2 channels in HDMI)
- Picture in Picture
- Focus Assist
- False Colors
- Over Exposure
- Anamorphic Mode
- Center Marker
- Safety Marker
- Over Scan
- Ratio Marker
- Marker Color
- Check Field
- Image Freeze
- Color Temperature Adjustment
- Custom Zoom
- Aspect Ratio
In the box
- LUT215 monitor
- 3A DC Power Adapter
- V-Mount Battery Plate
- Mini HDMI Cable
- Stand Feet
- Operation Manual
