Swit S-1073F(LUX) 7-inch LCD Monitor
AI ASSISTANT CHAT
Or ask about:
| Type of Product | LCD Monitor |
| Battery type | V-tipa baterijas |
| LCD monitors | monitor |
| Connector | HDMI |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Overview

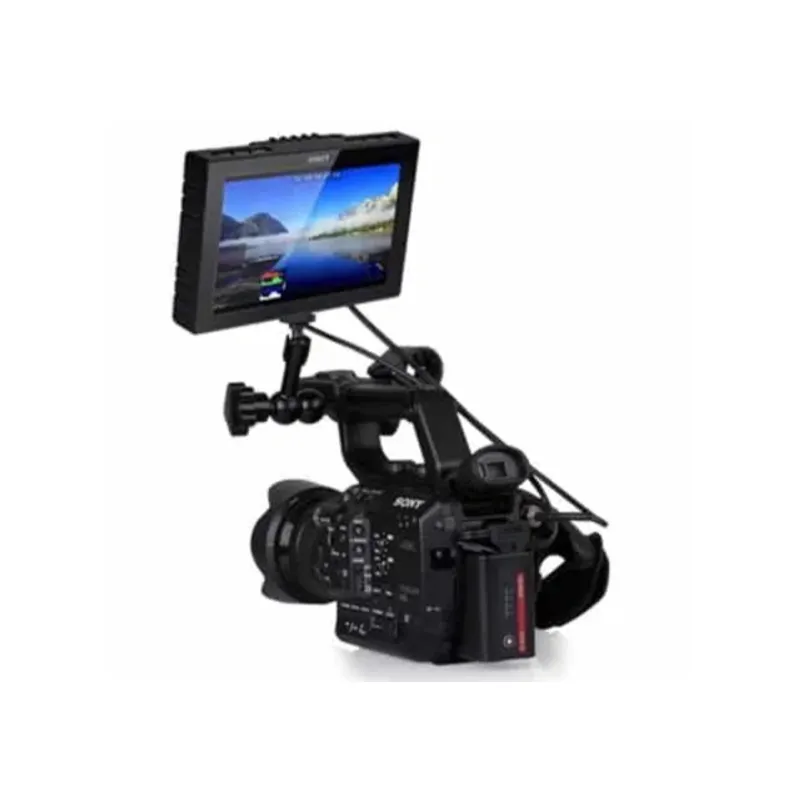

The SWIT S-1073F (LUX) is a professional 7-inch on-camera LCD monitor featuring a 1920x1200 resolution, 2K/3G/HD/SD-SDI and HDMI inputs, built-in HDMI-to-SDI conversion, and advanced monitoring tools including waveform, vectorscope, focus assist, and 3D-LUT support. Delivered in a luxury kit with rich accessories and hard case (no battery plate included), it is designed for demanding broadcast and cinema production.
Performance
The SWIT S-1073F (LUX) is a high-performance 7-inch LED backlit LCD monitor engineered for professional cinematography and broadcast workflows. With a native 1920x1200 resolution, 1000:1 contrast ratio, and 400 cd/m² brightness, it delivers sharp and accurate image reproduction with wide 160° viewing angles.
Connectivity
Equipped with dual 2K/3G/HD/SD-SDI inputs, HDMI 1.3 input, composite (CVBS), and both SDI and HDMI loop outputs, the S-1073F ensures maximum compatibility with modern and legacy camera systems. Its built-in HDMI-to-SDI converter enables seamless signal integration into SDI-based production pipelines. Embedded audio from SDI (up to 16 channels) and HDMI (2 channels) can be monitored via the 3.5mm headphone jack with on-screen audio meters.
Monitoring Features
For precise exposure and color control, the monitor includes adjustable focus assist (red/blue), zebra, false color, waveform, vectorscope, histogram (R/G/B/Y), R/G/B/Mono display modes, H/V delay, AFD, and multiple aspect ratio markers (4:3, 16:9, 15:9, 1.85:1, 2.35:1). Timecode display supports LTC, VITC1, and VITC2 formats, and dual tally via GPI is available.
3D-LUT Support
The S-1073F supports built-in Log-to-Rec.709 conversions (Log-C, C-Log, S-Log3, V-Log, J-Log1, RedLogFilm) and allows importing custom 17x17x17 3D-LUTs via USB (.cube format). Power options are flexible via DC input (6.5-36V) or optional battery plates (V-mount, Gold-Mount, NP-F, BP-U, Canon, Panasonic, JVC types; plate not included in this version).
Included Accessories
- SWIT S-1073F Monitor
- Hard carrying case
- Folding sun hood
- D-Tap to DC cable
- AC Power Supply (110-230V)
- Adjustable mounting arm with 1/4 screws & cold shoe
- HDMI cable
- Right-angle BNC SDI cable
- Screen protector
- (Battery plate optional, not included in this version)
Specifications
- Display: 7-inch, 1920x1200 resolution
- Brightness: 400 cd/m²
- Contrast: 1000:1
- Viewing Angle: 160° H/V
- Video Inputs: 2 x 2K/3G/HD/SD-SDI, 1 x HDMI 1.3, 1 x Composite (CVBS)
- Video Outputs: 1 x SDI loop / HDMI converted output, 1 x HDMI loop output
- Audio: 3.5mm headphone output, 16-ch SDI / 2-ch HDMI embedded audio meters
- Power: DC 6.5-36V, Max consumption 12W
- Dimensions: 184 x 120 x 33 mm
- Weight: 610 g
