The SWIT CM-S73H(LUX) is a 7-inch 3000nits 4K monitor ideal for outdoor use.

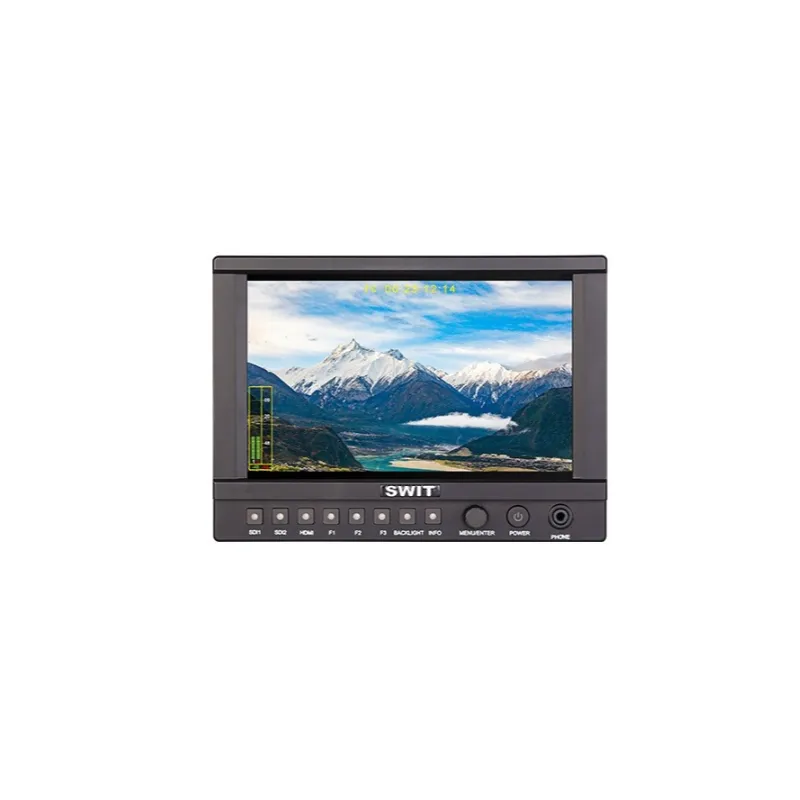

Swit CM-S73H(LUX) 7 Super Bright 3000nits 4K Monitor

Product ID: 53226
€ 1159,45 tax incl.
20-30
SKU: 53226
Model: CM-S73H(LUX)
Ean: 6948193506616
Condition: New product
Manufacturer: Swit
1159.45
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductLCD Monitor
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
    • Lease
send a message

Quick order


20-30

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Swit CM-S73H(LUX) 7 Super Bright 3000nits 4K Monitor

Swit CM-S73H(LUX) 7 Super Bright 3000nits 4K Monitor

The SWIT CM-S73H(LUX) is a 7-inch 3000nits 4K monitor ideal for outdoor use.

Write a review

Product details

Overview

The SWIT CM-S73H(LUX) is a 7-inch ultra-bright 3000nits 4K LCD monitor designed for professional video production. Featuring 1920x1200 resolution, HDR support, SDI/HDMI inputs and loop outputs, embedded audio meters, focus assist, and on-screen TALLY/GPI, it provides full monitoring control for studio and field use.

The SWIT CM-S73H(LUX) 7" Super Bright 4K Monitor delivers 3000cd/m² brightness, making it ideal for outdoor and high-ambient-light shooting conditions. Its 1920x1200 FFS LCD panel offers excellent color fidelity with 16.77 million colors, wide 160° viewing angles, and adjustable 16:9/4:3 aspect ratios.

Key Features

  • 7" FFS LCD, 1920x1200 resolution
  • Super bright 3000cd/m² panel for outdoor use
  • HDR compatible (PQ / HLG / S-log3)
  • SDI & HDMI input/output with loop-through
  • Embedded 16-channel audio meters with selectable output
  • Focus assist, Peaking, Zebra, False color, R/G/B/Mono
  • On-screen TALLY display & GPI interface
  • User 3D LUT import via USB
  • Zoom, aspect ratio markers, H/V delay, AFD, Timecode
  • Supports V-Mount, Gold-Mount, or DV battery plates

Specifications

Display

  • Size: 7 inches
  • Display Area: 151.2 x 94.5 mm
  • Resolution: 1920x1200
  • Aspect Ratio: 16:9 (adjustable to 4:3)
  • Brightness: 3000 cd/m²
  • Contrast: 1200:1
  • Colors: 16.77 million
  • Viewing Angle: 160° horizontal / vertical

Inputs

  • SDI BNC: 2, 2K/3G/HD/SD
  • HDMI-A: 1 (HDMI 2.0 4K60p)
  • USB: 1 (Firmware upgrade)
  • RS485: 1 (GPI/TALLY input)

Outputs

  • SDI Loop BNC: 1
  • HDMI Loop HDMI-A: 1
  • Embedded Audio Out: 3.5mm: 1

Video Format Support

  • SDI: 480i - 2048x1080p
  • HDMI: 480i - 4096x2160p

General

  • Input Voltage: DC/battery 6.5-17V
  • Power Consumption: 26W
  • Operating Temp: -10°C to +50°C
  • Operating Humidity: 10-90%
  • Storage Temp: -15°C to +60°C
  • Storage Humidity: 10-90%
  • Dimensions: 187 x 137 x 41 mm
  • Weight: 500 g
