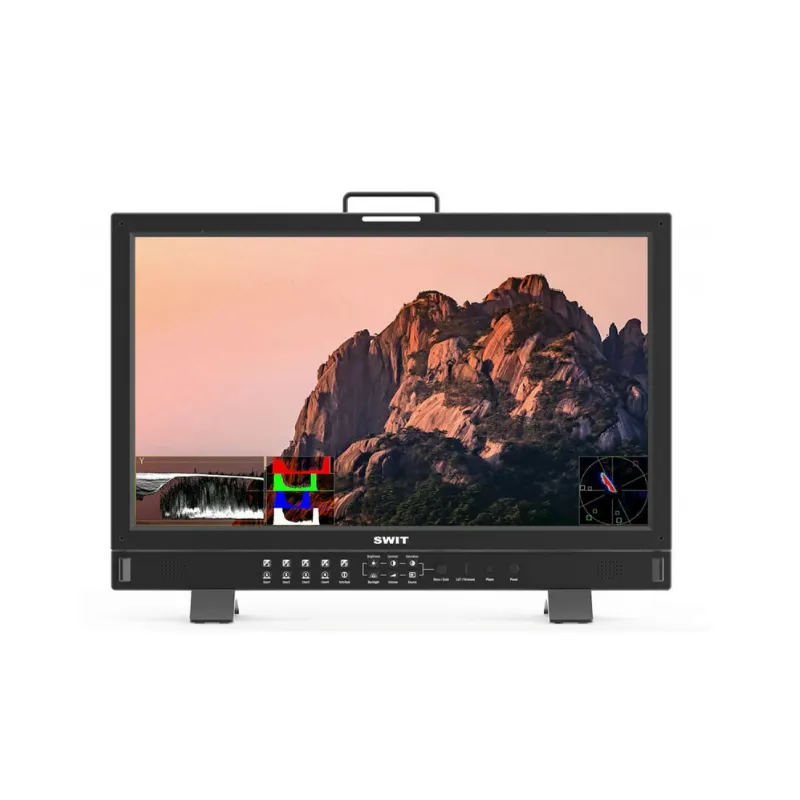

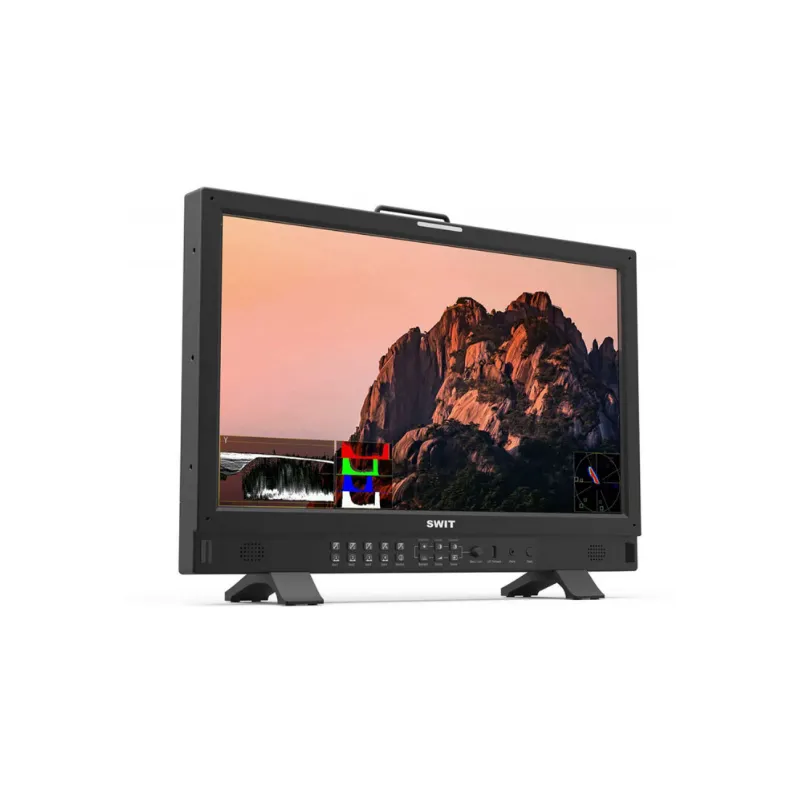

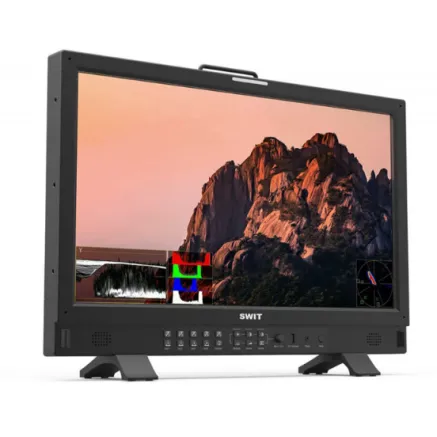

Swit BM-H245 23.8 12G-SDI 4K QLED HDR Monitor
AI ASSISTANT CHAT
Or ask about:
| Type of Product | LCD Monitor |
| LCD monitors | monitors |
| Connector | SDI |
| Connector | HDMI |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
The SWIT BM-H245 is a 23.8 professional broadcast monitor featuring 12G-SDI and HDMI 2.0 inputs, 4K signal support, HDR/SDR display, 100 DCI-P3 color coverage, and zero-latency video processing. With 18-bit internal processing and automatic 3D LUT calibration without a PC, it delivers accurate color reproduction for cinema and broadcast workflows.
The SWIT BM-H245 is a high-performance 23.8-inch professional monitor designed for broadcast, post-production, and cinematic environments. Built around a Full HD (1920 x 1080) IPS panel, it supports 4K signals via 12G-SDI and HDMI 2.0 while providing accurate downscaled monitoring with exceptional color precision.
With 18-bit internal signal processing and 100 DCI-P3 color gamut support, the BM-H245 ensures outstanding color fidelity for HDR and SDR workflows. The monitor features integrated multi-camera DeLog LUTs and supports automatic 3D LUT calibration without requiring a PC, streamlining color management for professional users.
The BM-H245 includes 12G-SDI, 3G-SDI, and HDMI 2.0 inputs, supporting 4-channel SDI/HDMI mixed multiview display. Users can configure PBP (Picture-by-Picture) or PIP (Picture-in-Picture) views for dual-channel monitoring. Zero-latency audio and video processing ensures perfect lip-sync accuracy, making it ideal for live production and broadcast control rooms.
Additional connectivity includes Ethernet for web server IP control, RS485 for TSL 3.1/4.0 UMD and tally control, SDI loop outputs, and analog audio monitoring via headphones or 3.5mm speaker output. With wide 178° viewing angles, 1000:1 contrast ratio, and durable construction, the BM-H245 is built for professional studio use.
Key Features- 23.8 IPS LCD panel, 1920 x 1080 resolution
- 12G-SDI & 3G-SDI inputs with 4K signal support
- HDMI 2.0 input
- 4-channel SDI/HDMI mixed multiview
- PBP & PIP dual-channel display modes
- HDR/SDR display with multi-color range
- 18-bit internal color processing
- 100 DCI-P3 color gamut
- Zero-latency audio/video for accurate lip-sync
- Automatic 3D LUT calibration (no PC required)
- Integrated multi-camera DeLog LUTs
- Ethernet IP control via web server
- 1 SWIT BM-H245 Professional Monitor
- AC Power Cable
- User documentation
Display Performance
- Screen Size 23.8 inches
- Display Area 527.04 x 296.46 mm
- Resolution 1920 x 1080 (FHD)
- Aspect Ratio 16:9
- Brightness 250 nits
- Contrast Ratio 1000:1
- Color Depth 16.77 million colors (8-bit)
- Signal Processing 18-bit
- Viewing Angle 178° H / 178° V
Inputs
- BNC 1 12G/6G/3G/HD/SD-SDI
- BNC 3 3G/HD/SD-SDI
- HDMI 1 HDMI 2.0
- RS485 1 TSL 3.1/4.0 UMD input
- RS485 1 GPI (Tally) input
- RJ45 1 1000 Mbps Ethernet (IP control)
Outputs
- BNC 1 12G/6G/3G/HD/SD-SDI loop
- BNC 1 3G/HD/SD-SDI
- RS485 1 TSL 3.1/4.0 UMD output
- Audio Headphone & 3.5 mm speaker output
General
- Input Voltage DC 12-17V / AC 100-240V (50/60Hz)
- Power Consumption 60W
- Dimensions 580.9 x 392.3 x 73.6 mm
- Net Weight 6.7 kg
