Swit BM-215-NDI 21.5 4K-NDI QLED HDR Monitor
AI ASSISTANT CHAT
Or ask about:
| Type of Product | LCD Monitor |
| LCD monitors | monitors |
| Connector | HDMI |
| Connector | SDI |
| Connector | USB-C charging/connection |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Overview

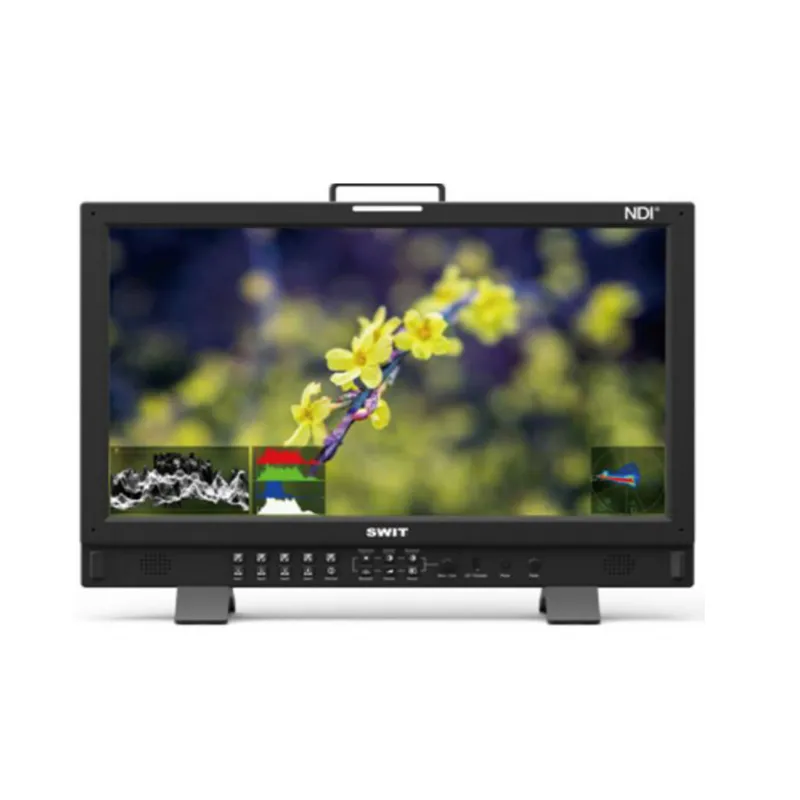

The SWIT BM-215-NDI 21.5" Professional NDI Monitor is a 4K QLED HDR FHD monitor with 100 DCI-P3 color coverage, zero-delay SDI output, and NDI decoding. It features automatic source detection, low-bandwidth NDI support, PC-free 3DLUT auto-calibration, and professional video monitoring tools for broadcast and production workflows.
Display and Performance
The SWIT BM-215-NDI is a 21.5-inch professional NDI monitor designed for high-quality IP video workflows. Featuring a 1920x1080 FHD LCD with 400 nits LED backlighting, 178 H/V viewing angles, and 100 DCI-P3 color gamut, this monitor delivers accurate color reproduction and broadcast-grade video quality.
NDI Support
Built on the latest NDI 5 SDK, the BM-215-NDI supports automatic detection and rapid selection of NDI sources, including high-bandwidth and low-bandwidth modes. It decodes NDI streams to 3G-SDI outputs, enabling seamless integration into SDI workflows. The monitor also supports NDI Discovery Server for multi-segment IP network source retrieval.
Monitoring Tools
Professional monitoring tools include waveforms, vector scopes, false color, focus assist, blue-only mode, zebra stripes, color gamut displays, pointer signals, and audio meters. The BM-215-NDI supports USB-based 3DLUT auto-calibration with X-Rite i1 or Jeti Specbos 1211 probes for precise color accuracy (E < 1.0).
Connectivity
Connectivity includes RJ45 for NDI input, dual BNC for 3G/HD/SD-SDI, HDMI 2.0, RS485 for TSL UMD and GPI tally, and decoded NDI SDI output. It supports a wide range of video formats from 720p to 4K NDI, with zero-latency SDI output for accurate monitoring and lip-sync.
Power and Durability
Powered by 12V DC or AC 100-240V, the monitor consumes 45W and operates reliably in 0-50°C with 10-90% humidity. Its compact and durable form factor (530.6 x 364.3 x 74.2 mm, 6.05 kg) makes it suitable for studio, field, and live production environments.
Key Features
- 21.5" FHD QLED monitor, 1920x1080 resolution
- 100 DCI-P3 wide color gamut
- NDI decoding with automatic source detection
- Low-bandwidth NDI mode supported
- Zero-delay SDI output, HDMI 2.0 input, RJ45 NDI input
- Professional monitoring tools: waveform, vector, focus assist, zebra, false color, audio meters, pointer signals
- PC-free 3DLUT auto-calibration via USB
- Supports TSL UMD and GPI tally via RS485
- Wide viewing angle 178 H/V
- Power DC 12V or AC 100-240V, 45W consumption
- Operating temperature 0-50°C, humidity 10-90%
Specifications
- Screen Size: 21.5 inches
- Resolution: 1920x1080 (FHD)
- Brightness: 400 nits
- Contrast: 1000:1
- Color Depth: 16.77 million colors (8-bit)
- Color Gamut: 100 DCI-P3
- Viewing Angle: 178 H / 178 V
- Video Inputs: RJ45 (NDI), BNC 2 (3G/HD/SD-SDI), HDMI 2.0
- Video Outputs: BNC 1 (SDI loop), BNC 1 (NDI decoded SDI)
- Audio: Analog audio out, headphones 3.5 mm
- Tally/Control: RS485 for TSL UMD / GPI
- Power Input: DC 12V, AC 100-240V, 50/60Hz
- Energy Consumption: 45W
- Dimensions: 530.6 x 364.3 x 74.2 mm
- Weight: 6.05 kg
