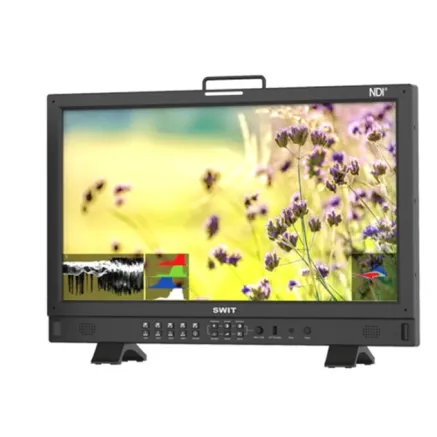

Swit BM-245-NDI 23.8 4K-NDI QLED HDR Monitor
AI ASSISTANT CHAT
Or ask about:
| Type of Product | LCD Monitor |
| Battery type | Battery Adapter Plate |
| LCD monitors | monitors |
| Connector | SDI |
| Connector | HDMI |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Overview

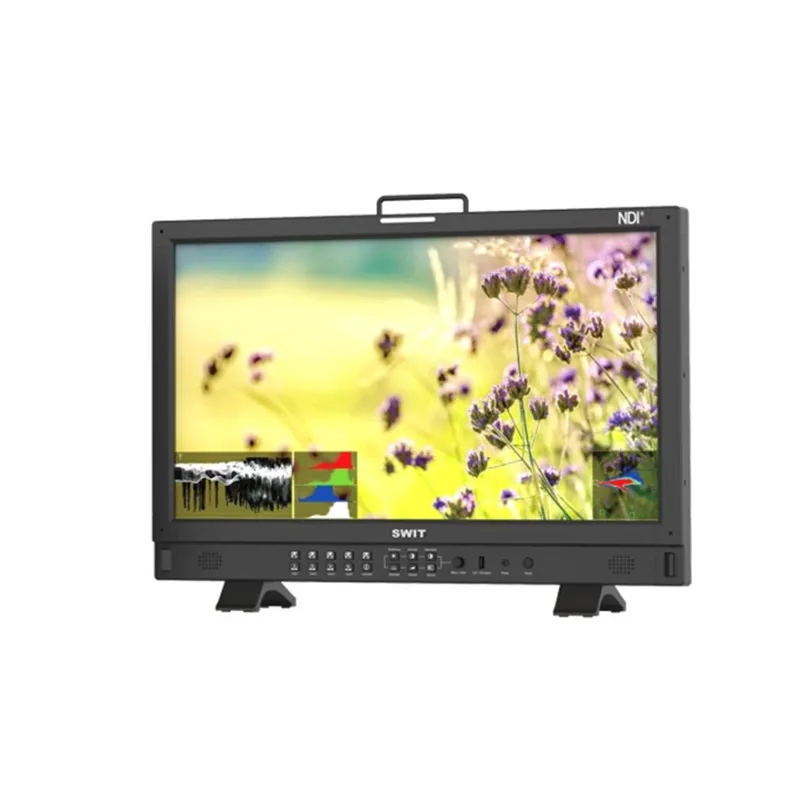

The SWIT BM-245-NDI is a 23.8-inch professional FHD QLED monitor with 100 DCI-P3 color coverage, Zero-Delay NDI decoding, and auto-calibration, ideal for broadcast, live production, and post-production monitoring.
Performance
The BM-245-NDI is a high-performance 23.8-inch 1920x1080 QLED monitor designed for professional NDI broadcast and live production environments. Featuring a 100 DCI-P3 wide color gamut, 400 nits LED backlight, and 178 viewing angles, it delivers accurate, vivid colors for critical monitoring tasks.
The monitor supports high-bandwidth 4K NDI input, and decodes NDI streams to 3G-SDI output with zero-delay, making it ideal for live video production. Multiple inputs include 3G-SDI 2-in 1-loop and HDMI 2.0, and the monitor supports PBP (Picture by Picture) or PIP (Picture in Picture) views for multi-source monitoring.
Features
Built-in features for professional workflows include Rec.709, DCI-P3, and Rec.2020 color gamut selection, 3D LUT auto self-calibration without PC, delog LUTs, and user LUT upload via USB. Monitoring tools include waveform, vector, histogram, focus assist, false color, zebra, and 16-channel audio meters with Lissajous patterns.
The BM-245-NDI also offers convenient control and flexibility, with auto-detect and quick select of NDI sources, NDI Discover Server support, and future IP webserver remote control. Power options include AC, DC, and battery plate, making it suitable for studio, field, and mobile setups.
Key Features
- 23.8-inch FHD QLED panel (1920x1080)
- 100 DCI-P3 wide color gamut
- VICO 1.97 A-class eye-protecting panel
- High-bandwidth 4K NDI input with zero-delay decoding
- 3G-SDI 2-in 1-loop, HDMI 2.0 input
- NDI decode to 3G-SDI output
- PBP / PIP multi-source view
- Auto-detect and quick select NDI sources
- Support for NDI Discover Server
- Rec.709 / DCI-P3 / Rec.2020 color gamut selection
- 3D LUT auto self-calibration without PC
- Built-in delog LUTs and user LUT upload via USB
- Waveform, vector, histogram
- Focus assist, false color, zebra
- 16-channel audio meters with Lissajous pattern
- Future IP webserver remote control
- Power options AC, DC, battery plate
Specifications
- Panel Size: 23.8-inch
- Resolution: 1920x1080 (FHD)
- Panel Type: QLED, VICO 1.97 A-class
- Brightness: 400 nits
- Viewing Angle: 178 horizontal / vertical
- Color Gamut: 100 DCI-P3
- NDI Input: 4K high-bandwidth
- SDI Input/Output: 3G-SDI 2-in 1-loop, NDI decode to 3G-SDI output
- HDMI Input: HDMI 2.0
- Monitoring Tools: Waveform, Vector, Histogram, Focus Assist, False Color, Zebra, Audio meters
- Color Management: Rec.709 / DCI-P3 / Rec.2020, 3D LUT auto self-calibration
- Power Supply: AC, DC, or battery plate
