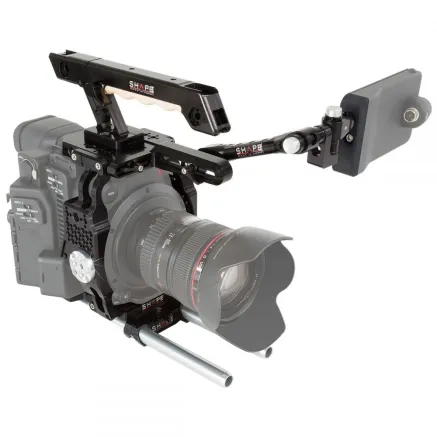

Shape Canon C200 Cage Handle EVF Mount

Canon C200 Camera Cage

• Constructed from solid, robust CNC machined aluminum for durability.
• Secured to the Canon C200 camera with 4 captive screws (3 x ¼-20 and 1 x 3/8-16) ensuring a strong hold.
• Multiple mounting points and threaded holes available for attaching various camera accessories.
• Includes an ARRI Rosette on the right side to attach a Remote Extension handle or the C200 Handle.
• Features a locking mechanical system to secure the cable handle.
• Bottom section includes an Adaptor Plate with several ¼-20 and 3/8-16 threaded holes, ideal for optimizing camera balance on tripods, gimbals, or drones.
• Top section has a Top Plate allowing mounting of the C200 Top Handle at different positions to optimize balance in shoulder mode.
• Quick adjustment or removal of the cage is possible using an Allen Key, which is magnetically secured and easily accessible at the bottom of the cage.

Canon C200 Baseplate with 15 mm Rod System

• Equipped with a pair of 15 mm rods, each 30.5 cm (12 inches) long, running through the length of the baseplate.
• Attaches underneath the camera using 3/8-16 and ¼-20 screws.
• Four-point attachment system to securely hold the camera and for tripod plate attachment (3 x ¼-20 and 1 x 3/8-16 screws).
• Ratchet key knobs allow repositioning of the rod block system.
• 15 mm Lightweight (LW) Rod System designed to align with the Canon C200 optical center.
• Four rubber pads on top of the base protect and securely seat the camera.
• Bottom section of the baseplate can be quickly unscrewed with an Allen Key to reveal an Adaptor Plate with multiple ¼-20 and 3/8-16 threaded holes for optimized balance on tripods, gimbals, or drones.
• The Allen Key is magnetically fixed and easily accessible at the bottom of the baseplate.

Extendable Top Handle and View Finder Bracket Arm with Push-button

• Handle grip frame made from robust CNC machined aluminum; finger grip crafted from genuine Canadian maple wood for enhanced comfort.
• Top handle is removable and length-adjustable, allowing an extension of approximately 7.6 cm (3 inches) to optimize camera balance according to lens type.
• View Finder Bracket Arm mounts quickly to the Canon C200 Top Plate using a ratchet knob.
• Viewfinder position is adjustable via the ratchet knob system and patented Push Button Technology, enabling push, adjust, release, and lock without unscrewing.

Attachment Features of the Top Handle

• A 15 mm Rod Clamp (15CTH) can be mounted on the front section of the top handle to attach the 15 mm Push Button View Finder Bracket Arm or other 15 mm LW studs.
• Multiple threaded holes allow integration with the REVOLT Push Button Magic Arm Series for mounting and manipulating camera monitors or other accessories.
• Four ¼-20 threaded holes on the front provide additional attachment options.
• Two hot shoe brackets located at the front and back of the handle for accessory mounting.

Delivery Contents

• 1 Camera Cage
• 1 Base Plate with Rod Block (B15C200)
• 1 Pair of 15 mm rods, 30.5 cm (12 inches) long (15TUBE12)
• 1 Extendable Top Handle
• 1 View Finder Bracket Arm with Push-button
