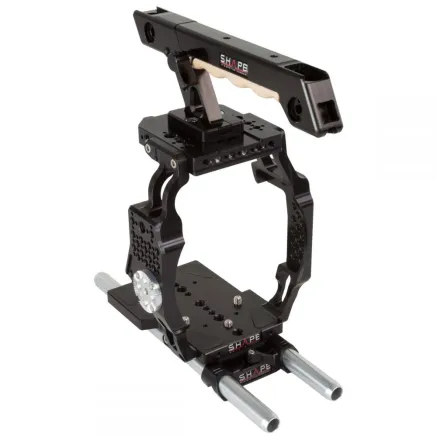

Shape Canon C200 Cage 15mm LW Rod (C2ROD)

Canon C200 Camera Cage

• Constructed from solid, robust CNC machined aluminum for durability.
• Equipped with 4 captive screws (3 x ¼-20 and 1 x 3/8-16) to securely fasten the Canon C200 camera.
• Provides multiple mounting points and threaded holes for attaching various camera accessories.
• Includes an ARRI Rosette on the right side for attaching a Remote Extension handle or the C200 Handle.
• Features a locking mechanical system to secure the cable handle.
• The bottom section incorporates an Adaptor Plate with several ¼-20 and 3/8-16 threaded holes, ideal for optimizing camera balance on tripods, gimbals, or drones.
• The top section has a Top Plate allowing mounting of the C200 Top Handle at different positions to optimize balance in shoulder mode.
• Quick adjustment or removal of the cage is possible using an Allen Key, which is magnetically fixed and easily accessible at the bottom of the cage.

Canon C200 Baseplate with 15 mm Rod System

• Includes a pair of 15mm rods, each 30.5 cm (12 inches) long, running through the length of the baseplate.
• Attaches underneath the camera using 3/8-16 and ¼-20 screws.
• Features 4-point attachment (3 x ¼-20 and 1 x 3/8-16) to securely hold the camera and for tripod plate attachment.
• Ratchet key knobs allow repositioning of the rod block system.
• The 15mm LW Rod System is designed to align with the Canon C200 optical center.
• Four rubber pads on top of the base protect and securely seat the camera.
• The bottom section of the baseplate can be quickly unscrewed with an Allen Key to reveal an Adapter Plate with multiple ¼-20 and 3/8-16 threaded holes, enhancing balance optimization on tripods, gimbals, or drones.
• The Allen Key is magnetically fixed and easily accessible at the bottom of the baseplate.

Extendable Top Handle

• Handle grip frame is made from robust CNC machined aluminum.
• Finger grip is crafted from genuine Canadian maple wood for maximum comfort.
• The top handle is removable and can be quickly adjusted and locked to extend approximately 7.6 cm (3 inches) from its original position to optimize camera balance according to lens type.

Attachment Features of the Top Handle

• A 15 mm Rod Clamp (15CTH) can be mounted on the front section of the top handle, allowing attachment of a 15mm Push Button View Finder Bracket Arm or other 15mm LW studs.
• Multiple threaded holes enable rig optimization with REVOLT Push Button Magic Arm Series for attaching and manipulating camera monitors or other accessories.
• Four ¼-20 threaded holes on the front provide additional attachment options.
• Two hot shoe brackets located at the front and back of the handle offer further mounting possibilities.

Delivery Contents

• 1 Camera Cage
• 1 Base Plate with Rod Block (B15C200)
• 1 Pair of 15mm rods, 30.5 cm (12 inches) long (15TUBE12)
• 1 Extendable Top Handle
