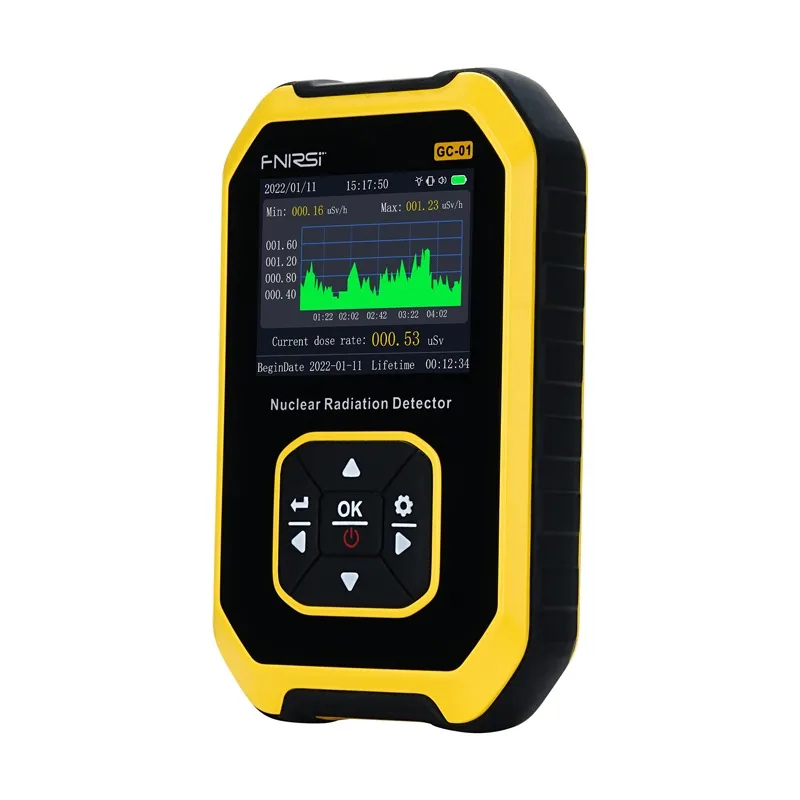

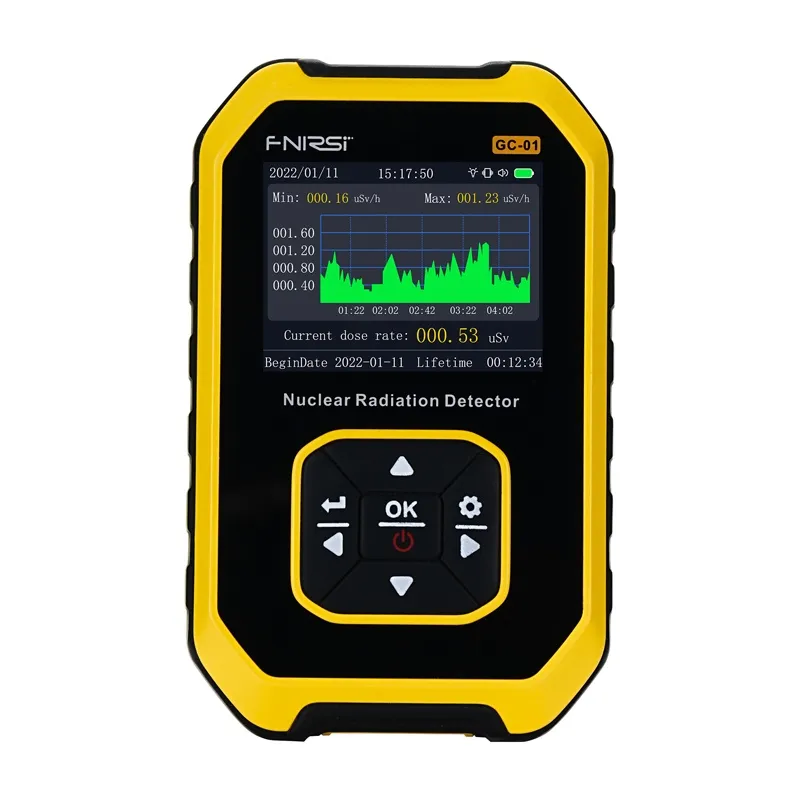

FNIRSI GC-01 Nuclear Radiation Detector

FNIRSI GC-01 Nuclear Radiation Detector

The FNIRSI GC-01 is a compact and precise Geiger counter designed for real-time monitoring of ionizing radiation. It features a large LCD screen with a graphical radiation level chart, a sensitive Geiger-Müller counter, and an alarm function that activates sound, light, and vibration alerts when preset radiation levels are exceeded. This device is suitable for detecting radiation in food, metals, building materials, industrial equipment, as well as in X-ray and CT diagnostics. The built-in 1100 mAh rechargeable lithium battery is charged via a USB-C port.

Real-Time Response

The LCD screen provides a clear, real-time display of detected radiation levels, enabling quick reaction to hazardous conditions. A graphical chart allows easy observation of environmental radiation changes. Users can select from multiple units of measurement including nSv/h, pGy/h, mR/h, cps, and cpm. Additional features include adjustable alarm settings, backlight control, and language options (Chinese and English).

High Sensitivity Detection

The Geiger-Müller counter detects beta, gamma, and X-rays, allowing for accurate measurements in both industrial and domestic environments. The technology supports detection of very low radiation doses, enhancing safety monitoring capabilities.

Wide Measurement Range

The device measures radiation dose rates from 0.01 µSv/h up to 10,000 µSv/h (10 mSv/h), covering background radiation levels as well as significantly higher, potentially harmful levels. It can record a cumulative dose equivalent up to 500.0 mSv.

Reliability in Various Environments

The FNIRSI GC-01 is suitable for use in domestic, medical, industrial, and protective applications. It can monitor radiation in materials such as marble, cosmetics, imported products, and is applicable in hospitals, nuclear power plants, metallurgical plants, as well as for travelers and healthcare providers. The device features a non-slip silicone housing that is drop-resistant, making it durable for field use and harsh conditions. The 1100 mAh battery supports up to 10 hours of continuous operation, with convenient USB-C charging.

Included in the Package

• FNIRSI GC-01 Radiation Meter Geiger Counter
• USB-C Charging Cable
• User Manual

Technical Specifications

• Manufacturer: FNIRSI
• Model: GC-01
• Detected Radiation Types: Gamma radiation, X-rays, beta radiation
• Dose Equivalent Range: 0.00 to 10,000 µSv/h (10 mSv/h)
• Cumulative Dose Equivalent: 0.00 µSv to 500.0 mSv
• Energy Range: 48 keV to 1.5 MeV ±30% (for 137Cs)
• Languages: Chinese, English
• Sensitivity: 80 CPM/µSv (for Co-60)
• Units of Measurement: nSv/h, pGy/h, mR/h, cps, cpm (switchable)
• Power Supply: 1100 mAh rechargeable lithium battery
• Alarm Methods: Light, vibration, sound
• Dimensions: 120 x 78 x 27 mm
