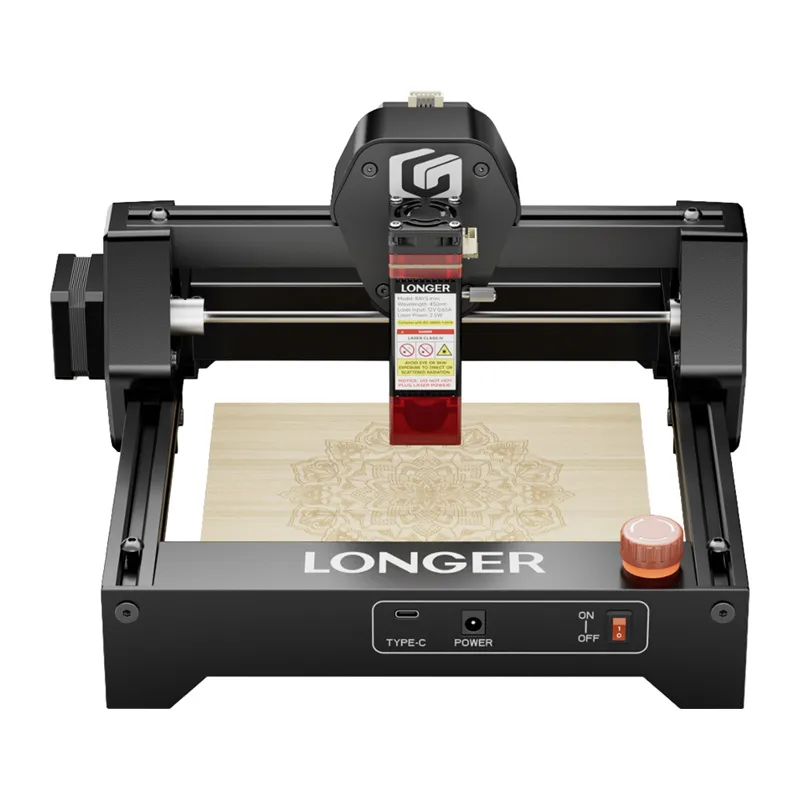

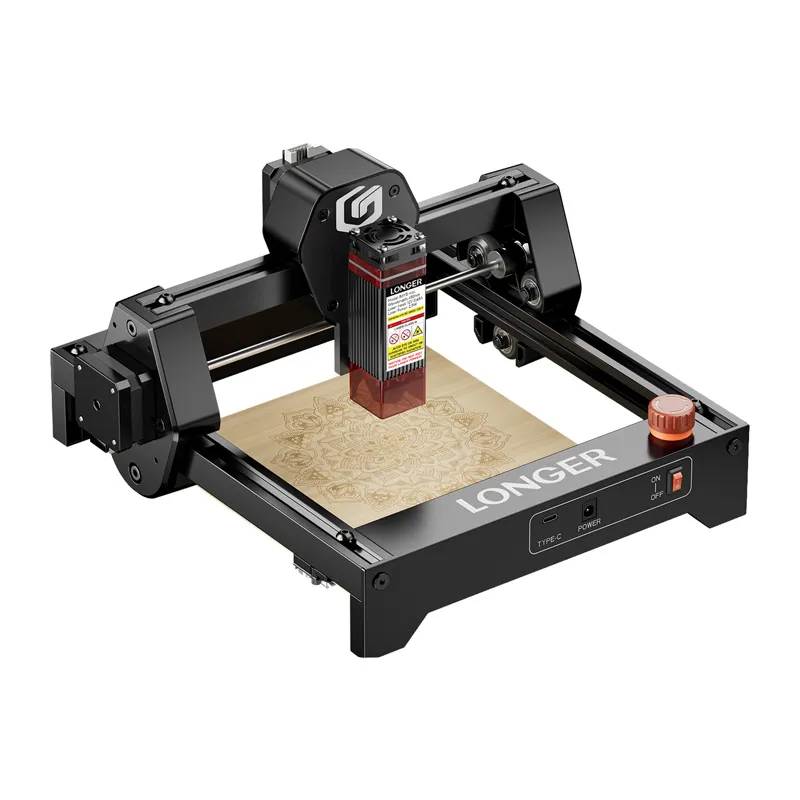

LONGER RAY5 mini 2.5W Laser Engraver

Longer Ray5 mini laser engraver (2.5 W)

The Longer Ray5 mini engraver with a 2.5 W diode laser allows you to start working without reorganizing your workstation. The device is factory assembled, so you can start your first project right out of the box. The 130 x 140 mm working area provides space for key chains, plates, or decorative elements, and the speed of up to 12,000 mm/min means that even larger designs can be created efficiently. The 0.04 mm laser spot and 450 nm wavelength allow you to reproduce details that often disappear in this class of devices.

Fine details that really stand out

The 0.04 mm laser spot ensures that even very fine patterns on wood, leather, or metal remain clear and legible. This level of accuracy allows you to move from simple inscriptions to more complex, decorative patterns.

Shorter turnaround time from idea to finished item

With a maximum head speed of 12,000 mm/min, even more complex projects are completed efficiently. A small motif measuring approximately 30 x 10 mm is created in about 3 minutes, and a larger 100 x 100 mm pattern in about 25 minutes. Faster engraving reduces the risk of excessive heating of the material during long sessions.

Create on wood, leather, metal, and many other materials

A 130 x 140 mm field and compatibility with over 300 materials allow you to transfer a single idea to different surfaces. The 2.5 W FAC diode laser also allows you to cut thinner materials up to 12 mm thick, further expanding the range of DIY applications.

Beginner-friendly

The pre-assembled design makes the engraver ready to use almost immediately. Support for LaserGRBL or LightBurn software allows you to easily load your design and start engraving in a familiar environment.

Freedom to work from your computer or phone even offline

USB and Wi-Fi connectivity allow you to control the engraver from your computer or smartphone. Once the file is uploaded, it is possible to work offline.

Peaceful work thanks to design safeguards

Built-in X/Y axis limit switches control the range of motion of the head. A physical Emergency Stop button allows you to immediately stop the device. The kit also includes safety glasses for added safety when working with exposed material.

Easy to carry and set up wherever you create

As one of the smallest and lightest engravers in its class, the Longer Ray5 mini fits on a desk or mobile workbench without taking up much space. The desktop design with a rigid aluminum alloy makes it easy to move between rooms.

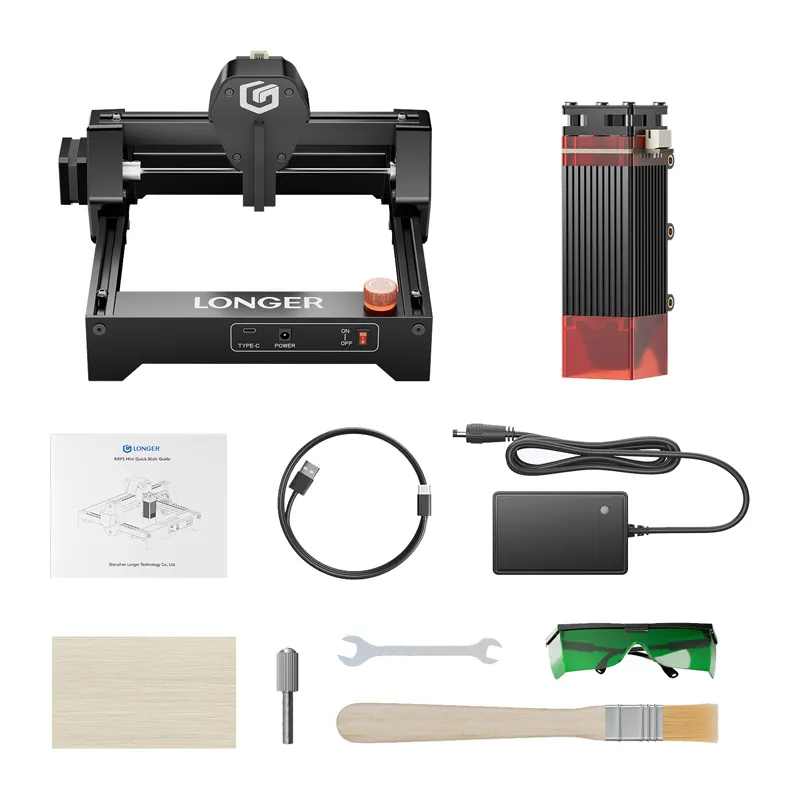

Included

• Machine frame
• Laser module
• Power supply
• Data cable
• Safety glasses
• Focusing block
• Key
• Wooden brush

Specifications

• Manufacturer: Longer
• Model: Ray5 mini 2.5W
• Laser power: 2.5 W
• Laser source: Single laser diode with FAC
• Laser wavelength: 450 nm
• Working area: 130 x 140 mm
• Cutting depth: 12 mm
• Engraving speed: 12,000 mm/min
• Engraving precision: 0.04 mm
• Supported formats: JPG, BMP, PNG, DXF
• Lifespan: 10,000+ hours
• Machine material: Aluminum alloy
• Connection: Wi-Fi, USB, app
• Safety certifications: CE; FCC; FDA; RoHS
• Supported systems: Windows; MacOS; Linux; Android; iOS
• Dimensions: 286 x 292 x 165 mm
• Weight: 1.47 kg
• Power supply: 100-240V 50/60Hz 1.5A/12V-2A (24W) or 12V-3A (36W)
• Compatible materials: Wood, acrylic, leather, fabric, metal, ceramics, etc.
