Newell Voltage Converter Modified Sine Wave 24V to 230V 1000W

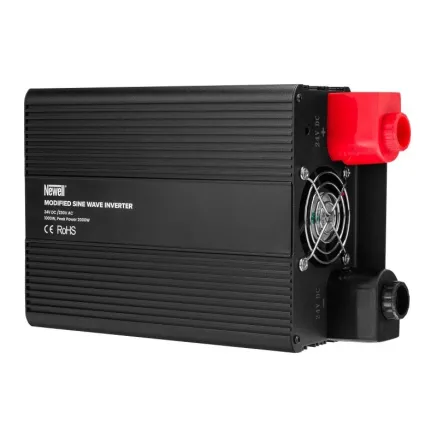

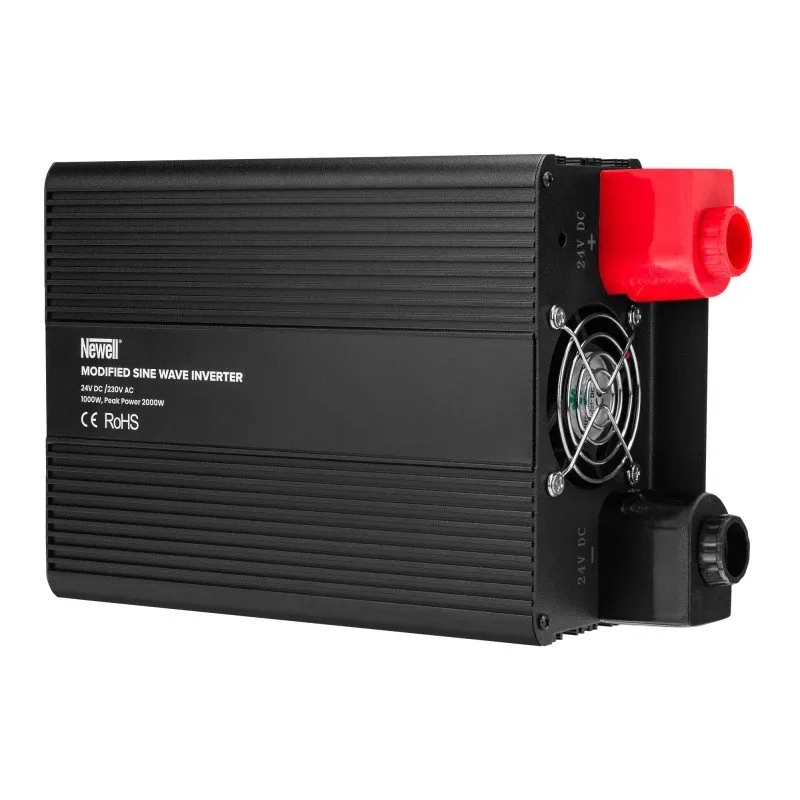

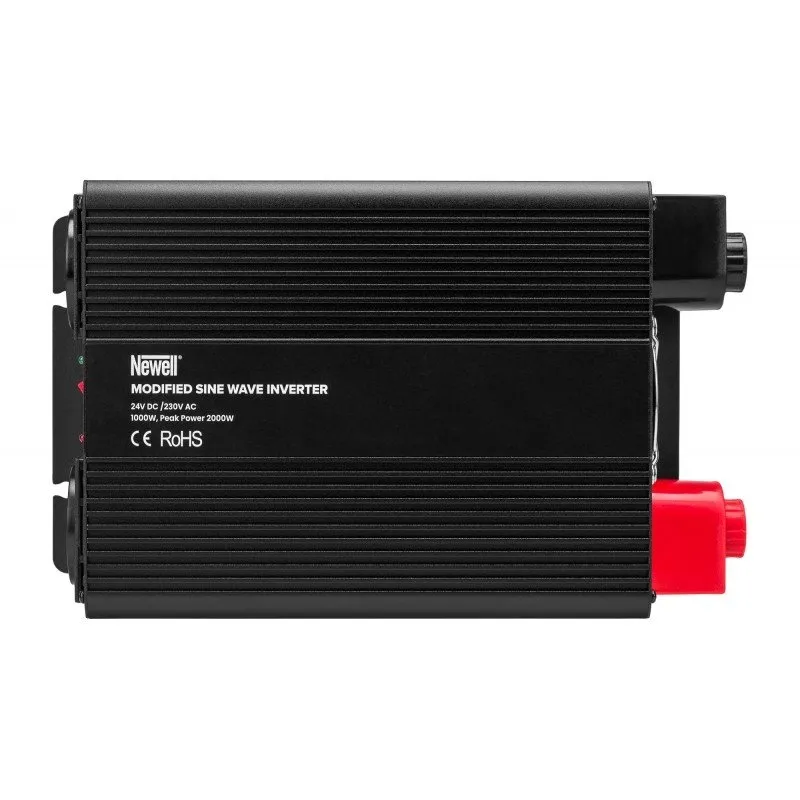

Newell Voltage Converter with Modified Sine Wave 24 V / 230 V, 1000 W

The Newell voltage converter with modified sine wave 24 V / 230 V, 1000 W is designed for users who travel frequently or need to power devices where traditional electrical outlets are unavailable. It converts a 24 V DC battery source into 230 V AC power, effectively turning your battery into a universal power source. The device features two standard European electrical sockets (E type) and one USB-A port, allowing connection of heaters, laptops, smartphones, tablets, grinders, and other equipment. The inverter supports a maximum continuous power output of 1000 watts. Included are both standard battery cables and cables with clamps for easy battery connection.

Main Features

• Universal inverter with 1000 W continuous power output
• Converts 24 V DC battery voltage to 230 V AC

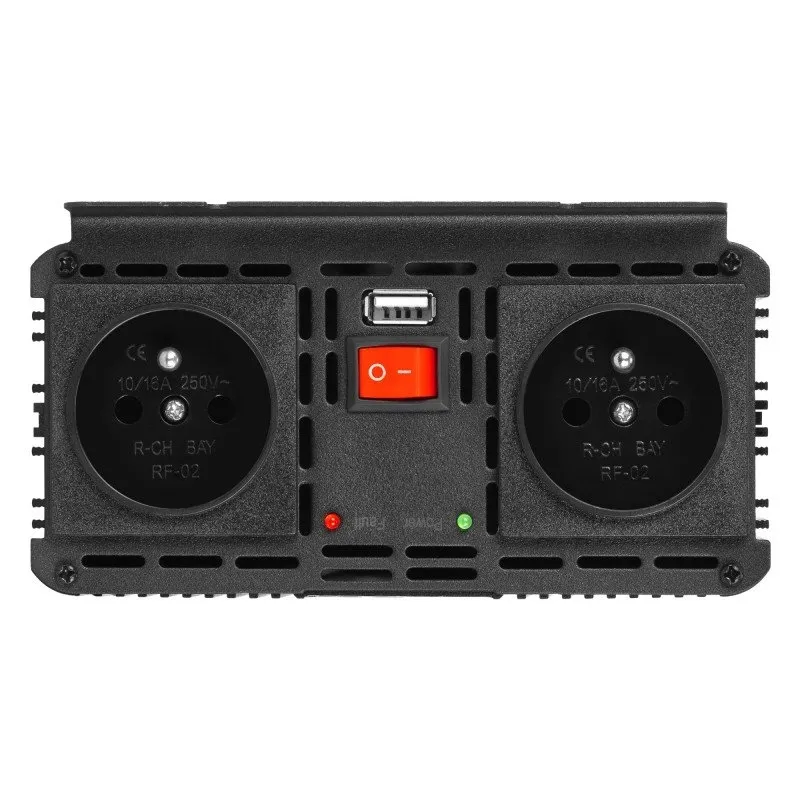

• Equipped with 2 standard electrical sockets (E type) and 1 USB-A port
• Compatible with devices such as heaters, laptops, mobile chargers, grinders, and more
• USB-A port for convenient charging of smartphones, tablets, e-book readers, headphones, etc.
• Multiple safety protections: overvoltage, short-circuit, overheating, and overcharging
• CE and RoHS certified for safety compliance
• Intelligent cooling system with temperature-controlled fan operation
• LED indicator for operational status
• Includes two types of battery cables: standard and with clamps
• Compact and durable housing with easy access to fuses, sockets, and cable terminals

Usage and Applications

This inverter is ideal for campervans, trucks, and vehicles using 24 V batteries, providing power for electrical devices on the move. It enables the use of household appliances and power tools that require 230 V AC, without needing to purchase new equipment. The modified sine wave output is suitable for less demanding devices and tools with commutator motors, such as angle grinders and drills.

Power and Compatibility

The inverter delivers up to 1000 W continuous power and 2000 W peak power. It is important to ensure that connected devices do not exceed 88% of the rated power (approximately 880 W) for optimal performance. For appliances with induction motors, compressors, LED lighting, or Hi-Fi equipment, a pure sine wave inverter is recommended for compatibility.

Design and Cooling

The compact design offers ergonomic handling and convenient access to controls and connections. An automatic cooling system adjusts fan speed based on device temperature, ensuring quiet and efficient operation within an operating temperature range of -10°C to 40°C.

Safety and Protection

The inverter incorporates advanced protection systems to safeguard both the device and connected equipment. It guards against overvoltage, short circuits, overheating, and overcharging, ensuring reliable and durable operation.

Technical Specifications

• Model: Newell voltage inverter with modified sine wave 24 V / 230 V, 1000 W
• Input voltage: 24 V DC nominal
• Output voltage: 220 / 230 / 240 V AC
• Continuous power output: 1000 W
• Peak power output: 2000 W
• Output frequency: 50 / 60 Hz
• Operating efficiency: 88% at full load
• Cooling: Temperature-controlled cooling fans
• Operating temperature range: -10°C to 40°C
• Operating humidity range: 20% to 90% RH
• Dimensions: 31 x 19 x 12.5 cm
• Weight: 1.785 kg

Package Contents

• Newell voltage converter with modified sine wave 24 V / 230 V, 1000 W
• Battery cables with clamps
• Battery cables with grommets
