Swit PL-E90D 90W LED Panel Light
- Light color quality (CRI) cri 98 / tlci 98
- Light color quality (CRI) tlci 99
- Compatible v-mount
- Color temperature 2700 k – 6500 k
- Power Watt 90
- Light dimming 0-100% dimmable (pwm)
- LED light type panelis
- Battery Capacity, mAh n/a
- Power Supply v-mount
- Power Supply ac90-260v input
- Number of LEDs 480
- Number of LEDs 480 smd
- Type of Product led panel light
- Light color quality (CRI) cri 98 / tlci 98
- Light color quality (CRI) tlci 99
- Compatible v-mount
- Color temperature 2700 k – 6500 k
- Power Watt 90
- Light dimming 0-100% dimmable (pwm)
- LED light type panelis
- Battery Capacity, mAh n/a
- Power Supply v-mount
- Power Supply ac90-260v input
- Number of LEDs 480
- Number of LEDs 480 smd
- Type of Product led panel light
AI ASSISTANT CHAT
Or ask about:
| Type of Product | LED Panel Light |
| Compatible | V-Mount |
| Color temperature | 2700 K – 6500 K |
| Light dimming | 0-100% dimmable (PWM) |
| LED light type | panelis |
| Power Watt | 90 |
| Power Supply | V-Mount |
| Power Supply | AC90-260V input |
| Battery Capacity, mAh | N/A |
| Number of LEDs | 480 |
| Number of LEDs | 480 SMD |
| Light color quality (CRI) | TLCI 99 |
| Light color quality (CRI) | CRI 98 / TLCI 98 |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
SWIT PL-E90D 3rd Generation LED Panel
The SWIT PL-E90D 3rd Generation LED Panel is an ultra-slim, high-performance bi-color V-Mount panel light delivering 90W of flicker-free illumination. With TLCI 99, CRI 98, adjustable 2700-6500K color temperature, and 0-100 dimming, it offers precise, natural lighting for professional video and film productions. Its versatile power options include AC multi-voltage or V-Mount battery operation.
Design and Performance
The SWIT PL-E90D TLCI-99 90W V-Mount LED Panel is a third-generation, ultra-slim professional lighting solution designed for studio and field productions. Measuring only 1.9" thick, its low-profile design houses 480 high-efficiency SMD LEDs behind a diffuser, producing a uniform 70° beam angle. The light delivers excellent color fidelity with CRI 98 and TLCI 99, accurately reproducing skin tones and other subtle colors.
Features
The panel offers a wide bi-color range from 2700K to 6500K, with continuous, flicker-free dimming from 0-100. Quick adjustment modes allow switching between smooth dimming and preset increments, while preset color temperatures (2700K, 3200K, 4500K, 5600K, 6500K) simplify on-the-fly adjustments. Settings can be controlled locally via intuitive onboard controls and the rear LCD display or remotely via DMX (5-pin XLR), supporting master/slave configurations or integration into larger DMX512 networks.
Power and Durability
Powering options include multi-voltage AC input (110-240 VAC) or optional V-Mount batteries via the 4-pin XLR DC input. The fixture also includes 4-way shutters for precise light control and a tilt range of 180° with a TVMP/Hex bolt yoke mount compatible with a 5/8" receiver. With a robust metal body, passive cooling, and an expected lifespan of 50,000 hours, the PL-E90D combines durability with professional-grade lighting performance.
Key Features
- 3rd Generation ultra-slim 90W bi-color LED panel
- TLCI 99, CRI 98 for natural color rendering
- 2700-6500K color temperature range
- 0-100 flicker-free dimming, continuous or preset increments
- 480 high-efficiency SMD LEDs with 70° beam angle
- Integrated DMX control via 5-pin XLR
- AC multi-voltage or V-Mount battery operation

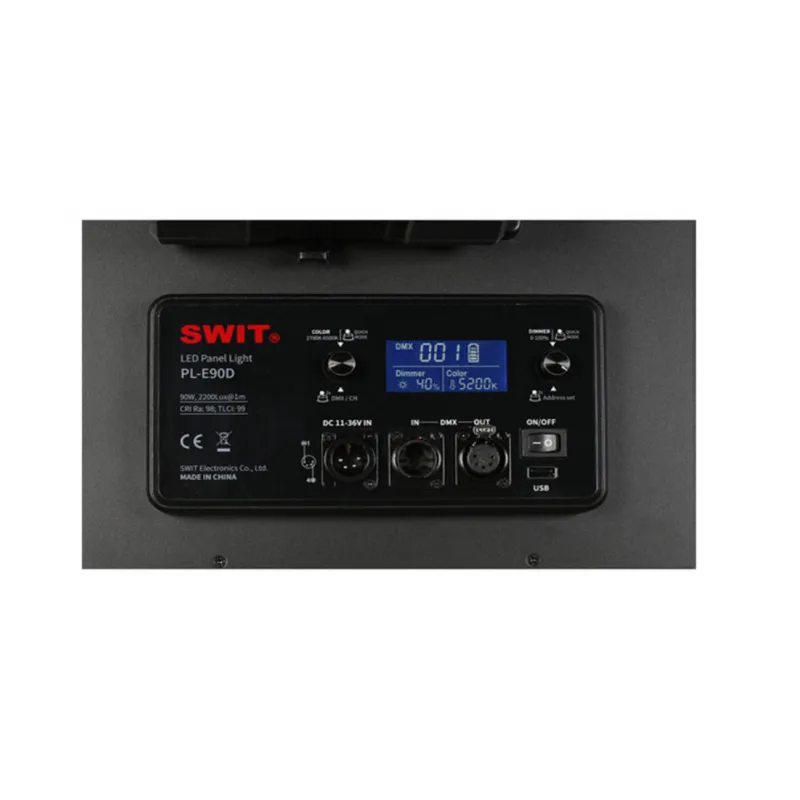

- Rear LCD display for brightness and color temperature
- 4-way shutters for beam shaping
- Tilt 180°, Yoke mount TVMP/Hex Bolt, Fixing 5/8" receiver
- Passive cooling system, metal case, durable construction
- Expected LED lifespan 50,000 hours
Included Accessories
- SWIT PL-E90D LED Panel
- AC Multi-Voltage Adapter
- V-Mount Battery Plate
- User Manual
Specifications
- Panel Area: 20.71 x 10.12" / 52.6 x 25.7 cm
- Beam Angle: 70°
- Lumens: 2200
- Photometry: 204.4 fc / 2200 Lux at 1 m
- Power Consumption: 90 W
- AC Input: 110-240 VAC, 50/60 Hz
- DC Input: 36 VCC via 4-pin XLR, V-Mount battery compatible
- LED Count: 480
- Case Material: Metal
- Dimensions: 25.6 x 15.9 x 1.9" / 650 x 403 x 48 mm
- Weight: 10.47 lbs / 4.75 kg
- DMX Connector: 5-pin XLR
- Battery Plate: 1 x V-Mount
