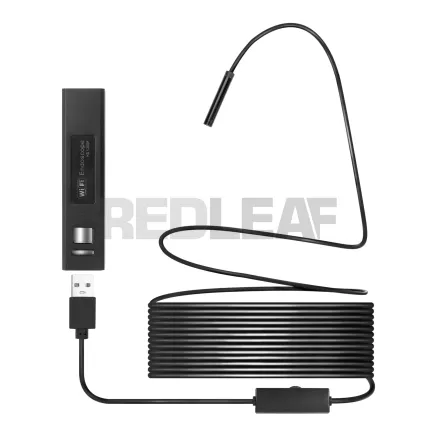

Redleaf RDE-510WS WiFi Endoscope 10m

Wireless Connectivity

The Redleaf RDE-510WS endoscope connects wirelessly to Android devices (version 4.2 and above) and iOS devices (version 9.0 and above) via a dedicated YCamera app, available for free on Google Play and the App Store. This app enables real-time video streaming without cables. Additionally, the endoscope can be connected to Windows PCs or Mac computers through a wired connection.

High-Resolution Imaging and Night Filming

Equipped with a CMOS sensor, the endoscope captures photos and videos at a maximum resolution of 1600 x 1200 pixels. Eight LEDs surrounding the 8 mm diameter camera lens provide adjustable illumination, allowing clear imaging even in complete darkness. The lighting intensity is controlled by a dedicated knob, enabling detailed inspection of objects in poorly lit or inaccessible areas.

Multifunctional Attachments

The device includes three specialized attachments to enhance its versatility:

• Magnet: For retrieving small metallic objects from confined spaces.
• Hook: To extract items from hard-to-reach locations.
• Mirror Cap: Converts the endoscope into a periscope for angled viewing and photography.

Water and Dust Resistance

The endoscope meets the IP68 standard for water and dust resistance. When fitted with the included waterproof sealing cap, it can be submerged in water, making it suitable for inspecting hydraulic systems or other wet environments.

Technical Specifications

• Model: Redleaf RDE-510WS WiFi Endoscope
• Sensor Type: CMOS
• Maximum Resolution: 1600 x 1200 pixels
• Camera Diameter: 8 mm
• Field of View: 72°
• Focus Range: 3 to 8 cm
• WiFi Frequency Range: 2412–2612 MHz
• Battery Capacity: 600 mAh
• Power Supply: 5 V with 2 A / 1 A / 500 mA options
• Operating Time per Charge: 90 min at 480p, 80 min at 720p, 70 min at 1600p
• Charging Time: Approximately 1 hour
• Waterproof Rating: IP68 (endoscope only)
• Illumination: 8 LEDs with adjustable brightness
• Cable Length: 10 meters
• Cable Type: Flexible hose

Included in the Package

• Redleaf RDE-510WS endoscope
• WiFi router for wireless connection
• Charging cable
• Waterproof sealing cap for underwater filming
• Three special attachments: mirror, hook, and magnet
• Plastic storage box for attachments and caps
