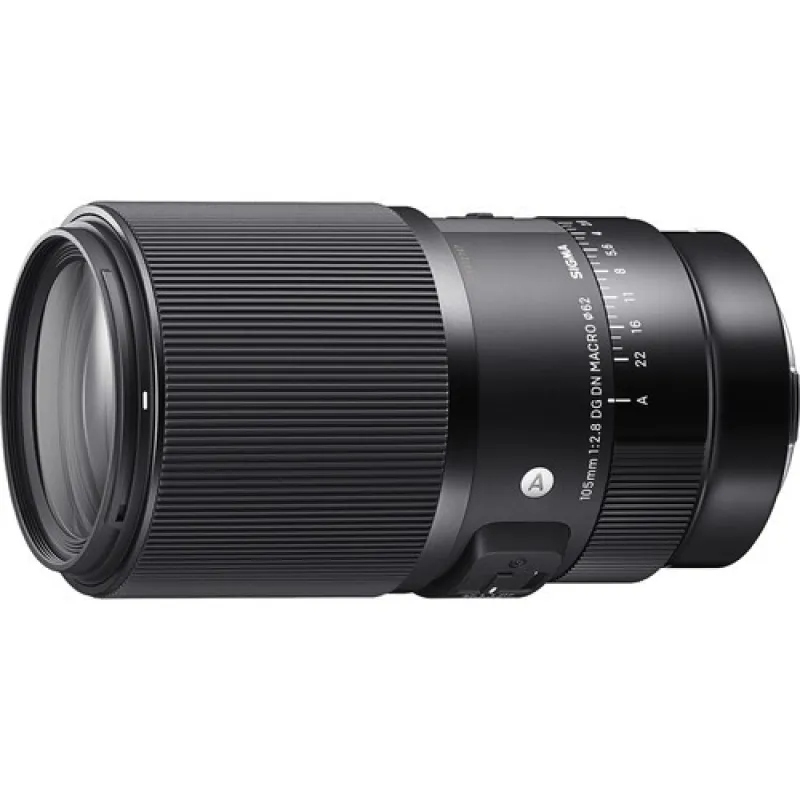

Sigma 105mm F2.8 DG DN Macro Lens for L-Mount [Art]

Key Features

• Leica L-Mount Lens compatible with full-frame format cameras
• Aperture range from f/2.8 to f/22
• One Special Low Dispersion (SLD) element to reduce chromatic aberrations
• Super Multi-Layer Coating to minimize flare and ghosting
• 1:1 life-size magnification with 29.5 cm minimum focusing distance
• Hyper-Sonic Motor (HSM) for fast, quiet autofocus and full-time manual focus
• Customizable Autofocus-Lock (AFL) button and focus limiter switch
• Physical aperture ring with de-click switch and lock to prevent accidental changes
• Rounded 9-blade diaphragm for smooth bokeh
• Weather-sealed construction with brass bayonet mount

Optical and Mechanical Design

The Sigma 105mm f/2.8 DG DN Macro Art lens is a short-telephoto prime optimized for macro photography on Leica L-mount full-frame mirrorless cameras. It offers a 1:1 reproduction ratio with a minimum focusing distance of 29.5 cm (11.6 inches) and a working distance of approximately 14 cm (5.5 inches), enabling life-size close-up shots with excellent detail and clarity.

The optical design includes 12 elements arranged in 7 groups, featuring one SLD element to suppress chromatic aberrations and color fringing. A Super Multi-Layer Coating reduces flare and ghosting, enhancing contrast and color fidelity even in challenging lighting conditions.

Autofocus and Handling

The integrated Hyper-Sonic Motor provides quick, quiet autofocus performance with an optimized AF algorithm for smooth focusing. Full-time manual focus override is available by simply rotating the focus ring. The focus limiter switch allows restricting the focus range to three zones (29.5 cm to 50 cm, 50 cm to infinity, or full range) to improve autofocus speed and precision.

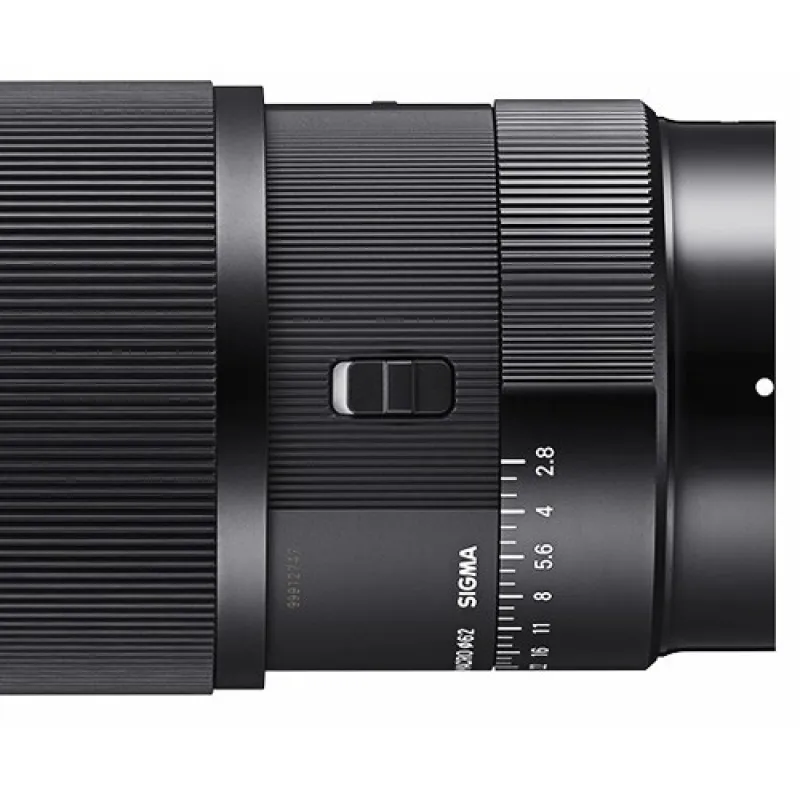

The lens features a physical aperture ring with a de-click switch for smooth, silent aperture adjustments ideal for video recording. An aperture ring lock switch prevents accidental aperture changes. The customizable AFL button expands operational control options.

Additional Features

• Rounded nine-blade diaphragm produces pleasing bokeh quality
• Weather-resistant construction with a durable brass bayonet mount for improved mounting accuracy and rigidity
• Compatible with optional Sigma TC-1411 and TC-2011 teleconverters to increase magnification without reducing working distance
• Supports Sigma UD-11 USB Dock for firmware updates and fine-tuning lens characteristics

Specifications

• Focal Length: 105 mm
• Maximum Aperture: f/2.8
• Minimum Aperture: f/22
• Lens Mount: Leica L
• Format Compatibility: Full-Frame
• Angle of View: 23.3°
• Minimum Focus Distance: 29.5 cm (11.6 inches)
• Maximum Magnification: 1x (1:1 macro reproduction ratio)
• Optical Design: 12 elements in 7 groups
• Diaphragm Blades: 9, rounded
• Focus Type: Autofocus with full-time manual override
• Image Stabilization: No
• Filter Size: 62 mm (front)
• Dimensions (Diameter x Length): 74 x 134 mm (2.9 x 5.3 inches)
• Weight: 715 g (1.6 lb)
