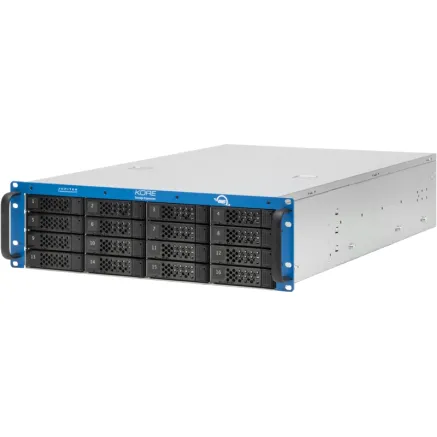

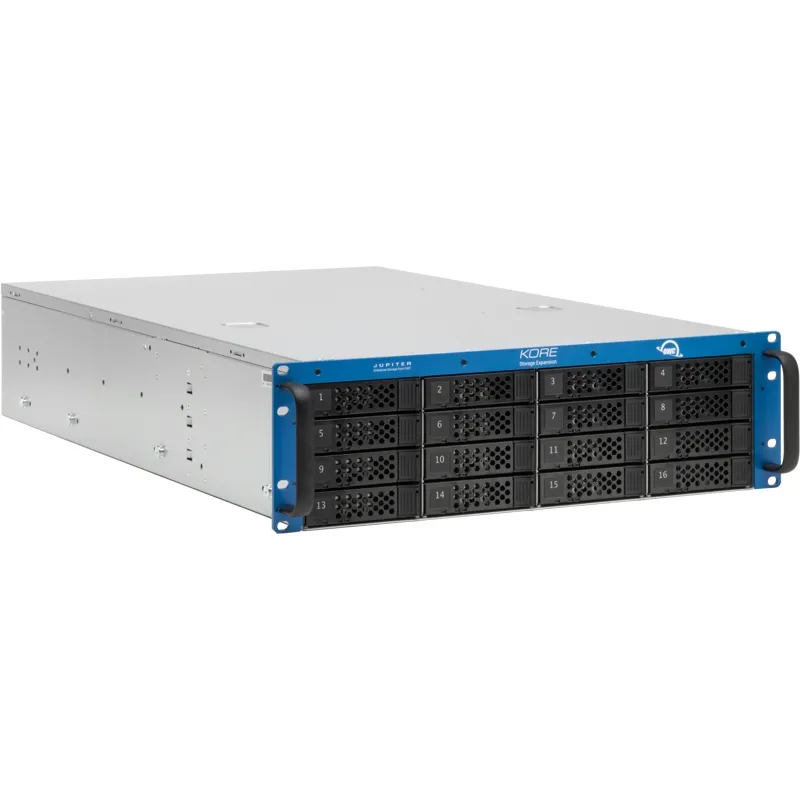

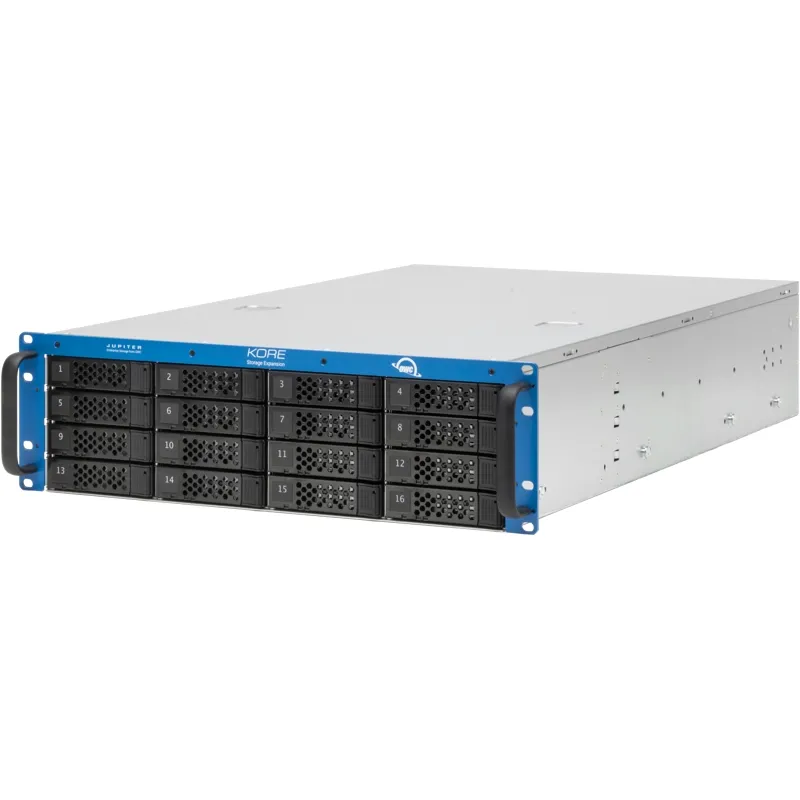

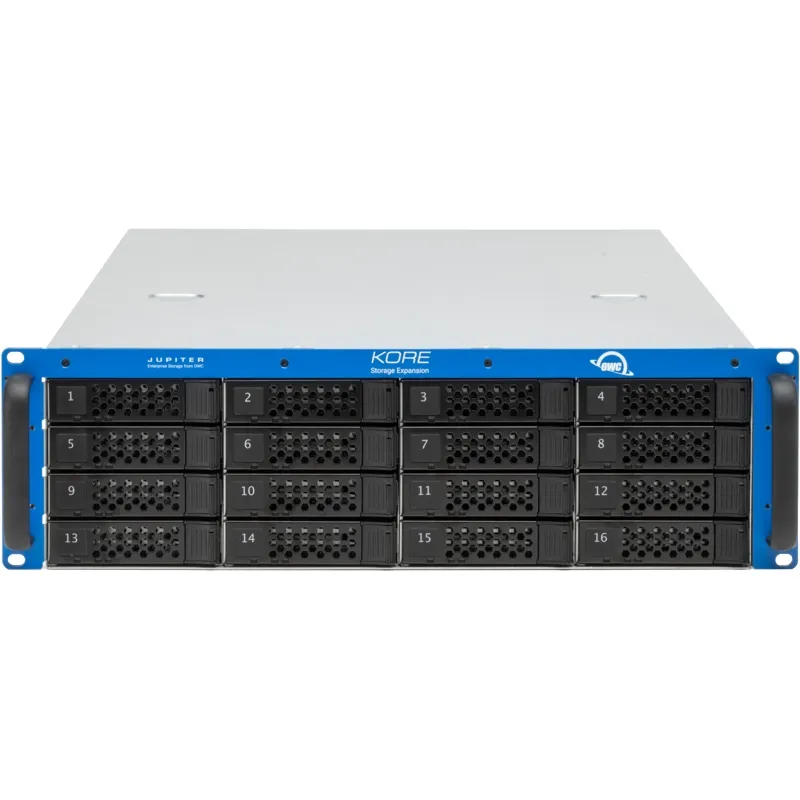

OWC Jupiter Kore 2U/3U NAS SSD Rack Storage Expansion
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Network Attached Storage (NAS) |
| Capacity | 32TB |
| Color | Black |
| Media type | Network Attached Storage (NAS) |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
OWC Jupiter Kore Enterprise-Class Storage
Upgrade your workflow with the performance, capacity, reliability, and affordability of OWC Jupiter Kore enterprise-class storage. Featuring two Mini-SAS HD interface ports, each delivering 48Gb/s of pure performance, this system enables high-speed data transfer for demanding workflows.
Storage Expansion Features
- Rack-Mounted Form Factor: 2U (8 drives) and 3U (16 drives)
- 12Gb Mini-SAS HD Interface Performance
- Storage Capacity Options: 16-64TB SSD or 32-320TB HDD
- Expandable up to 2.5PB with a single Callisto service and up to 7 Kore units
- Compatible with Mac, PC, and Linux systems
High-Speed Mini-SAS HD Connectivity
Utilize dual Mini-SAS HD ports in tandem for exceptional performance speeds up to 96Gb/s, or use the second port to add additional JBOD storage capacity. Kore can also expand existing RAID systems such as the OWC Jupiter Callisto.
Capacity and Scalability
OWC Jupiter Kore offers vast direct-attached or expansion storage capacity, with up to 160TB in a 2U 8-drive rack and up to 320TB in a 3U 16-drive rack. Additional Kore systems can be attached via Mini-SAS to scale capacity up to 2.5PB on 3U systems.
RAID and Workflow Optimization
Kore is ideal for high-performance RAID storage when connected to Mini-SAS RAID controller cards and adapters. It also extends storage for networked storage servers like the OWC Jupiter Callisto, accelerating workflows such as video ingestion, editing multiple streams, and large data transfers.
Form Factor and Installation Flexibility
Choose between 8-drive 2U racks or 16-drive 3U racks to fit your space and capacity requirements, whether building new or integrating into existing systems.
Reliability and Maintenance
- Hot-Swappable Drives and Fans: Replace or upgrade components without downtime

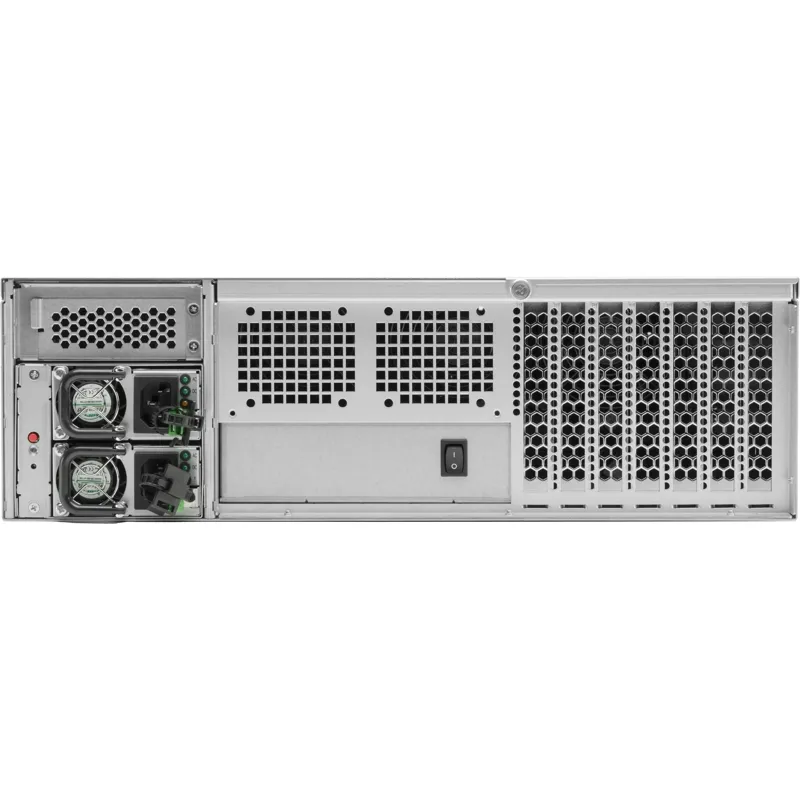

- Redundant Power Supplies: 1+1 (2U) or 2+1 (3U) redundant, hot-swappable, load-balanced power supplies ensure 24/7 operation
Technical Specifications - 8 Drive (2U)
- Rack Space: 2U
- Internal Raw Capacity: 16-32TB SSD or 32-160TB HDD
- Dimensions (W×H×D): 48.0 cm × 9.4 cm × 73.7 cm
- Weight (without drives): 13.56 kg
- Connectivity: (2) Mini-SAS HD (12Gb/s) SFF-8644 ports
- Channels: (8) 12Gb/s SAS-3 compliant, 96Gb/s total bandwidth (48Gb/s per port)
- Power Supply: 380W high-efficiency 1+1 redundant, 90~264 VAC full-range auto-switching
- Operating Environment: 0°C to 40°C, 20% to 95% non-condensing humidity
- Storage Environment: -20°C to 80°C, 10% to 95% non-condensing humidity
- Warranty: 3 years limited, expandable up to 5 years
Technical Specifications - 16 Drive (3U)
- Rack Space: 3U
- Internal Raw Capacity: 32-64TB SSD or 64-320TB HDD
- Expandable Storage: Up to 2.5PB via Mini-SAS expansion
- Dimensions (W×H×D): 48.0 cm × 13.2 cm × 73.7 cm
- Weight (without drives): 18.37 kg
- Connectivity: (2) Mini-SAS HD (12Gb/s) SFF-8644 ports
- Channels: (8) 12Gb/s SAS-3 compliant, 96Gb/s total bandwidth (48Gb/s per port)
- Power Supply: 650W 2+1 redundant active PFC, 90~264 VAC full-range auto-switching
- Operating Environment: 0°C to 40°C, 20% to 95% non-condensing humidity
- Storage Environment: -20°C to 70°C, 10% to 95% non-condensing humidity
- Warranty: 3 years limited, expandable up to 5 years
