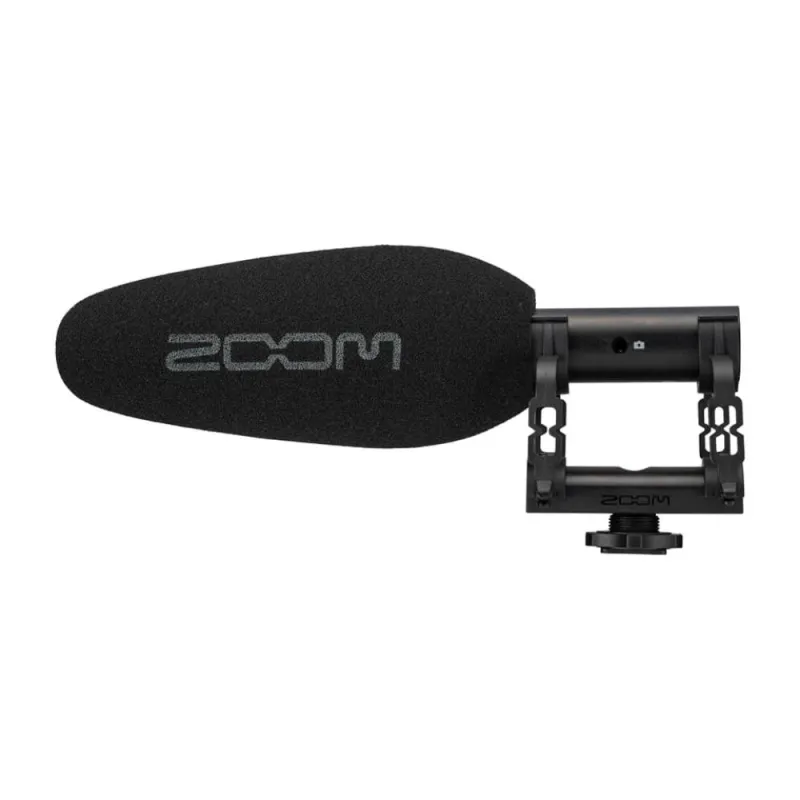

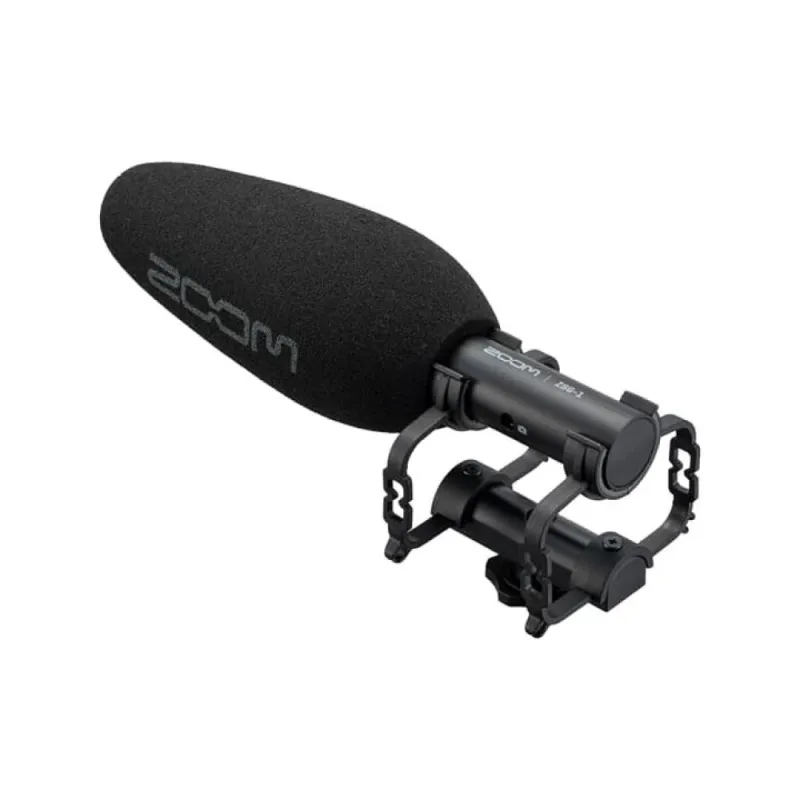

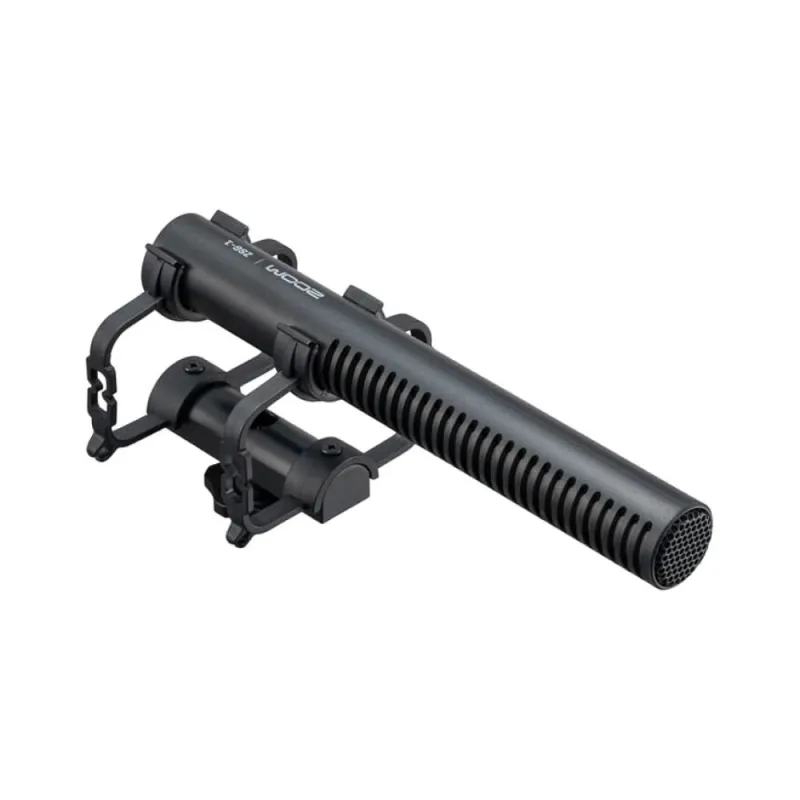

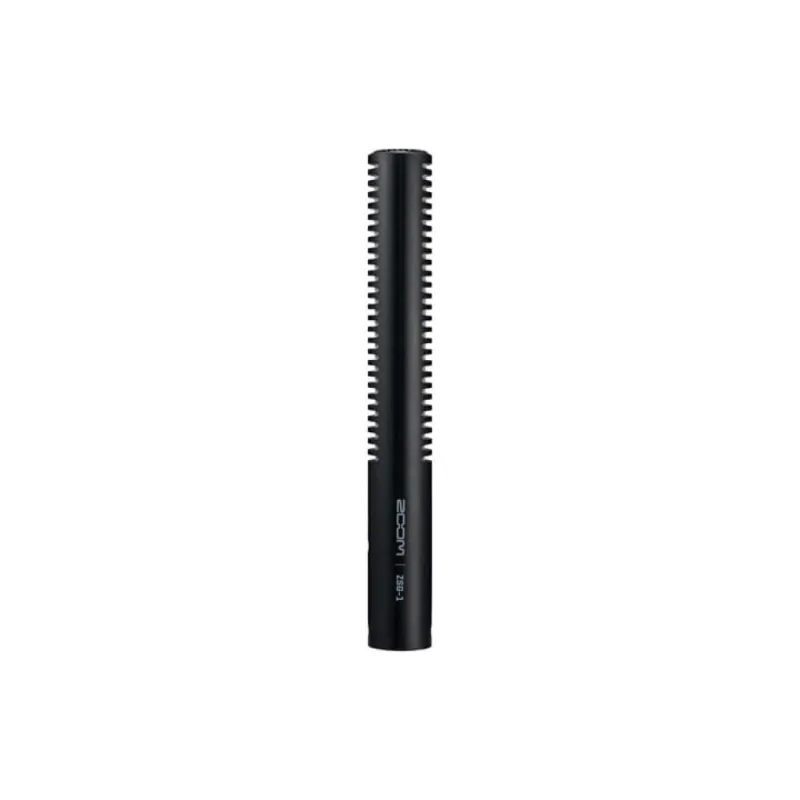

Zoom ZSG-1 Camera Shotgun Microphone

Zoom ZSG-1

The Zoom ZSG-1 is an on-camera shotgun microphone designed to enhance audio quality for creators. It is lightweight and highly directional, delivering excellent sound performance across various content capture scenarios.

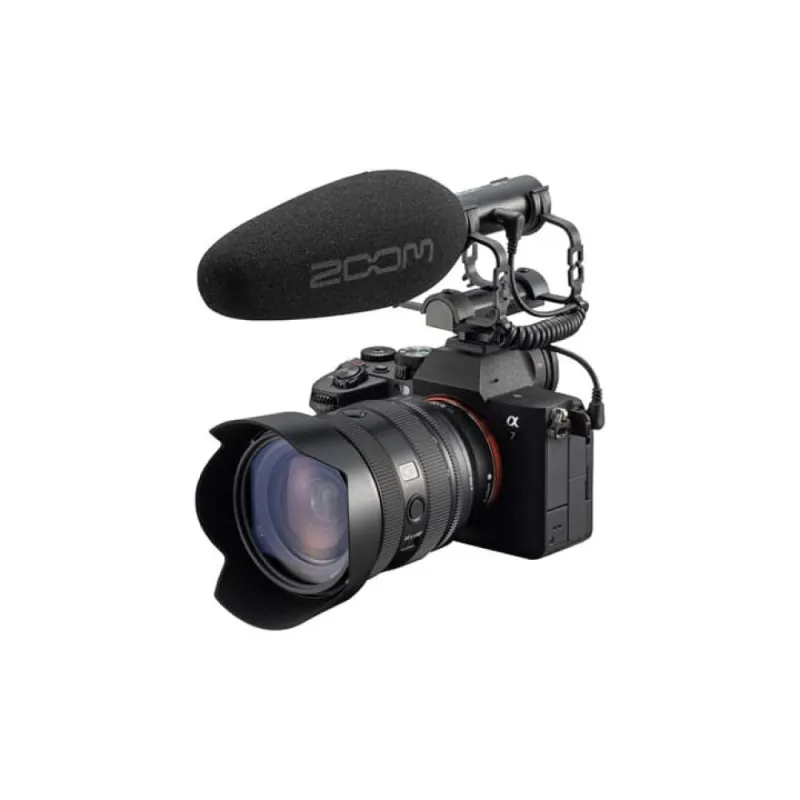

Camera Ready

The ZSG-1 mounts easily to your camera's hot shoe, making it ideal for creators on the move. It includes a 3.5 mm stereo mini cable to connect directly to your camera, allowing you to record high-quality audio synchronized with your video.

Phone Compatible

While phone cameras offer great 4K video capabilities, their built-in microphones often lack quality. The ZSG-1 shotgun microphone significantly improves audio capture for social media content and mobile videos.

Off-Camera Use

The microphone can also be used off-camera with accessories such as a boom pole or pistol grip. When connected to an external recorder, it provides a versatile solution for location audio recording.

Focused Sound Capture

Featuring off-axis rejection and a tailored frequency response, the mono ZSG-1 is designed for highly directional audio capture, minimizing background noise. This makes it ideal for recording dialogue and sound effects.

Lightweight Design

Weighing only 94 grams, the ZSG-1 keeps your setup light and portable, supporting mobility during shoots.

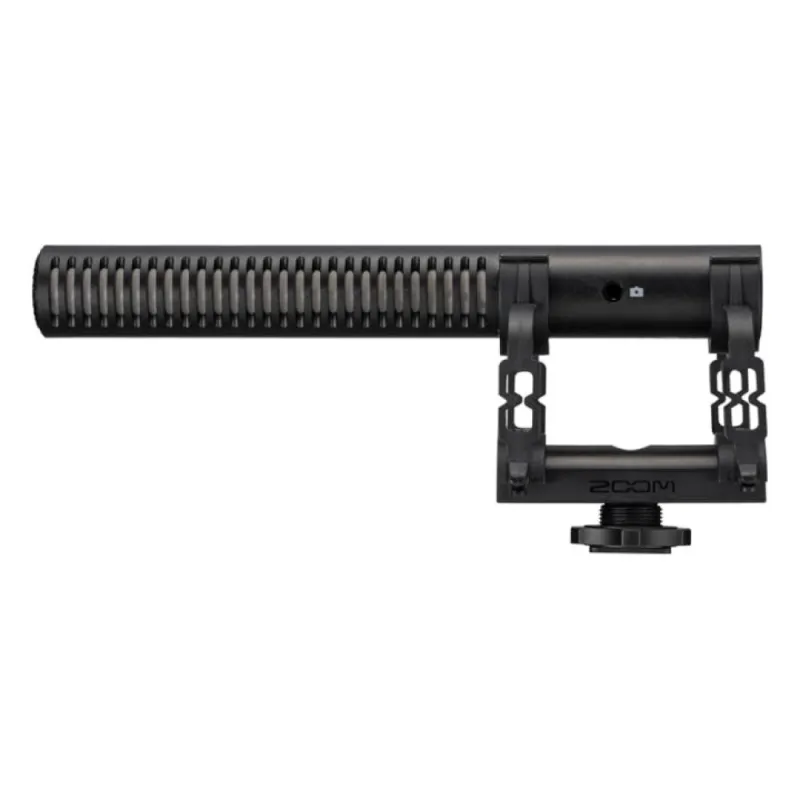

Shock Mount Included

The package includes a specially designed shock mount (SMM-3) to reduce handling noise and vibrations, ensuring cleaner audio recordings.

Included Accessories

• ZSG-1 Shotgun Microphone
• SMM-3 Shock Mount
• WSM-3 Windscreen
• 3.5 mm Stereo Mini Cable

Technical Specifications

• Microphone Type: Back electret condenser
• Polar Pattern: Super-cardioid
• Diaphragm Diameter: 14 mm
• Frequency Range: 50 Hz – 20 kHz
• Sensitivity: -31 ± 2 dBV/Pa
• Maximum SPL: 118 dB SPL (THD ≤ 1%, 1 kHz)
• Equivalent Input Noise (EIN): < 24 dB SPL (A-weighted)
• Signal-to-Noise Ratio: 70 dB
• Output Impedance: 2.2 kΩ
• Output Connector: Stereo mini jack
• Power Supply: Plug-in power (2 – 5 V)
• Dimensions: 22.6 mm diameter × 177 mm length
• Weight: 94 g

Additional Features

• Stereo microphone: No
• Windscreen included: Yes
• Spider shock mount included: Yes
• Microphone connection: Mini-Jack
