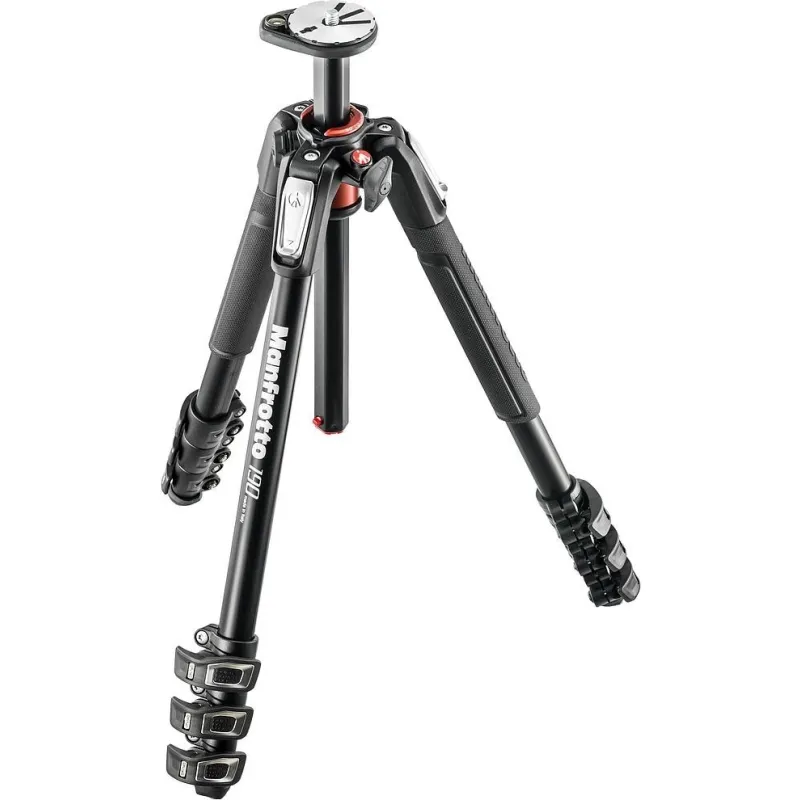

Manfrotto MT190XPRO4 Aluminium Tripod with 90° Center Column

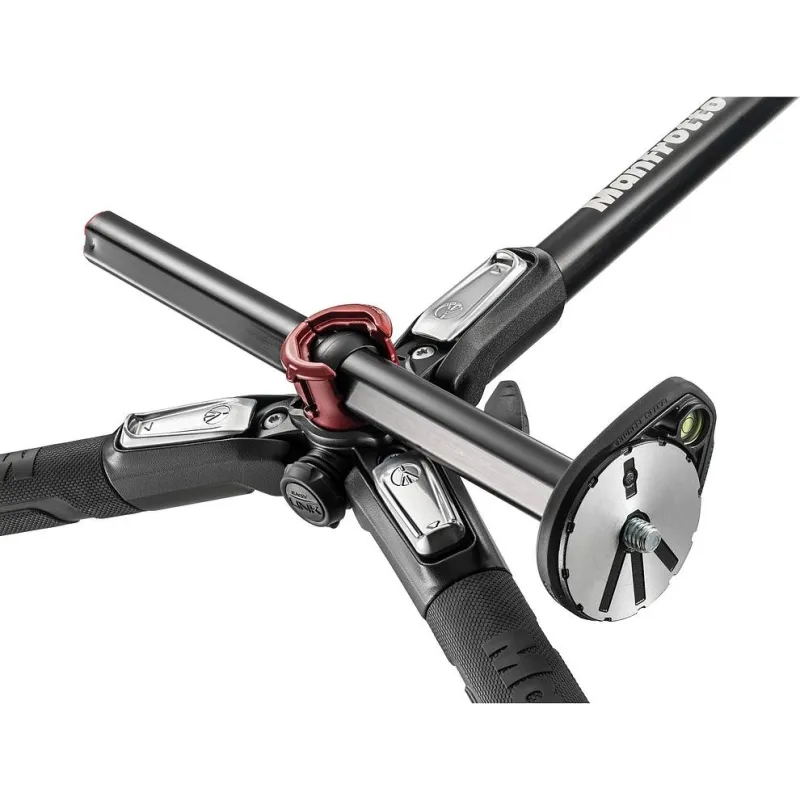

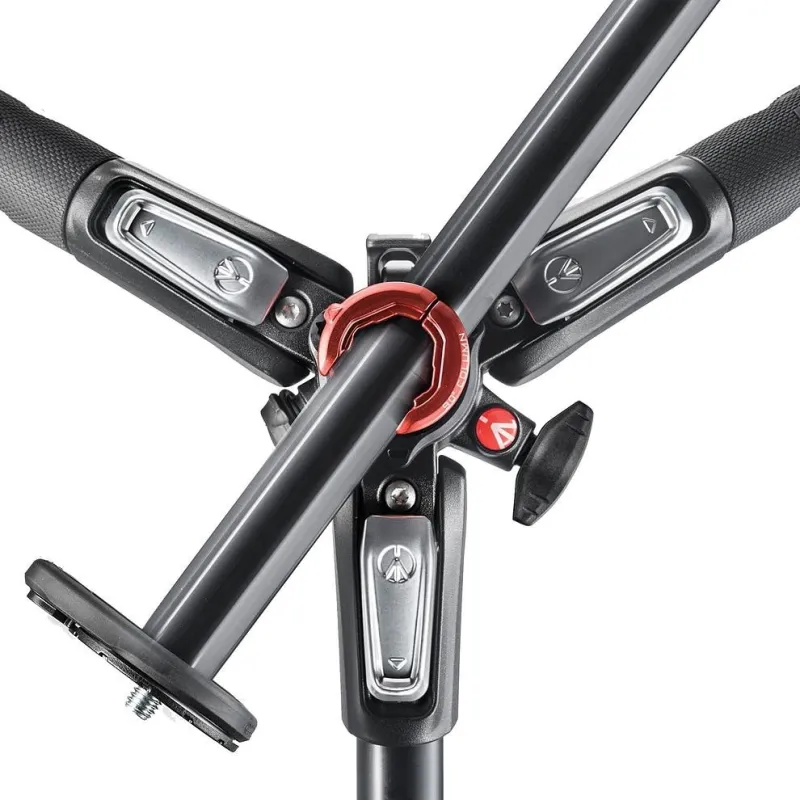

Versatile 90° Center Column Mechanism

The Manfrotto MT190XPRO4 tripod features a unique 90° center column mechanism that allows the column to be extended vertically or horizontally. This design opens up a wide range of framing and shooting possibilities, making it suitable for diverse photography and video applications. The horizontal column is housed compactly within the tripod's top casting and can be quickly extended without disassembly, even with a camera attached.

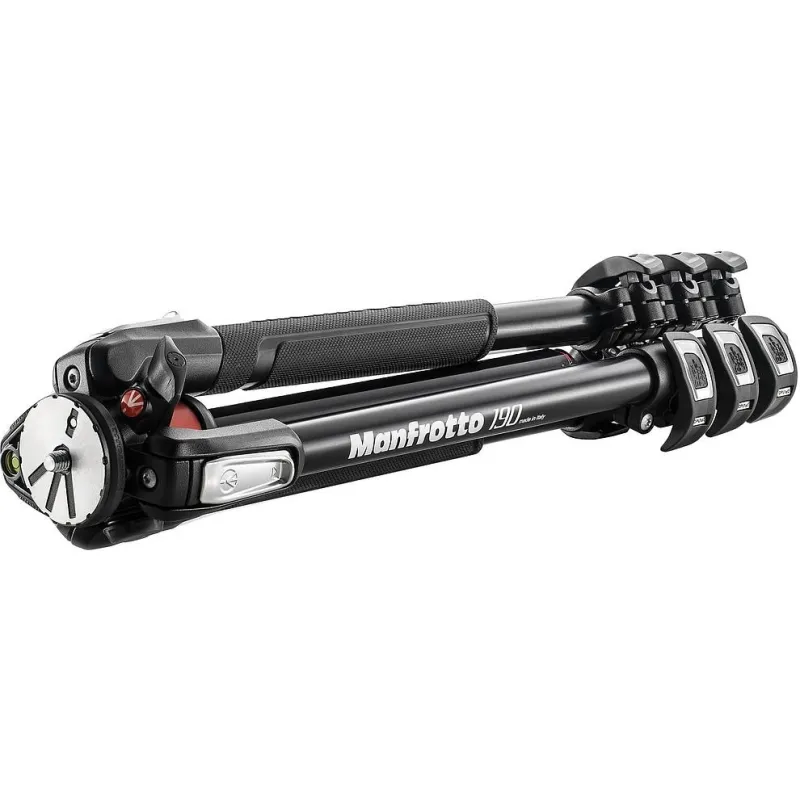

Compact and Portable Design

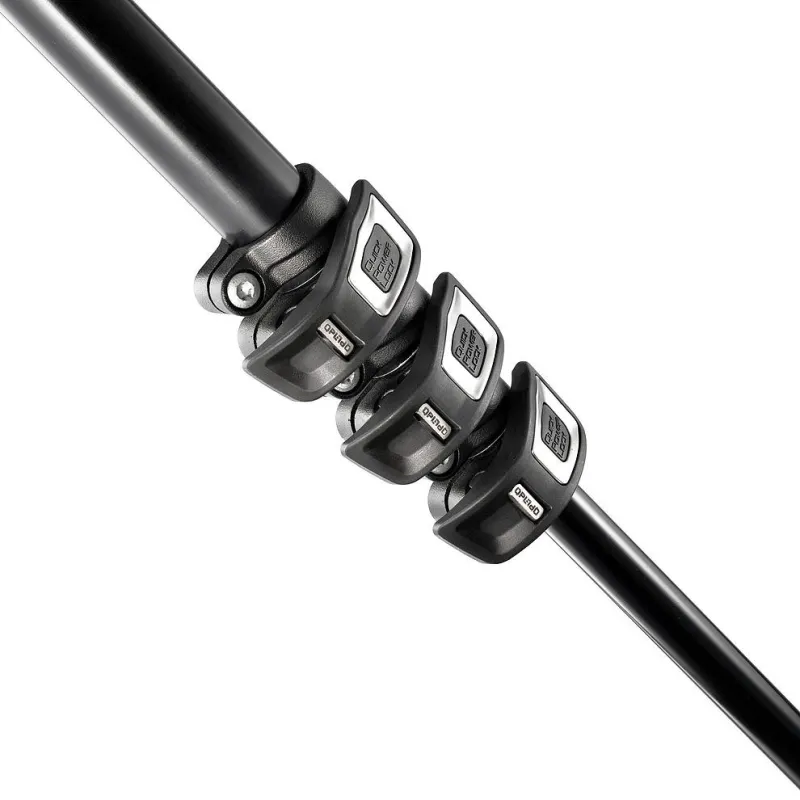

The tripod's 4-section aluminium legs contribute to its compactness, reducing the closed length by 16 cm compared to previous 190 models. This makes it ideal for traveling photographers. The legs extend and adjust quickly using Quick Power Lock (QPL) levers, which provide a comfortable, strong single-handed grip and more powerful locking for enhanced stability and rigidity.

Leg Angle Adjustment

Ergonomic leg angle selectors allow each leg to be independently and securely set to preset angles of 25°, 46°, 66°, or 88°, offering considerable positioning freedom.

Precision and Convenience Features

• Built-in bubble level on the top of the center column for precise framing, which rotates freely to remain visible and unobstructed.

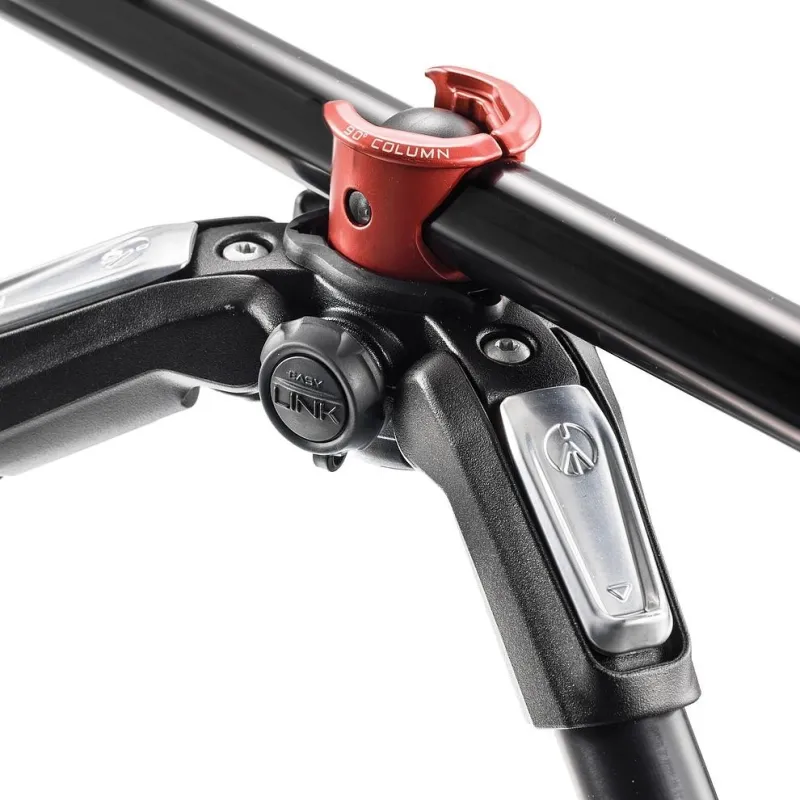

• Easy Link connector on the top casting supports photo or video accessories such as LED lights, flashes, or reflectors, enabling a practical mobile studio setup.

Technical Specifications

• Material: Aluminium
• Weight: 2050 g
• Maximum Payload: 7 kg
• Leg Tube Diameters: 26, 22.5, 19, 15.5 mm
• Leg Sections: 4
• Leg Angles: 25°, 46°, 66°, 88°
• Top Attachment: 3/8" screw
• Minimum Height: 8 cm
• Maximum Height: 160 cm
• Maximum Height with Center Column Down: 135 cm
• Closed Length: 49 cm
• Upper Disc Diameter: 60 mm
• Bubble Spirit Level: 1
• Center Column: Rapid
• Color: Black
• Leg Type: Single
• Leg Lock Type: Flip Lock
• Maximum Working Temperature: 60 °C
• Minimum Working Temperature: -30 °C

User-Friendly Operation

The tripod allows switching between vertical and horizontal column orientation without removing the camera, saving time and simplifying workflow. The QPL levers enable quick and secure leg section adjustments with a single movement. The tripod is designed to be lightweight, portable, and easy to set up and disassemble.
