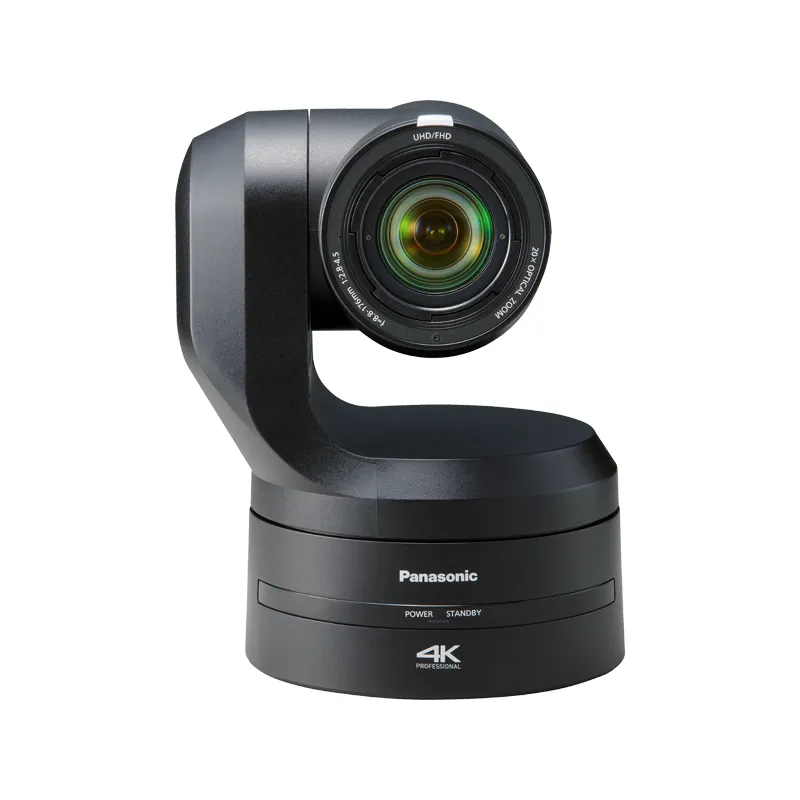

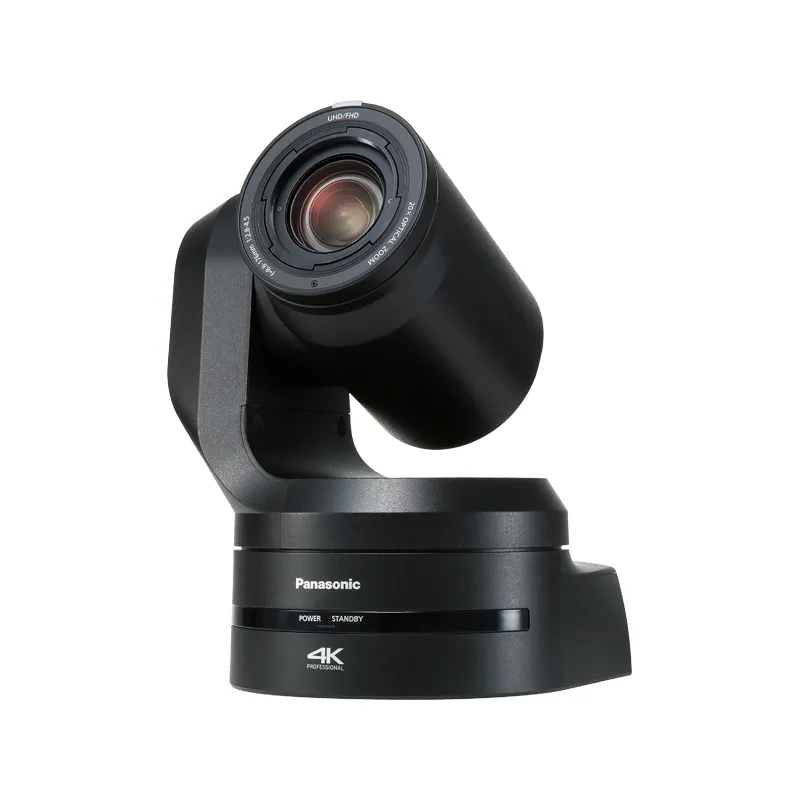

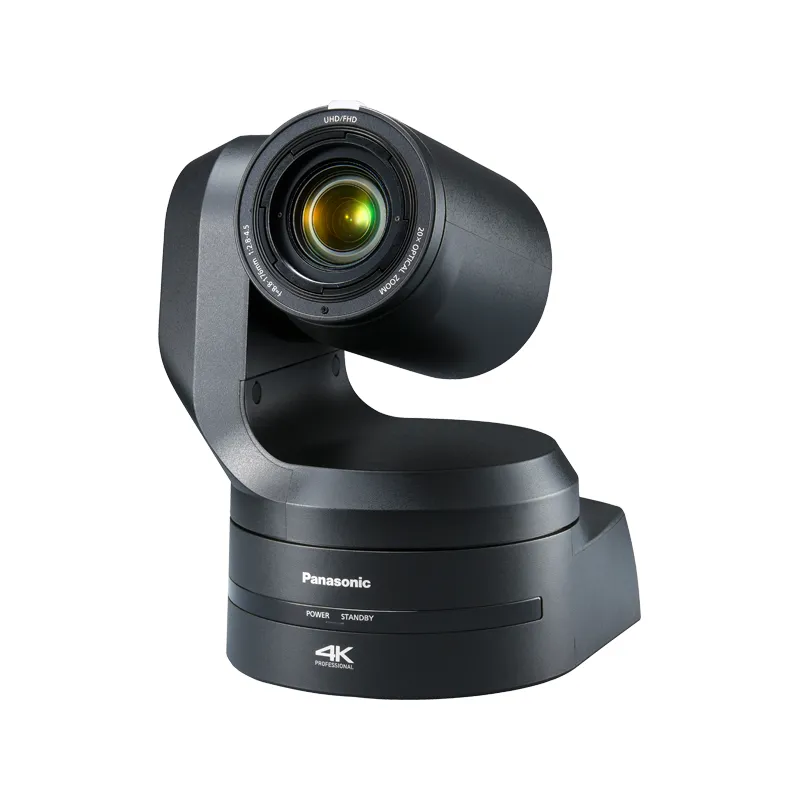

PANASONIC AW-UE150AKEJ 4K INTEGRATED PTZ CAMERA, BLACK AW-UE150AKEJ
- Color black
- CMOS Sensor 4k (3840 x 2160) qfhd
- Type of Product ptz camera
- Video Resolution 4k
- Optical Zoom 20x
- Digital Zoom 10x
- Video Interface hdmi
- Video Interface 3g-sdi
- Video Interface 12g-sdi
- Video Interface optical fiber
- Tracking auto tracking
- Features genlockable
- Features on-board record
- Features wide dynamic range
- Features 3d noise reduction
- PoE Technology poe++
- IP Video srt
- IP Video rtmp
- IP Video rtsp
- IP Video onvif
- Control Protocol rs-422
- Control Protocol ip
- Angle Of View 75 degree
- Color black
- CMOS Sensor 4k (3840 x 2160) qfhd
- Type of Product ptz camera
- Video Resolution 4k
- Optical Zoom 20x
- Digital Zoom 10x
- Video Interface hdmi
- Video Interface 3g-sdi
- Video Interface 12g-sdi
- Video Interface optical fiber
- Tracking auto tracking
- Features genlockable
- Features on-board record
- Features wide dynamic range
- Features 3d noise reduction
- PoE Technology poe++
- IP Video srt
- IP Video rtmp
- IP Video rtsp
- IP Video onvif
- Control Protocol rs-422
- Control Protocol ip
- Angle Of View 75 degree
AI ASSISTANT CHAT
Or ask about:
| Type of Product | PTZ Camera |
| CMOS Sensor | 4K (3840 x 2160) QFHD |
| Color | Black |
| Video Resolution | 4K |
| Optical Zoom | 20x |
| Digital Zoom | 10x |
| Video Interface | HDMI |
| Video Interface | 12G-SDI |
| Video Interface | 3G-SDI |
| Video Interface | Optical Fiber |
| Tracking | Auto Tracking |
| Features | Genlockable |
| Features | Wide Dynamic Range |
| Features | On-Board Record |
| Features | 3D Noise Reduction |
| PoE Technology | PoE++ |
| IP Video | RTSP |
| IP Video | RTMP |
| IP Video | ONVIF |
| IP Video | SRT |
| Control Protocol | RS-422 |
| Control Protocol | IP |
| Angle Of View | 75 Degree |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Imaging and Outputs
The integrated lens offers a 24.5490 mm (35 mm equivalent) focal length with 20x optical zoom and i.Zoom for extended range. The horizontal angle of view ranges from 75.1 at wide to 4.0 at tele, suitable for various settings. Output formats include UHD up to 2160/59.94p or 50p, along with a full range of HD modes. Connectivity options feature HDMI 2.0 (422 10-bit), 12G-SDI, 3G-SDI, a dedicated HD monitor output, and an SFP+ optical fiber port mirroring the 12G-SDI feed. Genlock (black burst/tri-level) is available for synchronization, and a 3.5 mm mic/line input allows for audio embedding.
Network, Control, and PTZ Performance
This camera streams over IP in JPEG (MJPEG), H.264, and H.265 at resolutions up to 3840x2160, with selectable frame rates and bit rates for 50/60 Hz regions. Control is possible via IP and RS-422, supporting PoE++ power in addition to 12 V DC. The pan/tilt head provides a 175 pan range and a 30 to 210 tilt range, with speeds from 0.08/s for precise movements up to 180/s in high-speed mode. Operating noise is NC35 or less, with a minimum illumination of 2 lx (F2.8, 59.94p, 50 IRE, 42 dB) and standard sensitivity of F9 at 2000 lx. Gamma options include HLG and Filmlike/Video/Film Rec profiles. The camera can be installed on a desktop or suspended, featuring a black finish corresponding to the K variant.
Key Features
1-type 4K MOS sensor
UHD output up to 2160/59.94p and 50p; extensive HD formats including 1080/59.94p, 50p, PsF, interlaced, and 720p
20x optical zoom; i.Zoom 24x (UHD) / 32x (FHD); 10x digital zoom
35 mm-equivalent focal range 24.5490 mm
Horizontal angle of view 75.1 (wide) to 4.0 (tele)

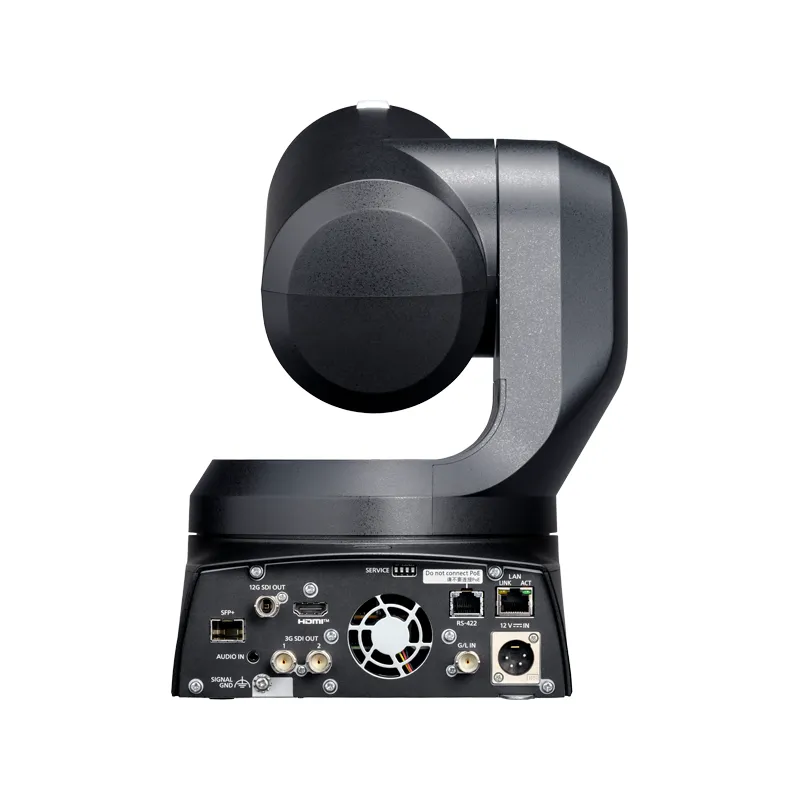

HDMI 2.0 422 10-bit; 12G-SDI; 3G-SDI; HD monitor out; SFP+ optical fiber (same signal as 12G-SDI)
Genlock input (black burst / tri-level)
IP streaming JPEG (MJPEG), H.264, H.265; resolutions up to 3840x2160
Audio embedding via 3.5 mm stereo mic/line input (plug-in power selectable)
Pan/tilt 175 pan; 30 to 210 tilt; 0.08/s to 60/s (normal), up to 180/s in high-speed mode
Minimum illumination 2 lx; standard sensitivity F9 at 2000 lx; S/N 60 dB or more
Power via PoE++ or 12 V DC; LAN and RS-422 control

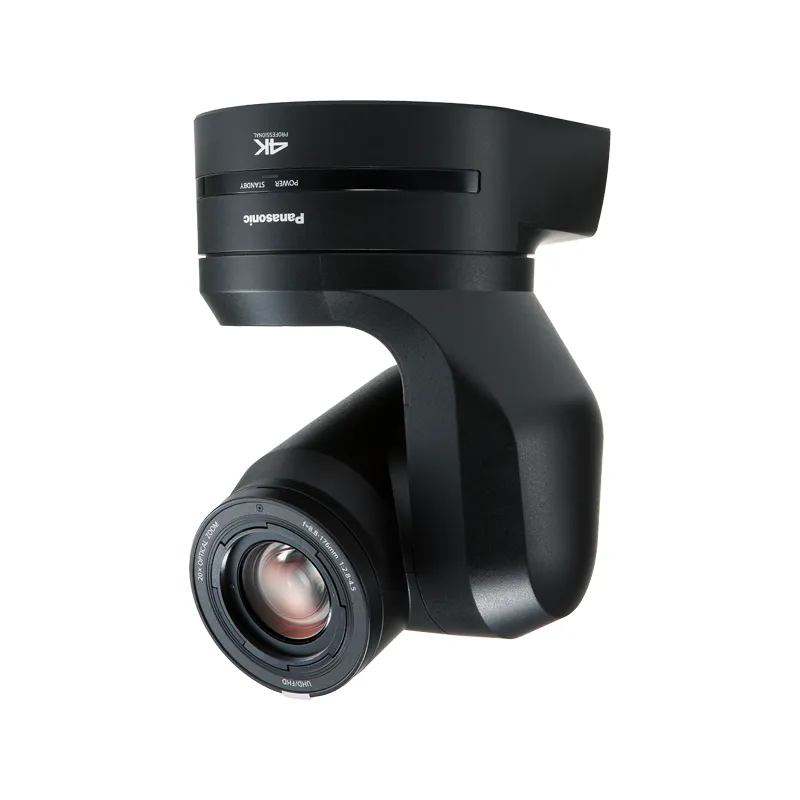

Approx. dimensions 213 x 267 x 219 mm; mass approx. 4.2 kg; desktop or suspended installation.
