TelyCam Explore B PTZ Camera 4K60 20x Zoom

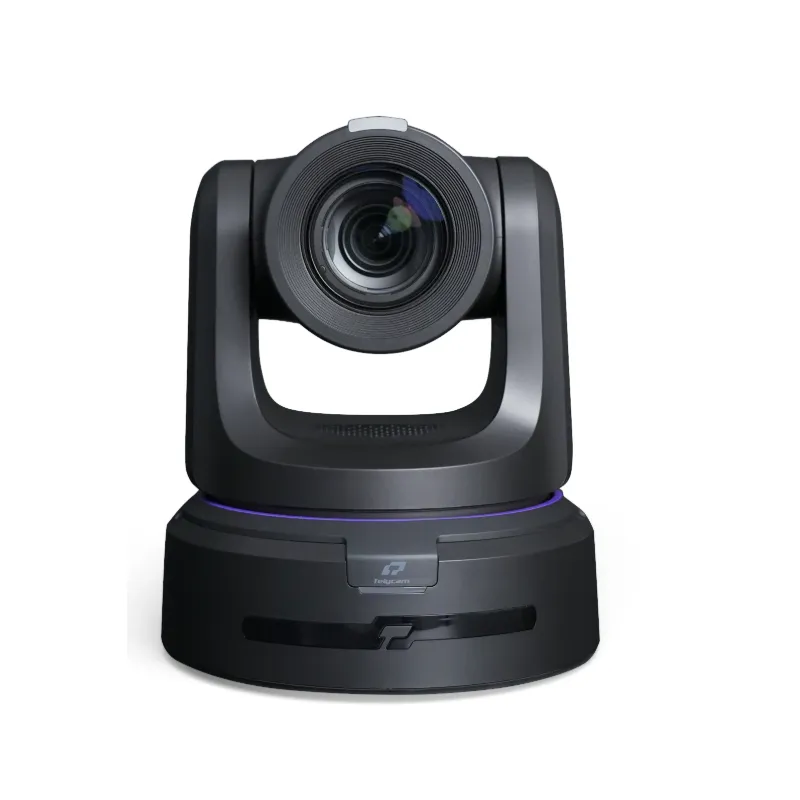

TelyCam Explore B PTZ Camera

The Telycam Explore B PTZ Camera is a flagship 4K60 professional PTZ camera featuring a 1/1.9MP sensor, 20x optical zoom, and advanced connectivity including NDI HX3, 12G-SDI, HDMI, USB-C, and SFP+. Designed for broadcast, live production, and high-end streaming, it delivers exceptional image quality with AI auto-tracking and GENLOCK support.

Equipped with a versatile 20x optical zoom lens (f9.7-9186.5mm, F2.8-F4.5), the camera offers a wide field of view ranging from 71° to narrow telephoto framing, making it suitable for large venues such as studios, sports arenas, lecture halls, and broadcast environments. Its advanced autofocus system, including PDAF (phase detection autofocus), ensures fast and precise focusing even during motion or zoom transitions.

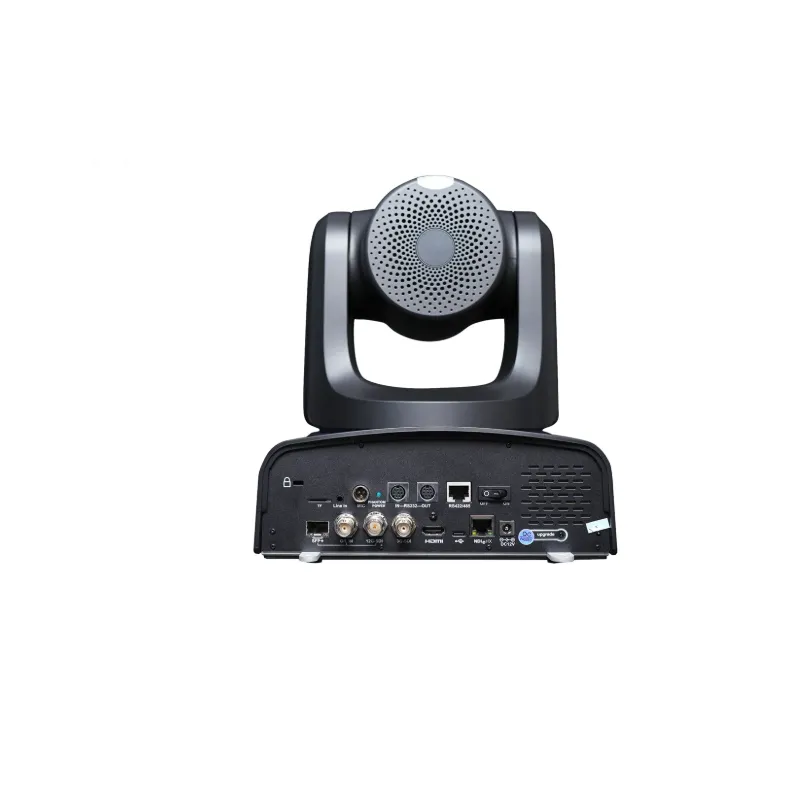

The Explore B stands out with its extensive connectivity options, supporting simultaneous outputs via NDI (including NDI HX2 and HX3), 12G-SDI, 3G-SDI, HDMI 2.0, USB-C, RJ45 Ethernet, and SFP+ 10G optical interface. This allows seamless integration into both IP-based and traditional SDI workflows, enabling flexible deployment across modern production infrastructures.

A key highlight is the inclusion of GENLOCK support, allowing frame synchronization with other cameras in multi-camera broadcast setups. Additionally, the built-in AI auto-tracking system enables the camera to automatically follow subjects without external control systems, making it ideal for presentations, events, and automated productions.

The camera also supports PoE++ (IEEE 802.3bt), simplifying installation by combining power, control, and data over a single cable. It includes a tally light for on-air indication, a built-in ND filter for exposure control, and microSD recording for local capture.

With support for protocols such as SRT, RTMP, RTSP, ONVIF, and FreeD, the Explore B integrates easily into streaming platforms and virtual production environments. Its robust construction, advanced optics, and professional-grade features make it a flagship solution for demanding production scenarios.

Key Features

• 4K UHD resolution up to 60 fps
• 1/1.9MP CMOS sensor with high dynamic range
• 20x optical zoom with PDAF autofocus
• AI auto-tracking for subject following
• Extensive connectivity NDI HX2/HX3, 12G-SDI, 3G-SDI, HDMI 2.0, USB-C, SFP+
• GENLOCK support for multi-camera synchronization
• Supports SRT, RTMP, RTSP, ONVIF, FreeD protocols
• PoE++ (IEEE 802.3bt) for simplified installation
• Built-in ND filter and tally light
• MicroSD card recording support
• Designed for broadcast, live events, and virtual production

Included Accessories

• 1 Telycam Explore B PTZ Camera
• 1 Power cable
• 1 RS232 control cable
• 1 Remote control
• 1 User manual

Specifications

• Sensor: 1/1 UHD CMOS, 9 MP
• Max Resolution: Up to 3840 x 2160 60 fps
• Optical Zoom: 20x
• Lens: f9.7-9186.5 mm, F2.8-F4.5
• Field of View: 71° (wide) to 4.05° (tele)
• Minimum Focus Distance: 0.15 m
• Minimum Illumination: 0.5 lux
• Video Outputs: NDI, NDI HX, 12G-SDI, 3G-SDI, HDMI 2.0, USB-C, RJ45, SFP+
• Streaming Protocols: NDI HX2/HX3, SRT, RTSP, RTMP, ONVIF, FreeD
• Video Codecs: H.264, H.265, SpeedHQ
• Pan Range: -176° to +176°
• Tilt Range: -90° to +90°
• Pan/Tilt Speed: Up to 80°/s
• Presets: Up to 128
• Audio Inputs: Mini XLR (with phantom power), 3.5mm line-in
• Storage: MicroSD card (1 slot)
• Network: RJ45 Gigabit Ethernet + SFP+ 10G
• Power Supply: DC 12V / PoE++ (IEEE802.3bt)
• Power Consumption: 60W
• Operating Temperature: -10°C to 50°C
• Dimensions: 232 x 264 x 269 mm
• Weight: 4.6 kg
• Color: Black
