Saramonic SoundBird V1 capacitive microphone with XLR connector

Saramonic SoundBird V1 Overview

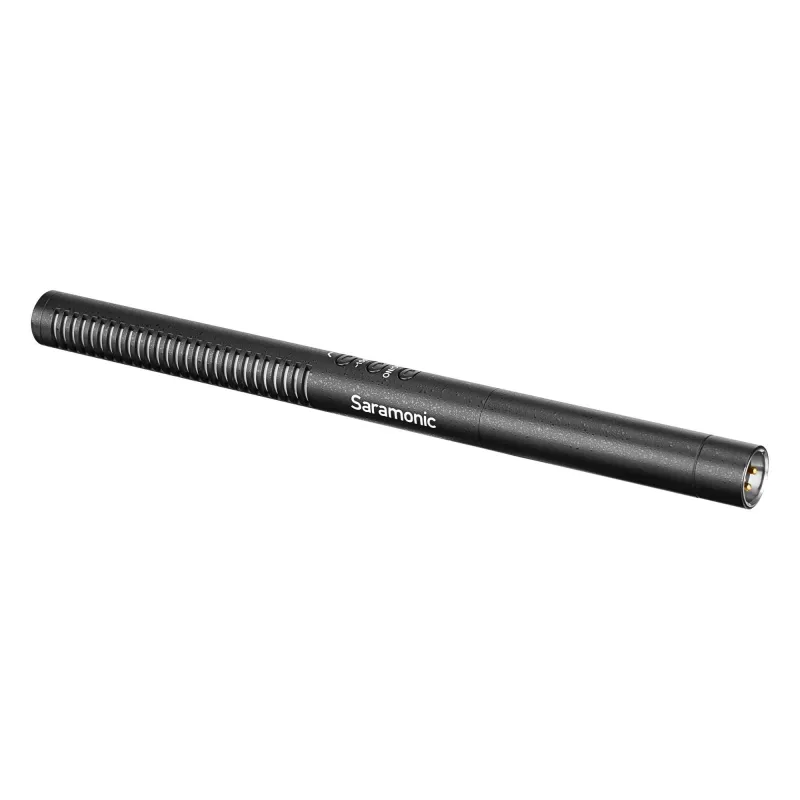

Saramonic SoundBird V1 is a professional shotgun microphone that provides high-quality sound and advanced functionality with the included accessories. It is an interesting solution for filmmakers, sound operators, and vloggers.

The Advantages of the Microphone

The microphone features a super-cardioid, directional transducer that allows you to capture sounds clearly in front of the microphone from a greater distance, while rejecting unwanted sound from the side and back. The all-brass construction is incredibly durable and helps reduce radio frequency interference. The XLR output is gold-plated for corrosion resistance and the best possible signal transfer. The 272 mm length is ideal for mounting on a professional camera or for use on a boom pole and racks.

Match Your Image with Excellent Sound

You will always know what settings are used in your versatile SoundBird V1, because the built-in buttons are illuminated. The first button activates a high-pass filter that removes unwanted low-frequency sounds such as HVAC rumble, footsteps, and street noise. The second button activates the pad with a value of -10dB, which allows the capture of louder sounds without distortion. The third button is On/Off, which controls the internal AA battery. When SoundBird V1 is powered by external phantom power, the On/Off button lights up green. When powered by the internal AA battery, the On/Off button lights up blue. When the battery is discharged, the On/Off button lights up red. The microphone also remembers the button settings when you turn it off and on.

Necessary Accessories Included

The box contains several useful accessories, such as:

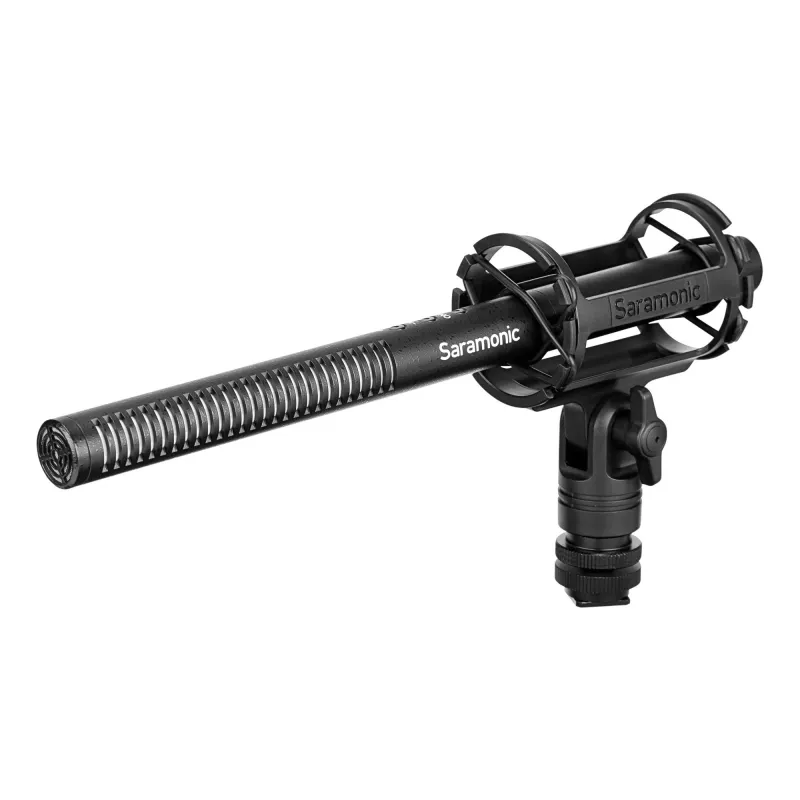

• An adjustable premium cushioning mount that allows you to attach the SoundBird V1 to the camera foot or to the boom and stand.
• A shock absorber that eliminates vibration and noise during handling.
• A foam cover that dissipates the noise of rushing air when used indoors and a gentle breeze when used outdoors.
• A 61 cm XLR cable that is ideal for camera mounting.

Specification

Microphone Type: Condenser
Polar Pattern: Super-cardioid
Frequency Range: 50 Hz to 20 kHz
Affectation: -32 3dB (0dB-1V / Pa, at 1kHz)
Signal-to-Noise Ratio: 80 dB SPL
Maximum SPL: 132dB
High Pass Filter: 200 Hz
Pad: -10dB
Power Supply Requirements: Phantom power supply 48 V or 1 x AA battery
Operating Temperature: From -5 °C to 50 °C

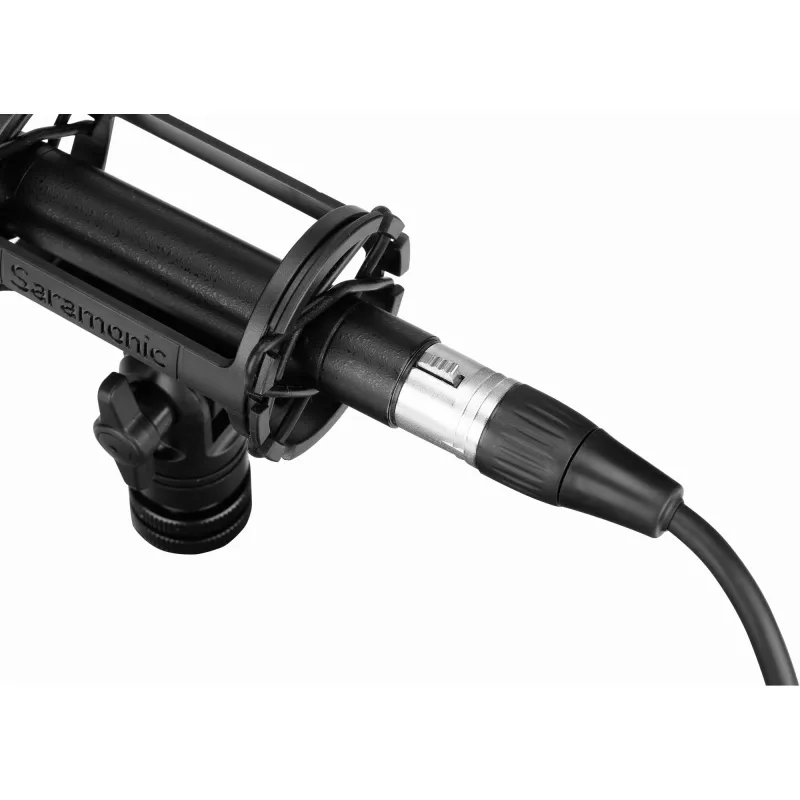

Output Connection: 3-pin XLR, symmetrical output between pin 2 (+), pin 3 (-), and pin 1 (ground)
Diameter: 20 mm
Length: 272 mm
Weight: 195 g

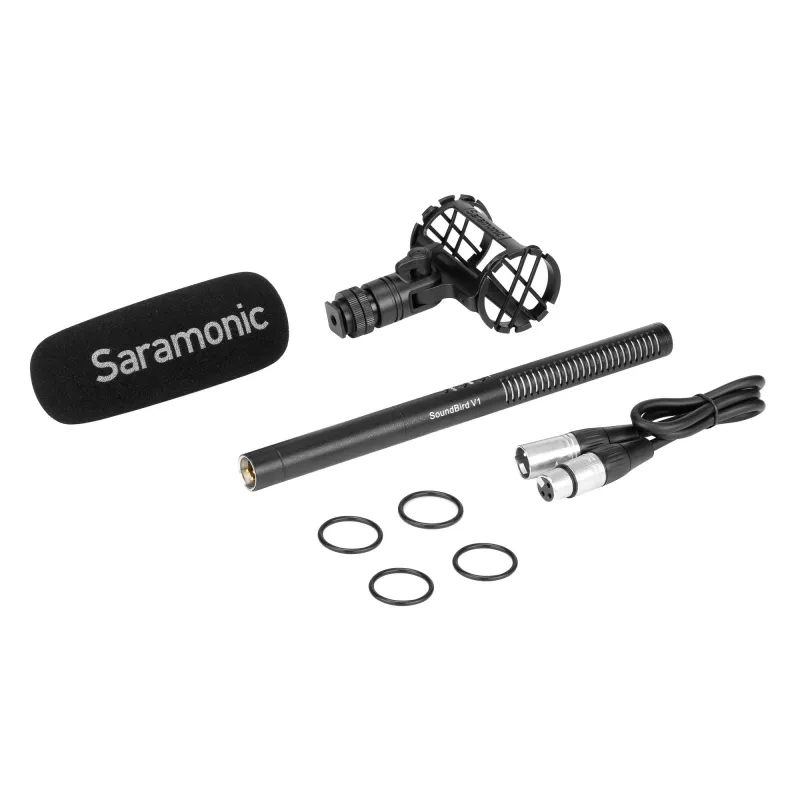

Set Contents

• SoundBird V1 microphone
• Male to female cable XLR
• Foam casing
• Bracket SR-SMC2
• 4 x spare fixing clamps
