Tilta HDA-T08-MK-R2 Hydra Arm Mini Modification Kit for DJI Ronin 2
The Tilta Hydra Arm Mini Modification Kit enhances the standard Tilta Hydra Arm Mini specifically for DJI Ronin 2 users, increasing the maximum payload capacity from approximately 7.7 kg to an impressive 13 kg. This upgrade significantly reduces high-frequency road vibrations by incorporating a steel-wire shock absorber head, a heavy-duty spring, a dedicated Ronin 2 quick-release mount, and dual stainless steel support cables, all configured within a two-section arm setup optimized for car-to-car and vehicle-mounted gimbal shots.
Vibration Reduction and Payload Enhancement
This kit replaces the original polyurethane dampers with steel-wire shock absorbers that effectively mitigate harsh vibrations caused by rough terrain and high-speed driving. The upgraded heavy-duty spring raises the safe working load to 13 kg, ensuring stable operation under heavier payloads.
Mounting and Stability Features
The included quick-release Ronin 2 adapter plate enables direct, tool-free mounting of the gimbal without the need for additional dovetail plates. Two 2-meter stainless steel support cables provide redundancy and enhance system stability during operation. Note that this modification restricts the Hydra Arm Mini to a two-section configuration only, requiring removal of the third extension to maintain safety at the increased payload.
Key Features
- Increases Hydra Arm Mini payload capacity to 13 kg (28.7 lb)

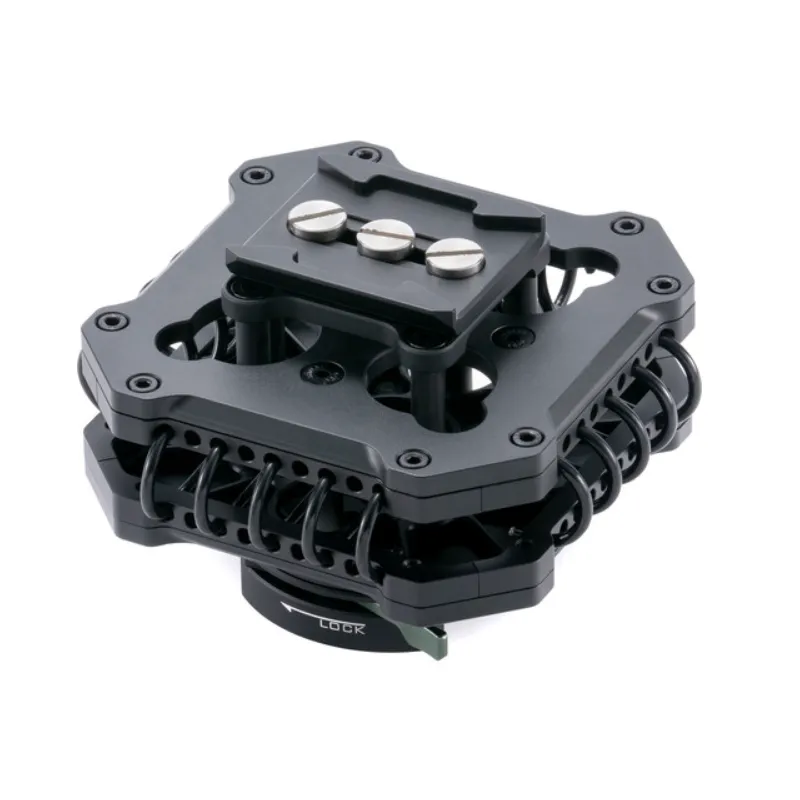

- Steel-wire shock absorber head for superior elimination of high-frequency vibrations

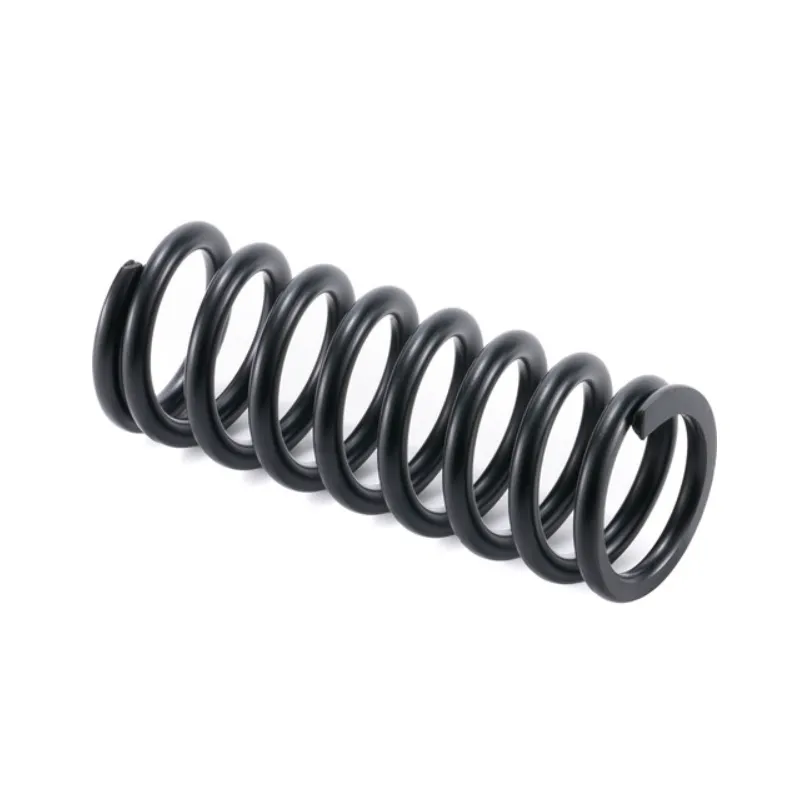

- Heavy-duty replacement spring included
- Dedicated quick-release mount adapter compatible with DJI Ronin 2
- Two 2-meter (6.6 ft) stainless steel support cables for added stability
- Maintains full tilt and pan functionality of the Ronin 2 gimbal
- Compatible only with two-section Hydra Arm Mini configuration (third section must be removed)

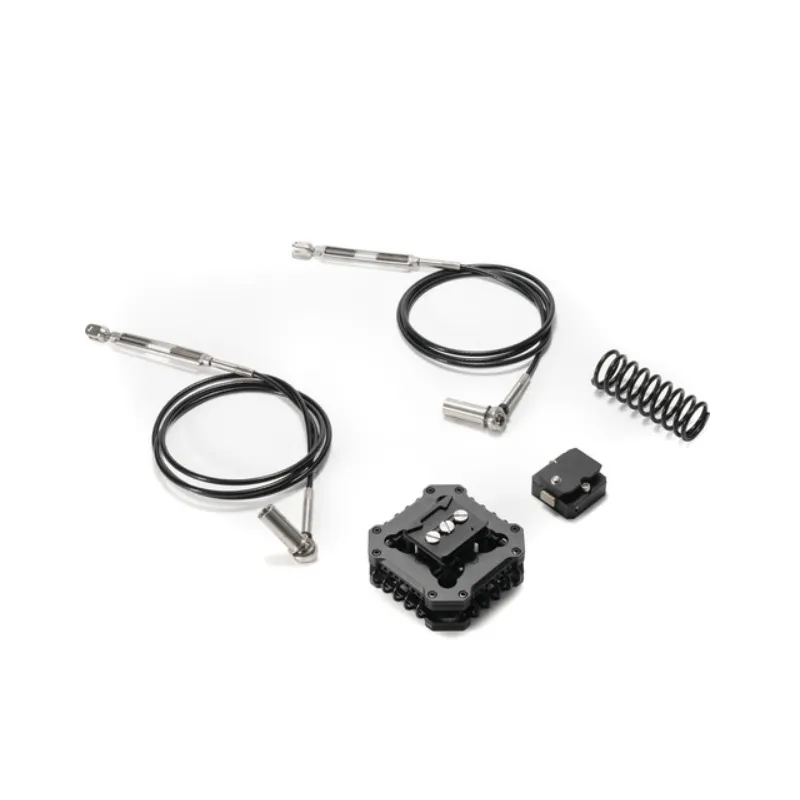

Included in the Kit
- 1 × Steel-wire shock absorber head
- 1 × Heavy-duty arm spring
- 1 × DJI Ronin 2 quick-release mount adapter
- 2 × Stainless steel support cables (2 m each)
- Mounting hardware and allen keys
Technical Specifications
- Compatibility: Tilta Hydra Arm Mini and DJI Ronin 2 only
- Maximum payload after modification: 13 kg (centered and balanced)
- Shock system: Steel-wire dampers replacing original polyurethane dampers
- Spring: Heavy-duty upgraded spring included
- Mount: Quick-release plate with Ronin 2 dovetail
- Support cables: Two 2-meter stainless steel cables
- Materials: CNC aluminum alloy and stainless steel
- Color: Tactical Gray
- Arm sections allowed: 2 (third section must be removed)
