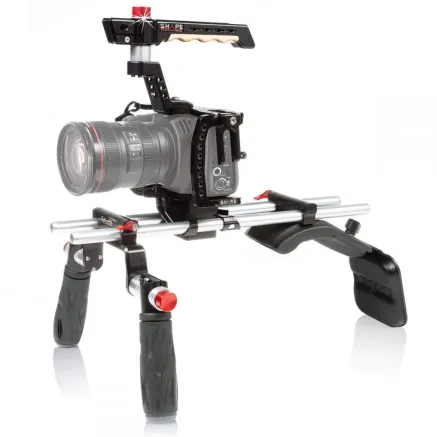

Shape Blackmagic Pocket Cinema 4K 6K Shoulder Mount (BM4KSM)

Shape Blackmagic Pocket Cinema 4K Shoulder Mount

The Shoulder Mount Kit features a CNC machined aluminum cage with 1/4"-20 threaded holes on the top and bottom to secure the Blackmagic Pocket Cinema 4K camera. This mount includes a top handle with a Push-Button, a 15 mm LW quick release rod base system, 1 pair of 18" 15 mm rods, a pair of quick handles with a Push-Button, a shoulder mount, and a back pad.

Camera Cage

The Camera Cage for Blackmagic Cinema Camera 4K provides a formfitting base for attaching accessories, handles, or grips to your BMCC 4K. All controls, ports, and slots remain accessible when the cage is mounted to your Blackmagic Cinema Camera 4K. It gives you easy access to the memory card, the battery door, the lens release button, and all other controls and outputs. The cage is designed with one cold shoe at the top to mount accessories like a microphone, magic arm, LED, or Top Handle. There are also multiple 1/4"-20, 3/8"-16 threaded holes with ARRI anti-twist threads to strongly secure the camera and accessories in place. Constructed from lightweight yet sturdy CNC-machined aluminum, the cage includes a left-side clamp to prevent your HDMI cable from accidentally disconnecting. A padded hand strap adds comfort when grasping the right side of the camera.

Removable Top Handle

The removable top handle is made of CNC Machined Aluminum and genuine Canadian maple wood to give you a solid and comfortable grip on your camera. It features patented Push-Button technology for fast adjustment. It is easy to strongly attach the top handle to the camera cage with the cold shoe attachment system. The top handle features the following mounting options to strongly attach more camera accessories: EVF mount, 1/4"-20 threaded holes with stoppers, and cold shoe brackets at the front and back of the handle. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle or top handle in the best position for your use. Push, adjust, release, and then it locks.

Quick Release Baseplate, Adjustable Rod Bloc System

The quick release baseplate can be used as a table stand or can be attached to a tripod. The bottom of the base block is designed with a removable Metabones® Support Bracket, perfect for supporting heavier lenses. The rod bloc travel height is adjustable with an Allen Key to allow optimal adjustment of your matte box, Follow Focus, and optical center. Rod clamps allow you to use available rod-mounted accessories.

15 mm 18" Rods

Pair of 15 mm rods 18" long that fit studio and LWS 15 mm rod clamps, allowing you to use available rod-mounted accessories. The rods are machined from hollow aluminum tubes and feature chamfered ends that make it easier to insert into 15 mm rod clamps, even if the rod isn't perfectly aligned or is at a slight angle to the rod clamp.

Quick Handle Rod Bloc

The Quick handle rod bloc is a professional video stabilization accessory with 2 camera handle grips, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple Push-Button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum rod bloc, the quick handle offers composite camera support for all 15 mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Bloc. The rod bloc is designed with 2 screw-threaded holes allowing the mounting of the Quick Handle. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then it locks.

Composite Mini Shoulder Pad

The mini composite shoulder pad is padded for superior comfort and is made of slip-free material. It is designed with a 15 mm rod block on top allowing to hold 15 mm rods for camera and accessories to be attached. The screw knob allows attaching a counter-weight. By adding extra male-female rods at the back, you can also attach a counter-weight behind the same rods. This way, your body can easily support the weight of the camera and its accessories. The shoulder pad is also the perfect solution for switching rapidly from shoulder to tripod without having to remove the shoulder pad. It can remain on the camera rig permanently.

Back Pad

The back pad features a powder-coated anodized aluminum plate and arm which are attached to thick padding on the side facing the user. It is compatible with the Mini Composite Shoulder Pad and can be attached or removed easily from your rig via a 1/4-20 camera screw knob. Additionally, the back pad’s position can be adjusted to the user’s preference – up to 2" vertically and 360° horizontally. The bottom of the back pad is designed with (2) 1/4-20 threaded holes, allowing the attachment of other accessories or counterweights.

Features

• Formfitting, lightweight, and robust CNC aluminum cage
• Easy to assemble and disassemble
• Maintains access to all camera controls, ports, and slots
• Cold shoe mount on top
• Multiple 1/4"-20, 3/8"-16 holes with ARRI anti-twist mounting threads
• 1/4"-20 tripod threads on Base
• HDMI cable clamp prevents accidental cable disconnection
• Padded hand strap to grasp and feel the camera on the right side

Delivery Contents

• 1 x CAGE FOR BLACKMAGIC POCKET CINEMA CAMERA 4K
• 1 x TOP HANDLE WITH PUSH-BUTTON
• 1 x 15 MM LW QUICK RELEASE ROD BASE SYSTEM
• 2 x 15 MM RODS 18"
• 1 x PAIR OF QUICK HANDLE WITH PUSH-BUTTON
• 1 x SHOULDER MOUNT
• 1 x BACK PAD

Specifications

• Weight: 6.70 lbs (3.04 kg)
• Dimensions: 17.56 x 11.73 x 23.60 in (44.60 x 29.79 x 59.94 cm)
