Trina 510W Photovoltaic Panel Set of 6

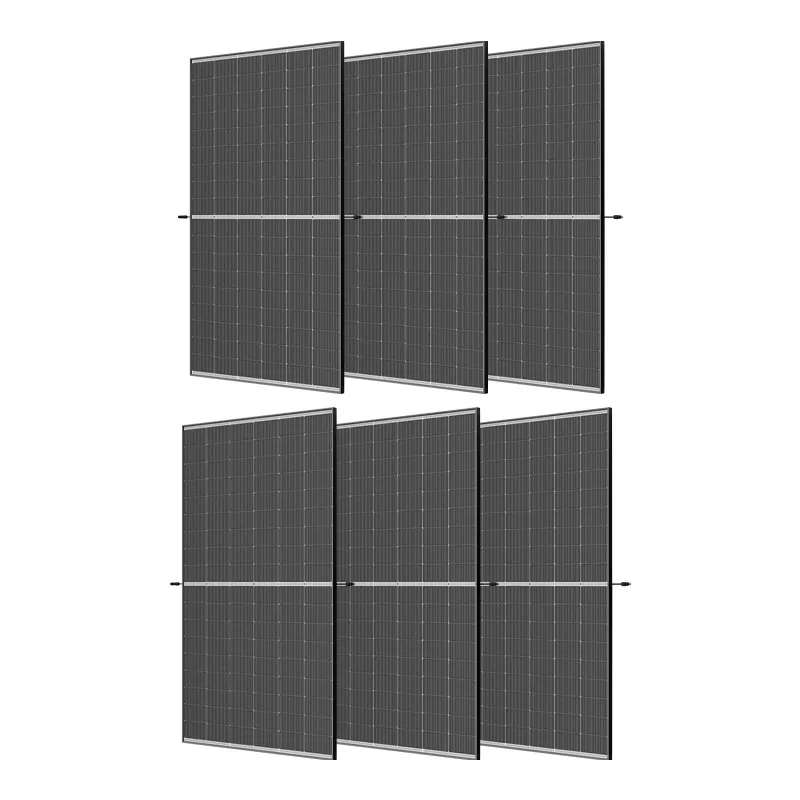

Set of 6x EcoFlow Trina 510W Photovoltaic Panels

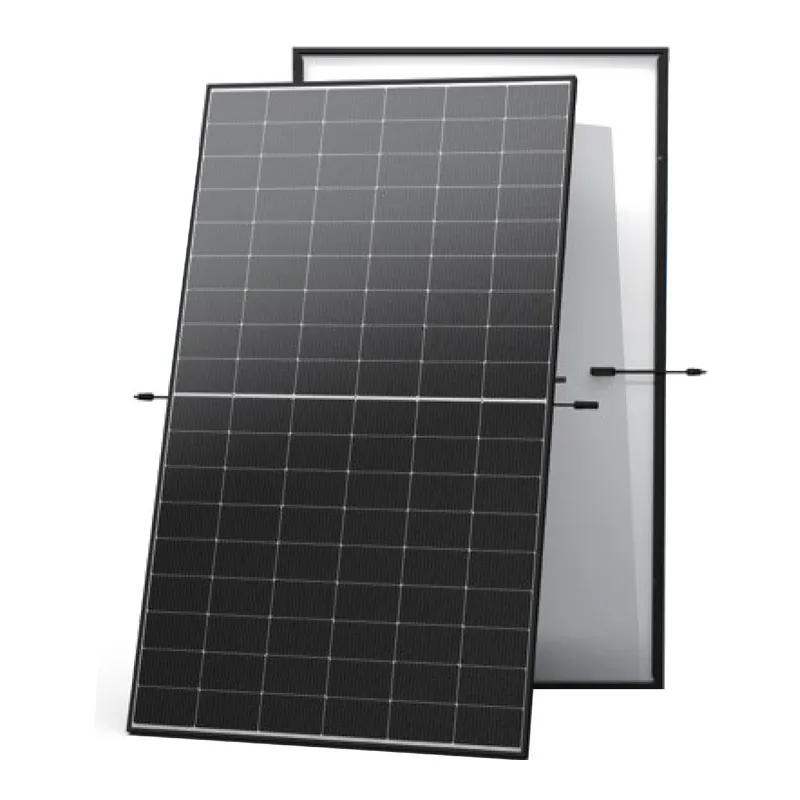

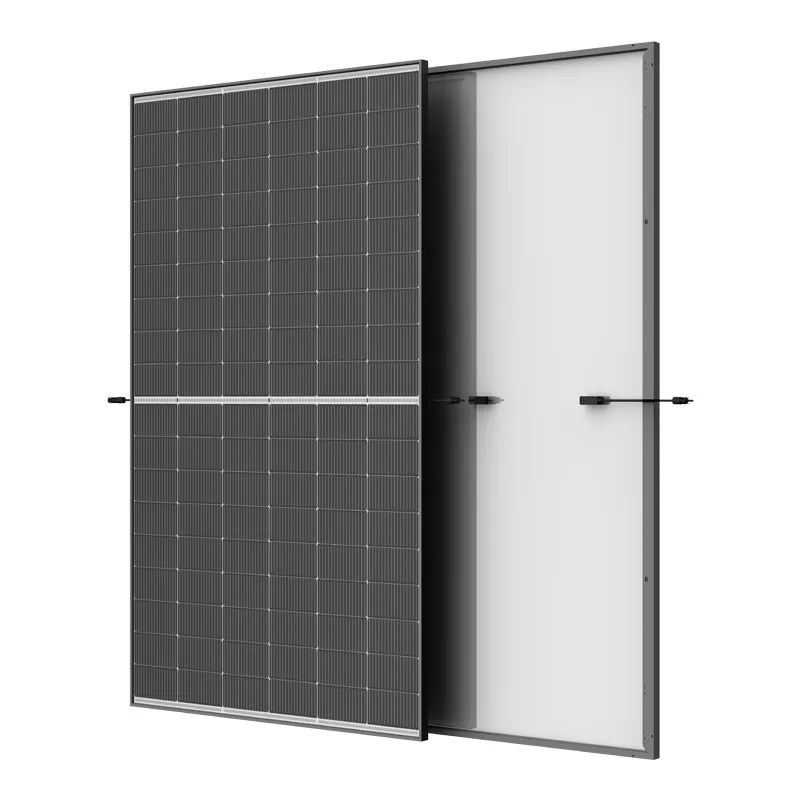

The Trina Vertex S+ TSM-510NEG18R.28 photovoltaic panel is a state-of-the-art solar module based on N-type monocrystalline cells with i-TOPCon (Tunnel Oxide Passivated Contact) technology. It offers an output power of up to 510 W and an efficiency of up to 22.9%. The double-glass design increases durability and weather resistance. With a length of no more than 2 meters and a lightweight design, the panel is suitable for both commercial and industrial roofs. The set includes 6 photovoltaic panels.

More Power on the Same Surface

With an output power of up to 510 W and high efficiency (22.9%), the panel enables more power generation from the same roof area. This maximizes the use of available space while reducing installation costs, shortening the payback time.

Technology to Increase Efficiency

The use of i-TOPCon technology improves the efficiency of solar-to-electric energy conversion, allowing the panel to perform better under real-world operating conditions. This technology reduces power losses and ensures more stable operation over many years.

Greater Resilience

The dual-glass design (two sheets of 1.6 mm thick tempered glass) provides high mechanical resistance—up to 5400 Pa at positive pressure (e.g., snow) and 2400 Pa at negative pressure (e.g., strong wind). This construction reduces the risk of microcracks and scratches during installation, enhancing the reliability of the entire system.

Works in Harsh Conditions

The module is resistant to salt, ammonia, dust, and high humidity, making it suitable for demanding environments such as coastal areas, industrial plants, or dusty regions. Fire class A+C indicates increased resistance to ignition and fire propagation.

Stable Performance for Decades

The panel has a very low temperature coefficient (-0.29%/°C), resulting in better performance in hot weather. Maximum power degradation is predicted at 1% in the first year and 0.4% annually thereafter, ensuring at least 87.4% of original power output after 30 years.

Universal Application on Roofs

Thanks to its compact size and light weight, the panel can be easily installed even on roofs with limited load capacity. It is compatible with popular inverters, optimizers, and mounting systems, providing flexibility in installation design.

Included

• 6x Trina 510W photovoltaic panels

General

Manufacturer: Trina Solar
Manufacturer code: TSM-510NEG18R.28-6

Electrical Parameters (STC, Standard Test Conditions)

• Maximum power: 510 W
• Maximum operating voltage: 33.7 V
• Maximum operating current: 15.14 A
• Open circuit voltage: 40.6 V
• Short-circuit current: 15.93 A
• Module efficiency: 22.9%

Electrical Parameters (NOCT, Nominal Operating Cell Temperature)

• Maximum power: 390 W
• Maximum operating voltage: 31.9 V
• Maximum operating current: 12.21 A
• Open circuit voltage: 38.5 V
• Short-circuit current: 12.84 A

Mechanical Parameters

• Type of cells: Monocrystalline
• Number of cells: 108
• Module dimensions: 1961 x 1134 x 30 mm
• Weight: 23.5 kg
• Front glass: 1.6 mm tempered glass with anti-reflective coating (AR)
• Rear glass: 1.6 mm tempered glass, highly transparent
• Frame: 30 mm anodized aluminum, black
• Junction box (J-Box): IP68 rated, 3 bypass diodes
• Connection cables: Photovoltaic cable 4.0 mm², horizontal 1300 / 1300 mm

Temperature Indicators

• Nominal operating temperature of the cell: 43°C (±2°C)
• Temperature coefficient of power (PMAX): -0.29%/°C
• Temperature coefficient of voltage (VOC): -0.24%/°C
• Temperature coefficient of current (ISC): +0.04%/°C

Limiting Values

• Operating temperature range: -40°C to 85°C
• Maximum circuit voltage: 1500 V DC (IEC standard)
• Maximum current protection: 30 A
