Trina 510W photovoltaic panel set

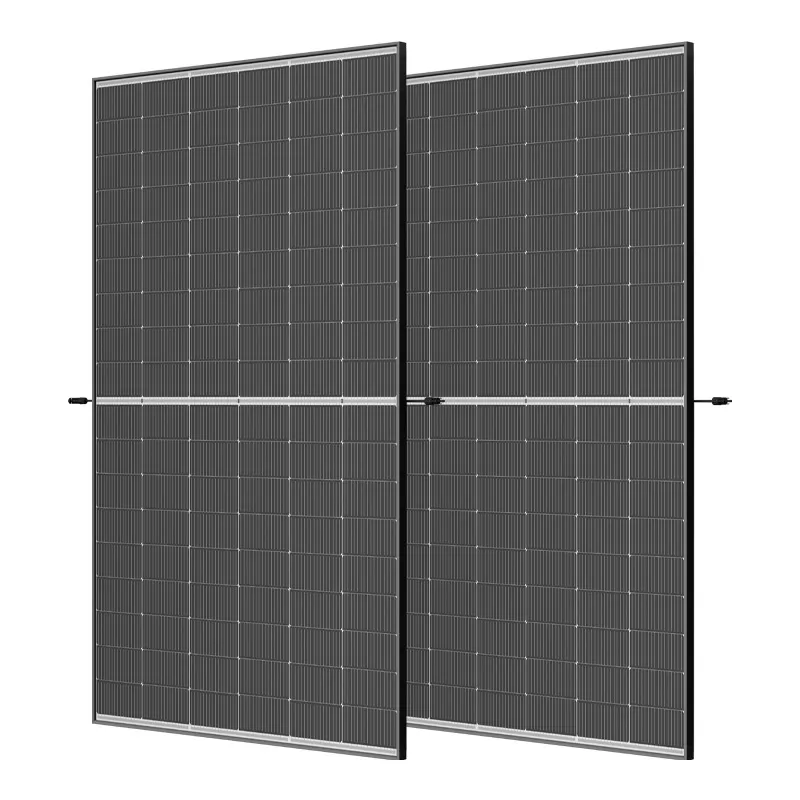

Set of 2x EcoFlow Trina 510W photovoltaic panel

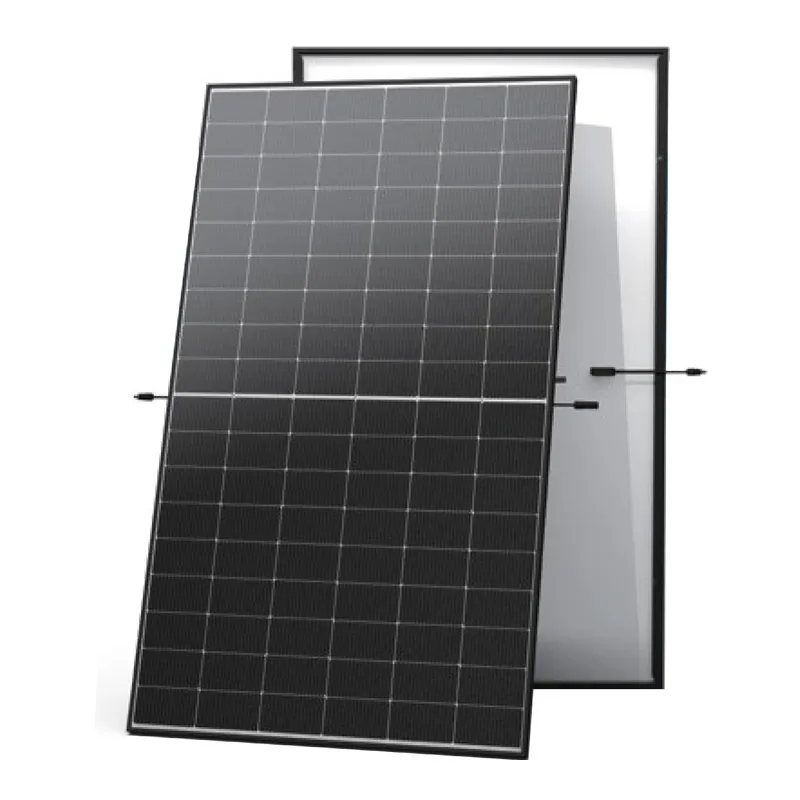

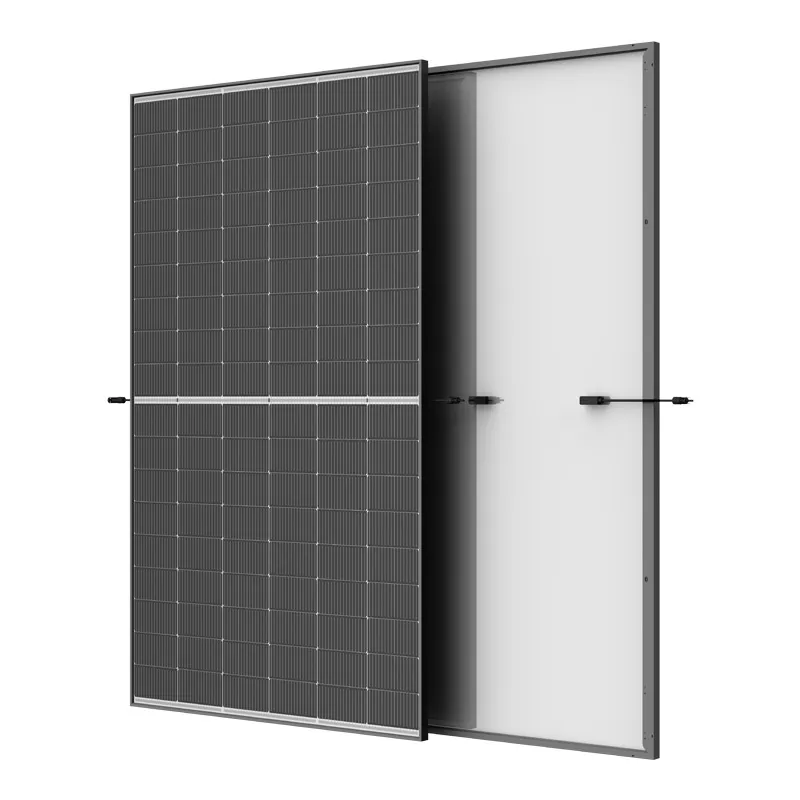

The Trina Vertex S+ TSM-510NEG18R.28 photovoltaic panel is a state-of-the-art solar module based on N-type monocrystalline cells with i-TOPCon (Tunnel Oxide Passivated Contact) technology. It offers an output power of up to 510 W and an efficiency of up to 22.9. The double-glass design increases durability and weather resistance. With a length of no more than 2 meters and a lightweight design, the panel will work well on both commercial and industrial roofs. The set includes 2 photovoltaic panels.

More power on the same surface

With an output power of up to 510 W and high efficiency (22.9), the panel makes it possible to obtain more power from the same roof area. This maximizes the use of available space while reducing the cost of installation, which shortens the payback time.

Technology to increase efficiency

The use of i-TOPCon technology improves the efficiency of solar-to-electric energy conversion, allowing the panel to perform better in real-world conditions. The technology allows for lower power losses and more stable operation over many years of use.

Greater resilience

The dual-glass design (two sheets of glass 1.6 mm thick) provides high mechanical resistance - up to 5400 Pa at positive pressure (such as snow) and 2400 Pa at negative pressure (such as strong wind). In addition, such a construction reduces the risk of microcracks and scratches during installation, which increases the reliability of the entire installation.

Works in harsh conditions

The module is resistant to salt, ammonia, dust and high humidity, so it can operate in demanding environments. It will find use near the sea, industrial plants or in dusty regions, among others. Fire class A+C means increased resistance to ignition and fire propagation.

Stable performance for decades

The panel has a very low temperature coefficient (-0.29/C), which translates into better performance in hot weather. A maximum power degradation of 1 is predicted in the first year of operation, and 0.4 per year in subsequent years. This means that after 30 years the module retains at least 87.4 of its original power output.

Universal application on roofs

Thanks to its compact size and light weight, the panel can be easily installed even on roofs with limited load capacity. The product is compatible with popular inverters, optimizers and mounting systems, providing flexibility in installation design.

Included

• 2x Trina 510W photovoltaic panel

General

Manufacturer: Trina Solar
Manufacturer code: TSM-510NEG18R.28-2

Electrical parameters (STC, Standard Test Conditions)

Maximum power: 510 W
Maximum operating voltage: 33.7 V
Maximum operating current: 15.14 A
Open circuit voltage: 40.6 V
Short-circuit current: 15.93 A
Module efficiency: 22.9

Electrical parameters (NOCT, Nominal Operating Cell Temperature)

Maximum power: 390 W
Maximum operating voltage: 31.9 V
Maximum operating current: 12.21 A
Open circuit voltage: 38.5 V
Short-circuit current: 12.84 A

Mechanical parameters

Type of cells: Monocrystalline
Number of cells: 108
Module dimensions: 1961 x 1134 x 30 mm
Weight: 23.5 kg
Front glass: 1.6 mm tempered glass, anti-reflective coating (AR)
Rear glass: 1.6 mm tempered glass, highly transparent
Frame: 30 mm anodized aluminum, black
Junction box (J-Box): IP68 rated, 3 bypass LEDs
Connection cables: Photovoltaic cable 4.0 mm, Horizontal 1300 / 1300 mm

Temperature indicators

Nominal operating temperature of the cell: 43C (2C)
Temperature coefficient of power PMAX: -0.29 / C
Temperature coefficient of voltage VOC: -0.24 / C
Temperature coefficient of current ISC: +0.04 / C

Limiting values

Operating temperature: from -40C to 85C
Maximum circuit voltage: 1500 V DC (IEC)
Maximum current protection: 30 A
