YOLOLIV YOLOBOX PRO Portable Multicam Live Streaming Studio YB-PRO

All-in-One Live Streaming Studio

YoloBox Pro combines a video switcher, encoder/streamer, monitor, recorder, and audio mixer into a single portable device. It features built-in restreaming services with native integration for platforms such as YouTube, Facebook, and Twitch. The device supports graphic overlays including logos, lower-thirds, picture-in-picture, scoreboards, and rolling captions, along with real-time comment display. It offers advanced professional features and processing power for demanding live broadcasts.

Hardware Specifications

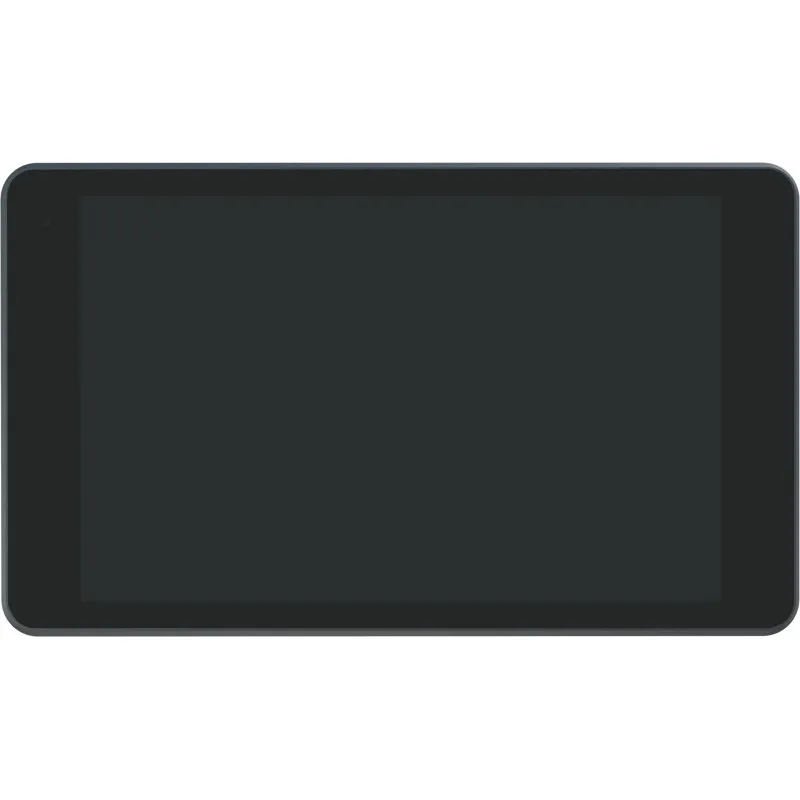

• 8-inch touchscreen display
• Weight: 750 grams
• Dimensions: 218 mm (L) x 129 mm (W) x 27 mm (H)
• 3 HDMI inputs and 1 HDMI output
• 1 full-featured USB-C port
• Supports switching up to 8 sources, including up to 4 physical local cameras and 2 pre-recorded videos from internal memory or web sources

Video and Streaming Capabilities

• Input resolutions supported: 720p, 1080i, 1080p
• Streaming resolutions: 540p, 720p, 1080p at 60 fps using H.264 codec
• HDMI output for local display of the stream
• Simultaneous streaming to up to 3 destinations via YoloLIV platform
• Direct integration with major streaming platforms including YouTube Live, Facebook Live, Twitch, and RTMP servers

Audio and Recording Features

• Line-level audio input and microphone input for live audio mixing
• Separate headphone audio output for monitoring
• Records live streams directly to MP4 format on optional SD cards up to 128 GB
• Line-in supports connection to synthesizers or electric guitars

Touchscreen Control and User Interface

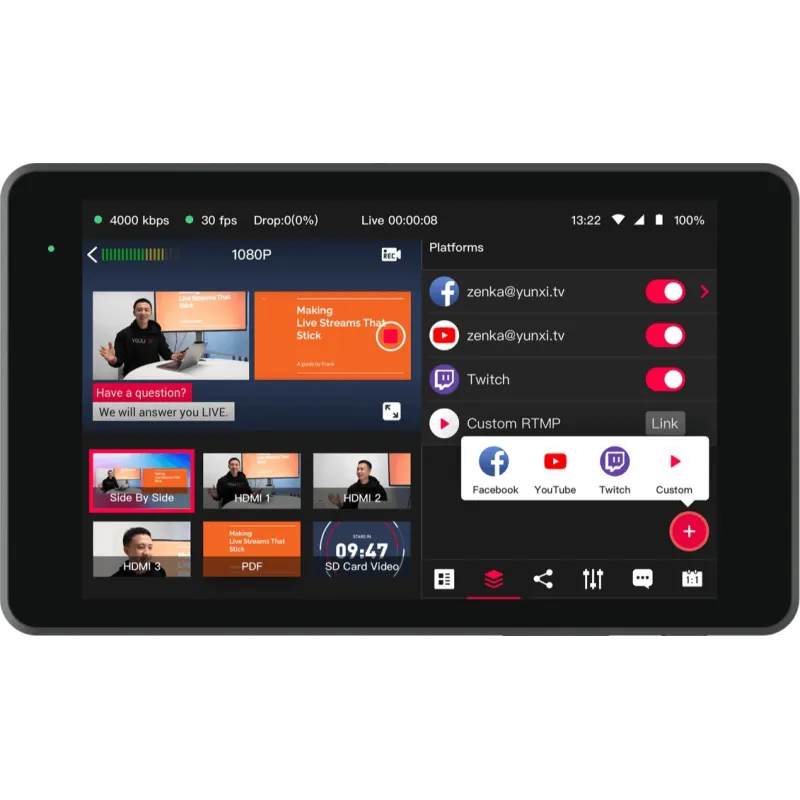

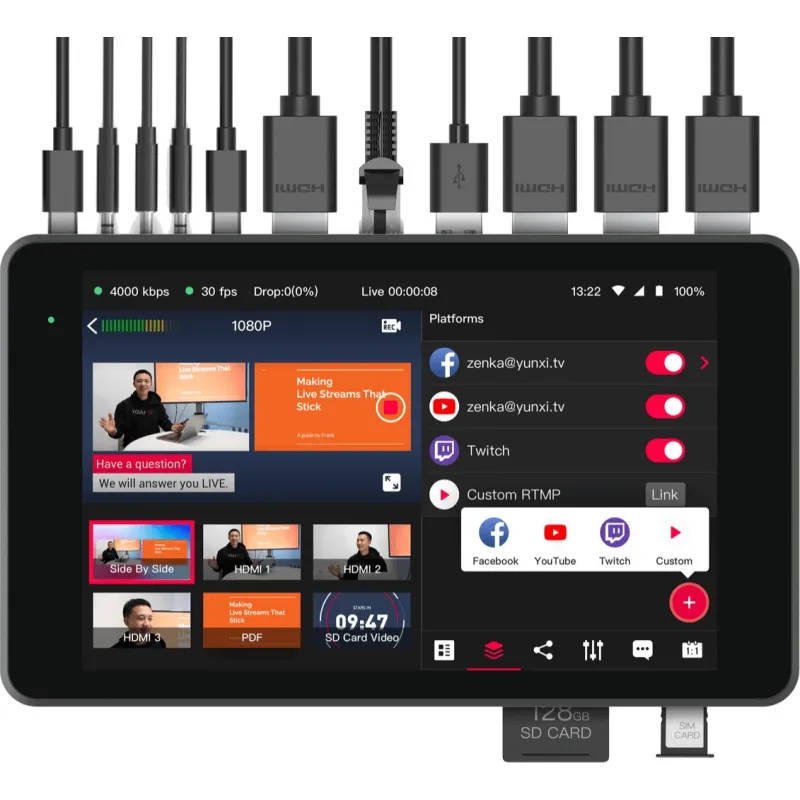

The large LCD touchscreen displays the streaming image and input sources, providing an intuitive control interface for switching sources and managing overlays with simple touch gestures.

Overlay and Graphics Features

• Add logos, watermarks, and rolling captions to brand your live stream
• Customizable picture-in-picture (PiP) templates including Interview mode
• Real-time comment overlays to engage with viewers
• Customizable scoreboard feature for professional live event presentation
• Built-in editable lower-thirds templates

Connectivity and Network

• Internet connection via integrated RJ45 Ethernet port, Wi-Fi (2.4 GHz/5 GHz), or optional SIM card for 4G LTE cellular service
• Supports multiple 4G LTE frequency bands for North America and EMEA/Asia regions

Additional Features

• Load and display PDFs as a local source
• Import pictures and videos from SD card for use in streams
• Hotshoe mount for attaching the YoloBox Pro to cameras
• Internal battery capacity of 10,000 mAh providing approximately 3 hours of operation
• Charging via USB Type-C with Quick Charge 3.0 support

Technical Specifications

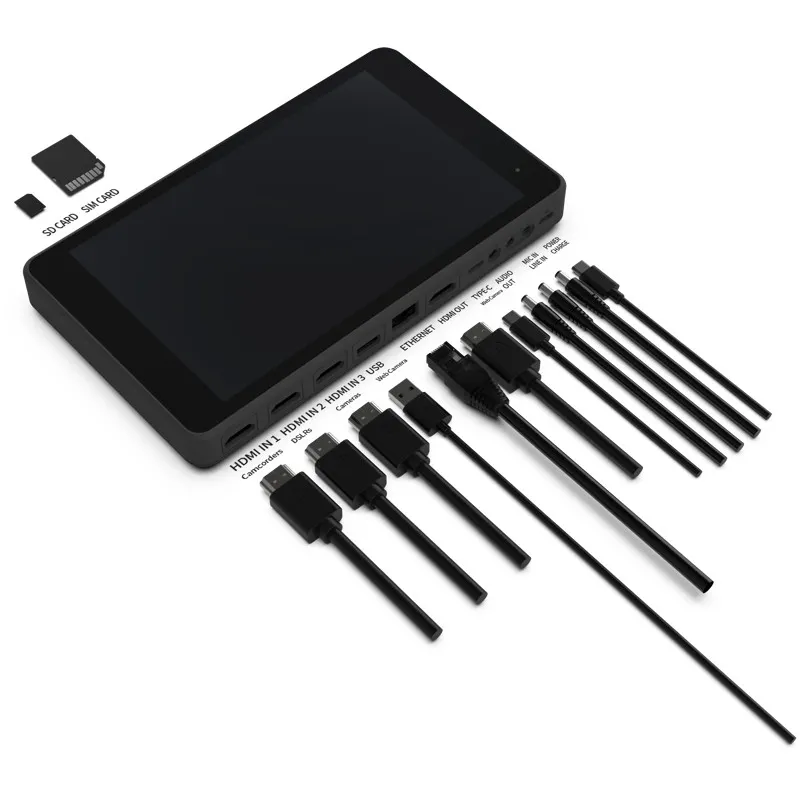

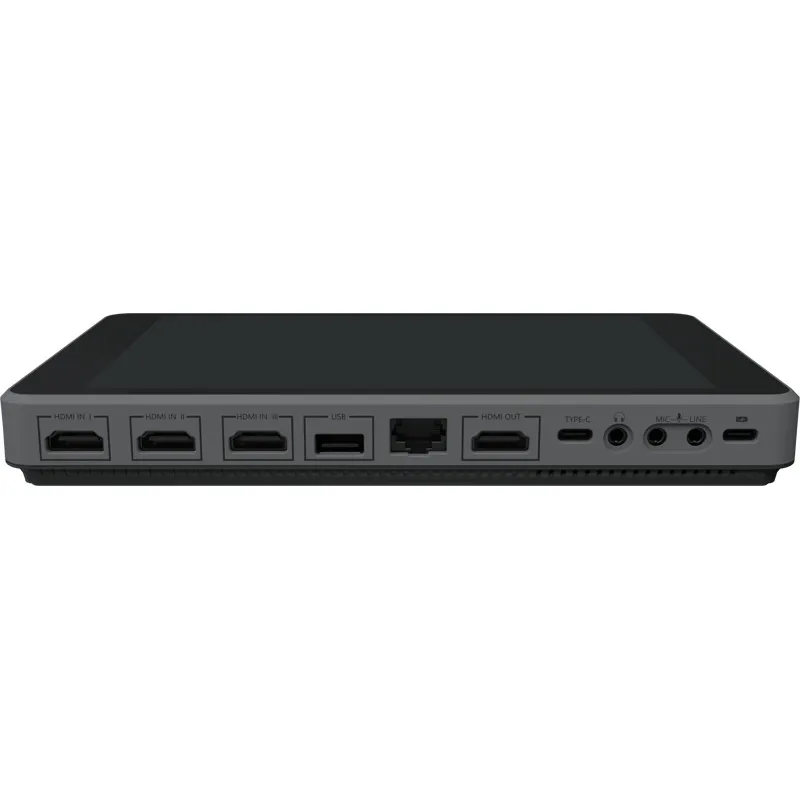

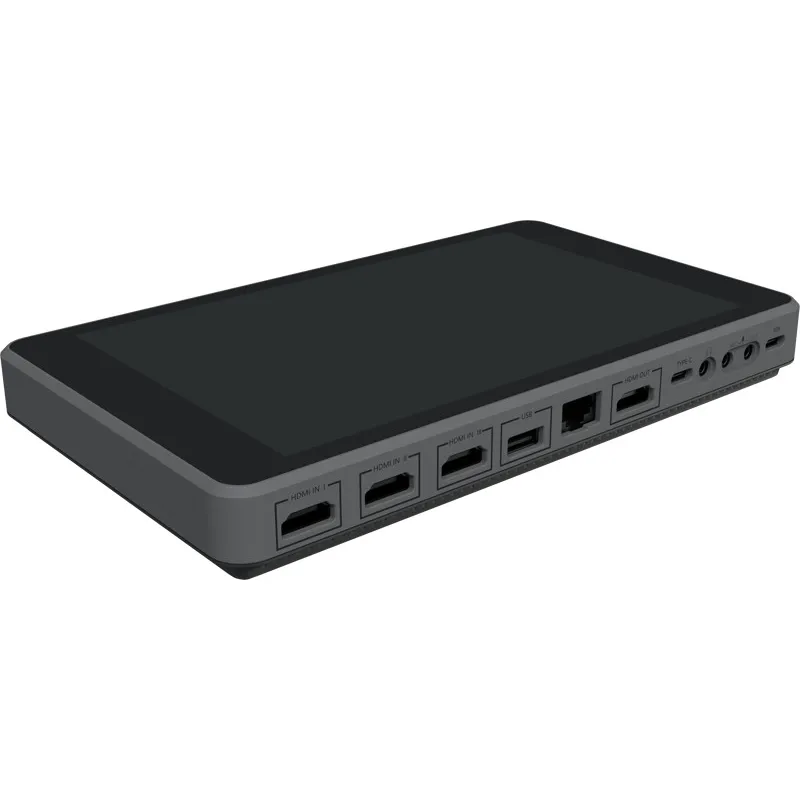

• Ports: 3x HDMI IN, 1x USB IN (video input), 1x HDMI OUT, Ethernet, AUDIO IN (mic/line), TYPE-C 3.0 (input/output), TYPE-C power, LINE IN (stereo), MIC IN (mono), AUDIO OUT (headphone), SIM card slot (nano), SD card slot, power button, hotshoe mount
• Video Encoding: H.264 codec
• Audio Encoding: AAC 44.1 kHz
• Video Recording Format: MP4
• Audio Input Format: 16 kHz to 48 kHz, 16-bit
• Supported Video Input Formats: 1080i, 720p, 1080p
• Live Broadcast Resolutions: 540p, 720p, 1080p
• Storage: SD card support up to 128 GB (FAT32, exFAT, NTFS)
• Network Protocol: RTMP(S)
• Operating Temperature: -10°C to 40°C
• Storage Temperature: 5°C to 40°C
