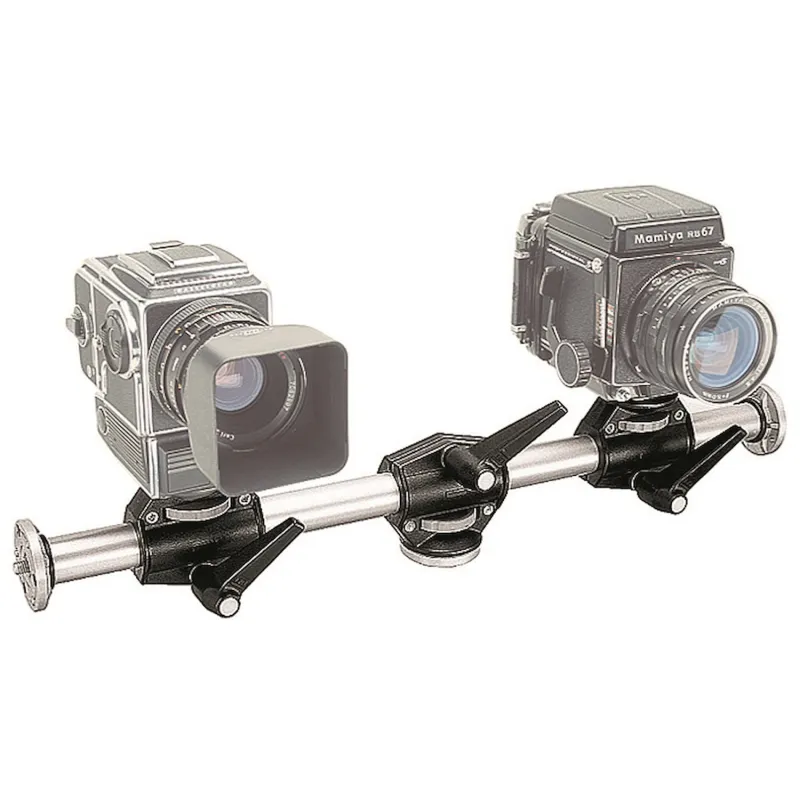

Manfrotto 131DD Cross Arm Double End Double Head Support

The Manfrotto 131DD Double-Ended Cross Arm is a 1.1 kg black aluminum side arm that mounts on any column with 3/8"-16 thread and 60 mm disc, providing two independently adjustable double-head supports (four 3/8" female threads total) at 90° to the column, perfect for multi-light product, macro, or reproduction setups.

The 60 cm double-ended horizontal bar slides onto any 3/8"-16 column (tripod, stand, or reproduction arm) and locks via a large disc clamp. Each end carries a sliding double-head bracket with two 3/8"-16 female threads, allowing four lights, cameras, or accessories to be positioned simultaneously at perfect right angles to the main column. The brackets slide along the bar and rotate 360°, while ratchet handles ensure rock-solid locking even with heavy strobes or telephoto lenses. Rated for columns with >6 kg payload and 60 mm top disc, it’s the ultimate solution for copy stands, product tables, or 360 object photography needing precise, repeatable multi-angle illumination.

Key features

• Double-ended 60 cm cross arm
• Two sliding/rotating double-head brackets (4 3/8" female threads)
• 90° perpendicular mounting
• Large disc clamp for 60 mm column tops
• Full 360° rotation + lateral sliding per bracket
• Requires column with >6 kg capacity

• Manfrotto 131DD Tripod Accessory Arm for Four Heads (Silver)

• Model: Manfrotto 131DD Cross Arm, Double End with Double Head Support
• Material: Black aluminum
• Length: 60 cm
• Mount: 3/8"-16 column with 60 mm disc
• Head mounts: 4 3/8"-16 female threads
• Bracket movement: Sliding + 360° rotation
• Minimum column payload: >6 kg
• Disc diameter required: 60 mm
• Weight: 1.1 kg
