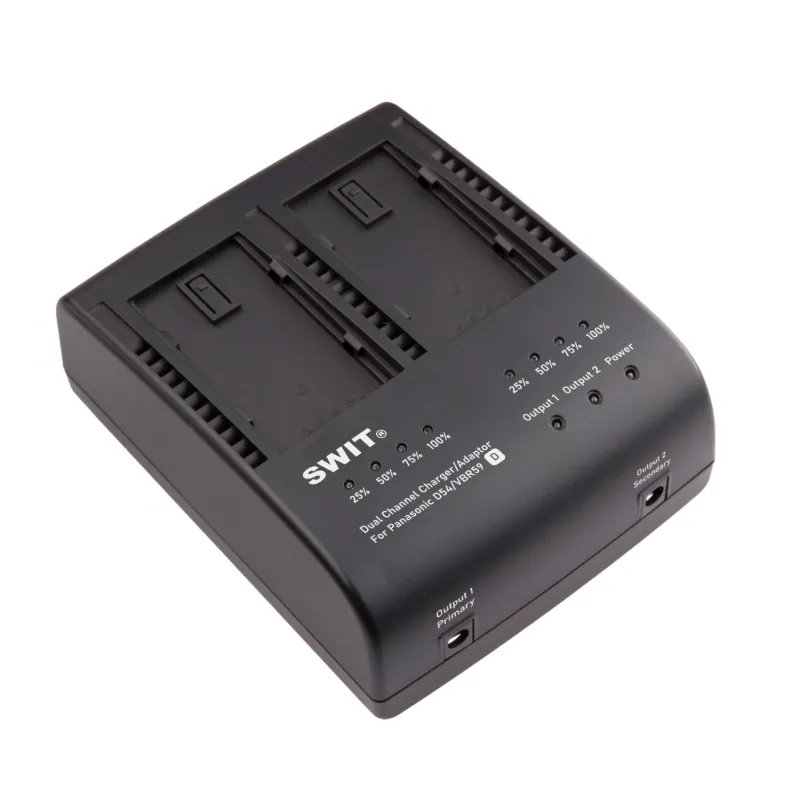

Swit S-3602D Dual Charger

The SWIT S-3602D is a dual charger for SWIT S-8D98, S-8D58, and S-8D62 batteries, also compatible with Panasonic VW-VBD58, AG-VBR59, and CGA series (D54, D28) DV batteries.

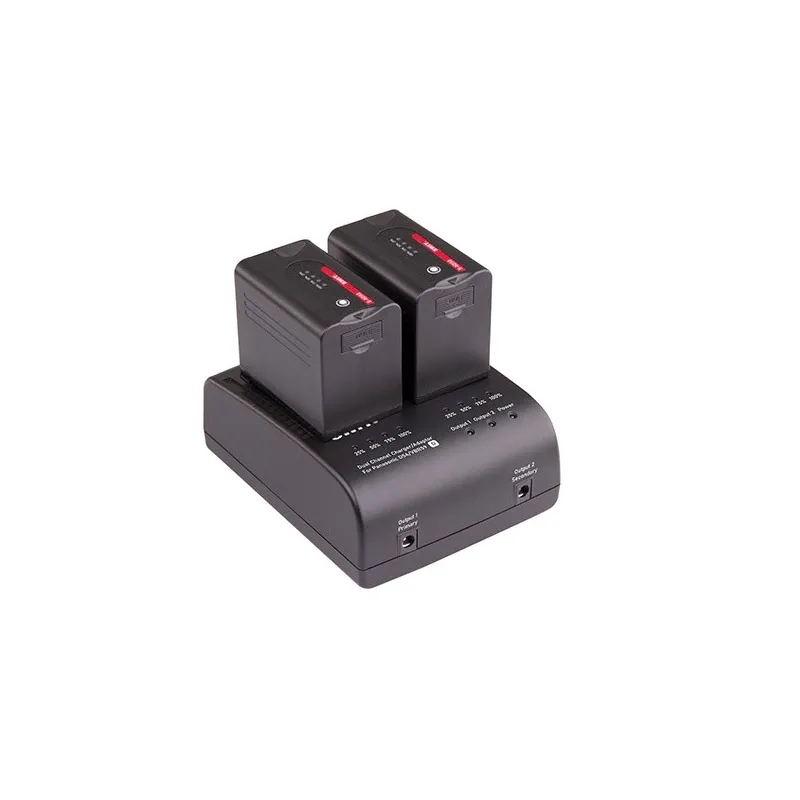

Dual-channel simultaneous charging

The S-3602D has 2 charging channels with a DC output of 8.4 V / 1.8 A for each channel and allows 2 batteries to be charged simultaneously. Each channel is equipped with a 4-stage LED charge indicator that displays the current capacity in percent during charging.

AC-DC adaptive output

The S-3602D is equipped with 2 5.5 mm/2.1 mm sockets for DC output. Both DC outputs work simultaneously and provide a total of DC 8.4 V / 3.5 A.

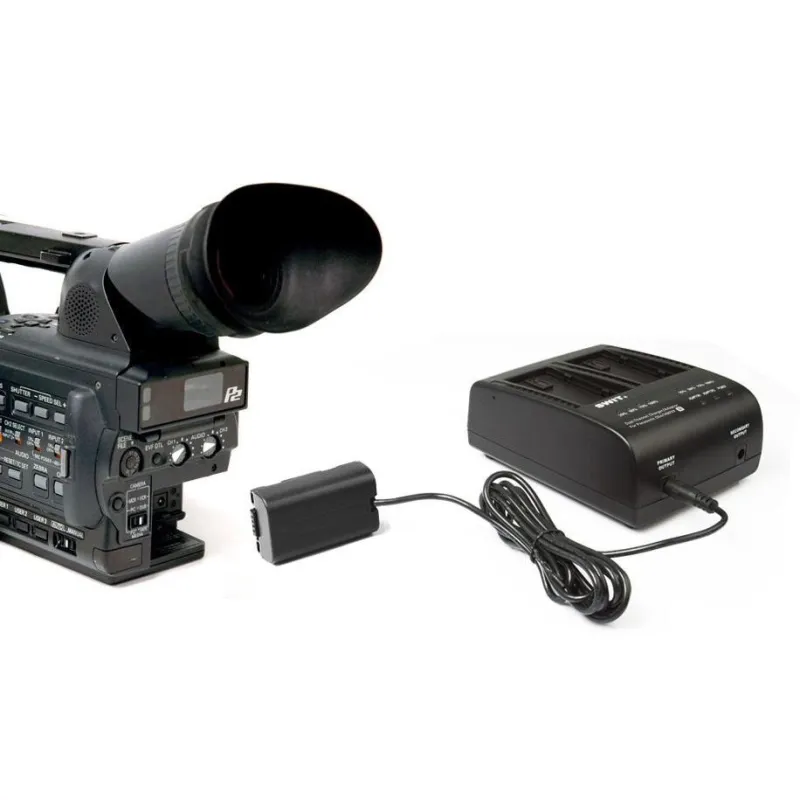

Optional accessories S-7500P adapter (Panasonic CGA series dummy battery) for powering Panasonic DV cameras using VW-VBD58, AG-VBR59 or CGA-D54/D28 batteries, or devices with the specified battery holders.

Key features

• SWIT S-8D62 battery charger
• Compatible with Panasonic VW-VBD58
• Compatible with Panasonic AG-VBR59
• Compatible with Panasonic D54/D28
• Two-channel simultaneous charging
• 2 DC output sockets
• 4-stage LED charging indicators

Technical specifications

• Input power AC 100V240V, 50/60Hz
• Charging output DC 8.4 V, 1.8 A 2
• Adapted output DC 8.4 V, 3.5 A
• Compatible batteries SWIT S-8D98, S-8D58, S-8D62; Panasonic VW-VBD58, AG-VBR59, CGA D54S/D28S
• Dimensions 136 x 110 x 47 mm
• Weight 0.36 kg
