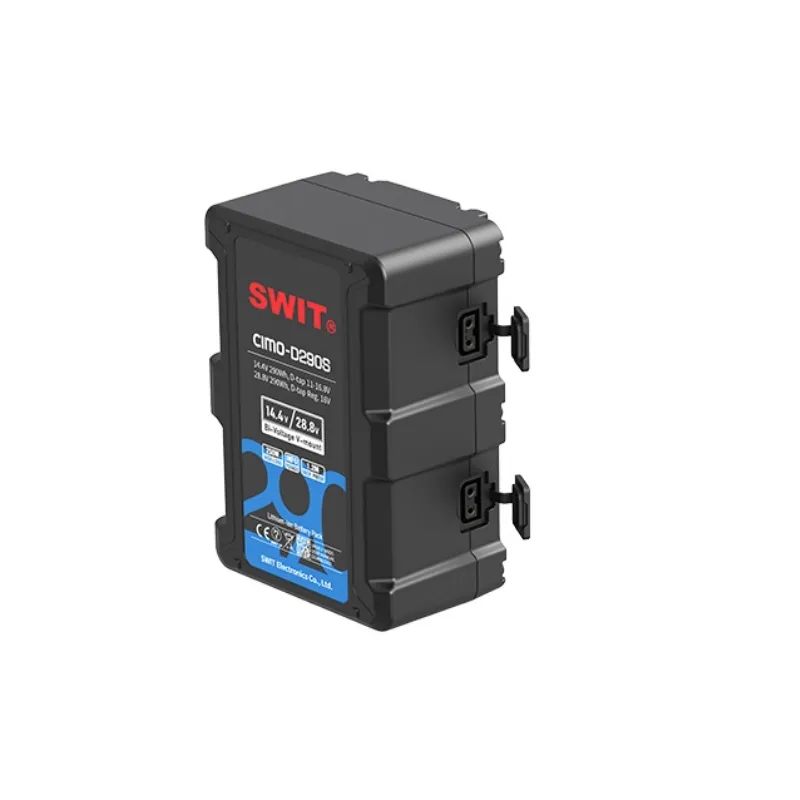

SWIT CIMO-D290S Bi-voltage V-mount Battery
The SWIT CIMO-D290S is a professional 290Wh Bi-voltage V-mount battery with OLED display, supporting both 14.4V and 28.8V outputs for high-power cinema cameras and lighting, with fast charging, dual D-tap outputs, and multiple circuit protections.
The SWIT CIMO-D290S is a high-performance Cine V-mount battery engineered for professional film productions. Featuring a bi-voltage system, it automatically switches between 14.4V and 28.8V via a magnetic sticker, allowing safe use with devices ranging from standard V-mount cameras to high-power cinema cameras like RED V-Raptor XL, ARRI ALEXA LF/65, and BMD URSA CINE. With a 290Wh ternary lithium cell pack, the CIMO-D290S delivers 250W constant load and 335W peak, even in extreme cold down to -20C, while the OLED display provides real-time information on battery status, output voltage, remaining runtime, and warnings.
It includes 2 D-tap outputs for additional power supply to accessories, supports 100W fast charging for rapid turnaround, and is compatible with any standard V-mount charger. The battery's robust construction can withstand drops from 1.2m, ensuring reliability on set. Multiple circuit protections safeguard devices from overcurrent, overvoltage, and short circuits, making the CIMO-D290S a versatile, safe, and high-capacity solution for professional cinema production.
Key Features
- Cine-style V-mount battery with bi-voltage 14.4V / 28.8V auto-switch
- Magnetic sticker system for safe voltage switching
- 290Wh large capacity (24 ternary lithium cells)
- 250W constant / 335W peak high load output
- OLED display voltage, remaining runtime, warning alerts
- 2 D-tap outputs, 11.6V 150W (14.4V mode), 16V 100W (28.8V mode)
- Rear LED torch for low-light environments
- Fast charging 100W, 80% in 2.5h, full charge in 3.8h
- Robust housing, drop-resistant to 1.2m
- Safe operation in -20C cold
- Multiple circuit protections (BMS)
- 1 SWIT CIMO-D290S 290Wh V-mount battery
- 1 Magnetic sticker for 28.8V activation
- Documentation / user manual
- Capacity 290Wh / 24 cells
- Output voltage 14.4V (11.6V) / 28.8V (22.3V)
- Load 250W constant / 335W peak
- D-tap outputs 2, 11.6V 150W (14.4V mode), 16V 100W (28.8V mode)
- Charging 100W fast charge
- Temperature range -20C to +40C
- Dimensions & Weight Standard V-mount form factor, robust casing
