Redleaf endoscope with monitor RDE-1005MR 5m

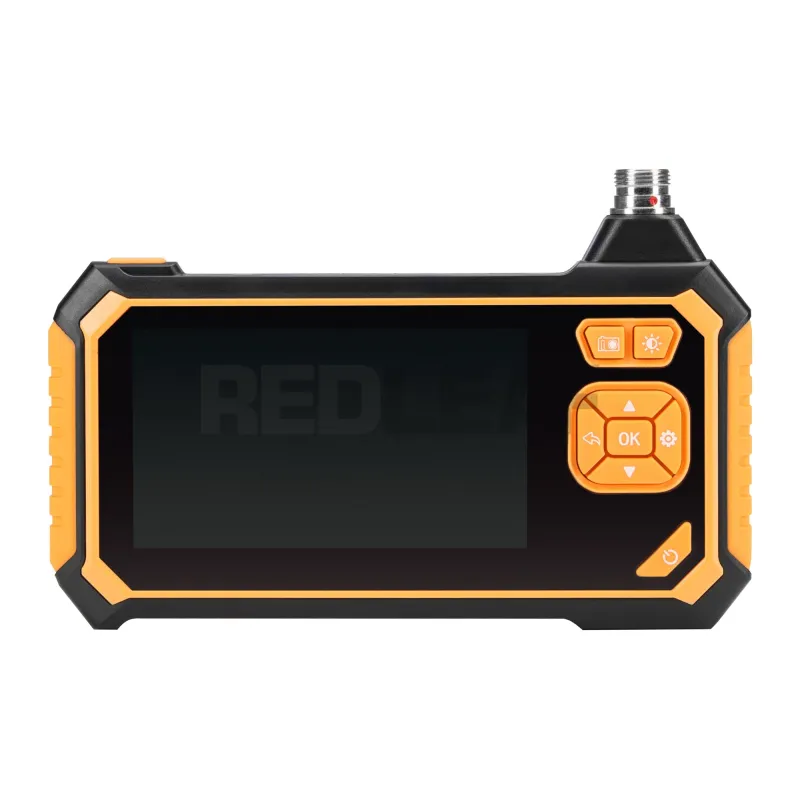

4.3-inch LCD monitor

View images from the Redleaf RDE-1005MR inspection camera in real time on the included 4.3-inch LCD monitor. Profiled rubber grips provide a secure hold during operation. The monitor module also features a bright flashlight and navigation buttons for easy control of the endoscope settings.

Image quality and low-light recording

The camera records photos and videos at a maximum resolution of 1920 × 1080 pixels. LEDs around the lens provide illumination in dark spaces, while Auto Focus automatically adjusts focus to help reveal fine details. The LED brightness can be adjusted using a dedicated button. Images and videos can be saved to a microSD card, sold separately.

Interchangeable attachments

The included attachments extend the endoscope’s practical uses. The magnet and hook can retrieve small objects from hard-to-reach places. The mirror attachment turns the camera into a small periscope, allowing you to capture images from a different angle.

Rigid cable

The rigid cable can be shaped to suit the space being inspected, making it easier to position the camera where needed.

Water and dust resistance

The camera and cable meet the IP67 rating and can be submerged in water; this rating does not apply to the monitor module. This is useful for inspecting issues such as leaks or blockages in hydraulic systems.

Specifications

• Model: Redleaf RDE-1005MR endoscope with monitor
• Maximum resolution: 1920 × 1080 pixels
• Camera diameter: 8 mm
• Field of view: 70°
• Focus range: 4–500 cm
• Water resistance: IP67 (not applicable to the monitor)
• Lighting: 6 LEDs with 3-stage brightness control; flashlight built into the monitor
• Battery: removable, 2600 mAh
• Operating time per charge: 4 hours
• Cable length: 5 m
• Cable type: rigid
• Supported memory cards: microSD (TF)

In the box

• Endoscope with 5 m rigid cable
• 4.3-inch LCD monitor
• USB cable: USB to micro-USB
• Three attachments: mirror, hook and magnet
• Protective cap
• Plastic storage box for the attachments
• Two hook-and-loop straps for securing the coiled cable
