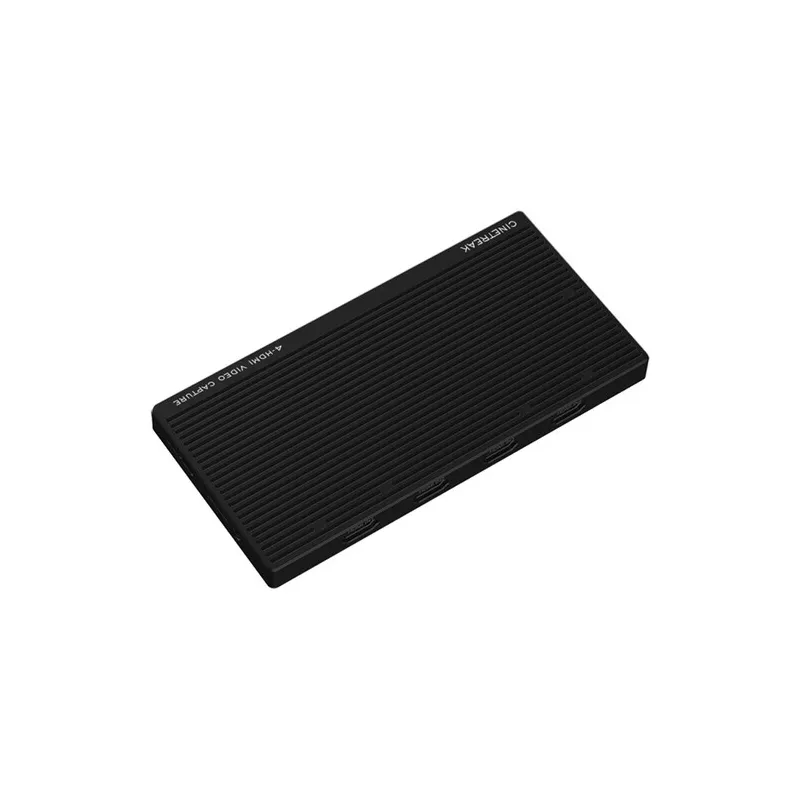

CineTreak CT-4 4-Channel HDMI Capture Device

The CineTreak CT-4 is a professional 4-channel HDMI capture device delivering true 4K60 performance with live switching in a compact, portable design. Featuring quad HDMI inputs with loop-out, UVC plug-and-play compatibility, 10Gbps USB-C transmission, and professional audio input, it is ideal for multi-camera live streaming, education, conferencing, and mobile production workflows.

The CineTreak CT-4 is a powerful multi-channel capture solution that integrates four HDMI inputs with real-time live switching and simultaneous capture. Each channel supports HDMI signal pass-through up to 4096x2160 60Hz, allowing creators to connect cameras, gaming consoles, or computers while monitoring all sources in real time. Using a single USB 3.2 Gen 2 Type-C connection (10Gbps), the CT-4 transmits up to four independent 4K60 streams in MJPEG or 4K30 in YUV420, minimizing system load through independent channel encoding.

Fully compliant with UVC standards, the CT-4 requires no driver installation and works seamlessly across Windows, macOS, and Android platforms. It integrates effortlessly with industry-standard software such as OBS Studio, vMix, Zoom, and mobile apps like V Director Recording, making it a versatile solution for live streaming, online education, corporate events, and professional video production.

Designed for mobile creators, the CT-4 includes a stereo line-in for professional audio mixing, 100W PD fast charging with power backup, and a 5V/2A auxiliary power output for peripherals. Weighing only 220g and featuring a hot-shoe mount, it enables rapid deployment in any shooting environment. Dual-color LED indicators provide instant status feedback, ensuring reliable operation in demanding live workflows.

Key Features

• 4-channel HDMI capture with live switching
• Supports 4K60 HDMI input and loop-out per channel
• Quad independent UVC outputs for multi-source production
• USB 3.2 Gen 2 Type-C with 10Gbps bandwidth
• Driver-free plug-and-play (UVC standard)
• Compatible with OBS, vMix, Zoom, and mobile apps
• Stereo line-in for professional audio mixing
• 100W PD fast charging with power backup
• Compact 220g hot-shoe-mountable design
• Dual-color LED indicators for signal status

• CineTreak CT-4 4-Channel Capture Device
• USB-C Cable
• User Manual

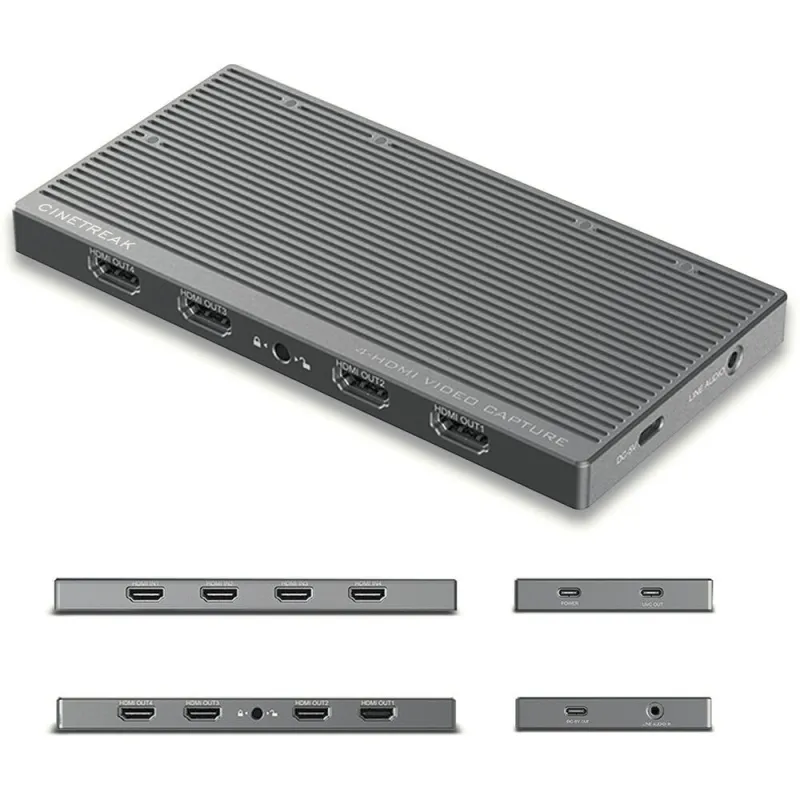

• HDMI Input 4 HDMI, up to 4096 2160 60 Hz per channel
• HDMI Loop-Out 4 HDMI, up to 4096 2160 60 Hz
• USB Output USB-C (UVC), USB 3.2 Gen 2 (10 Gbps)
• Capture Format 4 4K 60 MJPEG
• Capture Format 4 4K 30 YUV420
• Encoding Independent per channel
• Live Switching Supported
• Audio Input Stereo line-in (professional audio support)
• Power Input USB-C PD, up to 100 W fast charging
• Auxiliary Power Output 5 V / 2 A for peripherals
• Operating System Compatibility Windows, macOS, Android
• Software Compatibility OBS Studio, vMix, Zoom, V Director Recording
• Weight 220 g
• Mounting Hot-shoe
• Status Indicators Dual-color LED (HDMI / UVC status)
