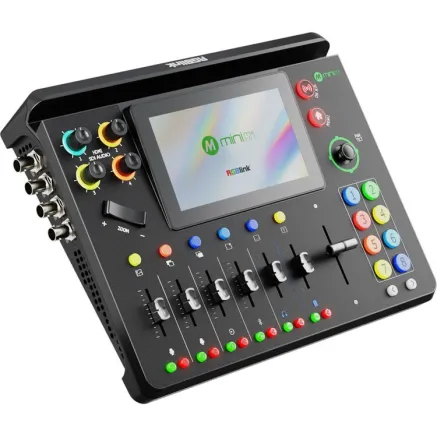

The RGBlink mini-mx SDI is a compact, professional 10-channel video switcher designed for live streaming, broadcast, and event production. Featuring quad HDMI 2.0, quad 3G-SDI, NDIHX2, USB-C UVC, integrated PTZ control, chroma key, dynamic overlays, and simultaneous streaming and recording, it delivers powerful production capabilities in a portable, 24/7-ready form factor.
The RGBlink mini-mx SDI is a versatile all-in-one video production switcher built for demanding live environments such as studios, sports, worship, education, and corporate events. Supporting 10 total inputs including 4 HDMI 2.0, 4 3G-SDI, NDIHX2 over Ethernet, and USB-C UVC, it enables seamless integration of cameras, media players, and remote IP sources.

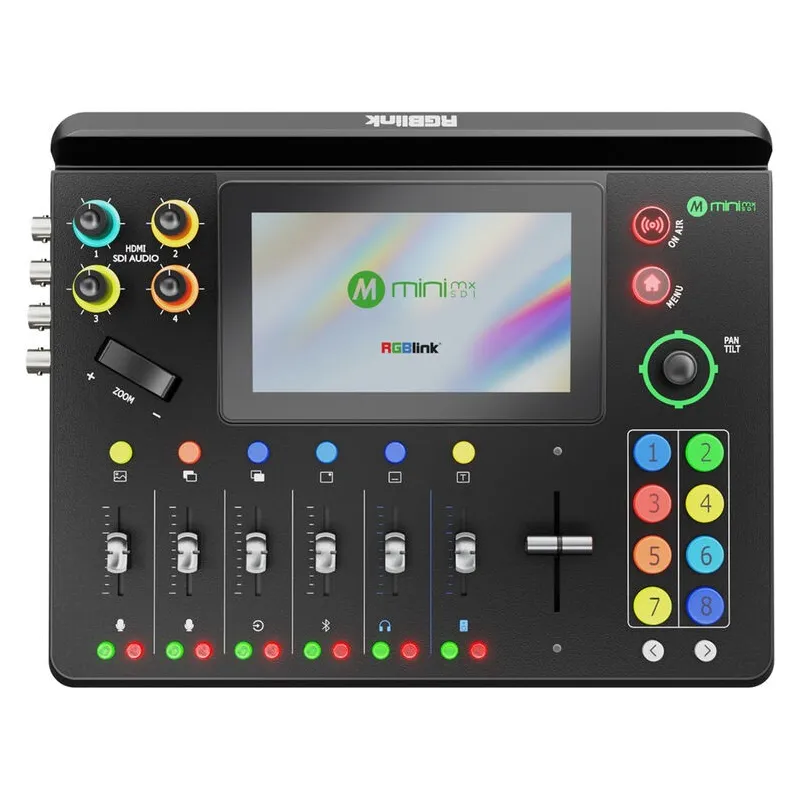

A 5.5 full-color LCD display provides real-time monitoring of all inputs and outputs, while the tactile control surface with illuminated buttons, knobs, joystick, and T-bar allows fast, confident operation. Integrated PTZ camera control via VISCA and NDIHX2 supports up to four cameras directly from the switcher, eliminating the need for external controllers.
The mini-mx SDI excels in live streaming workflows with USB-C UVC output for direct connection to conferencing and streaming software, NDIHX2 and IP streaming, and TAO Cloud integration for cloud-based remote streaming to up to 32 platforms. It also supports simultaneous local recording and streaming, recording up to 100 hours of 1080p video to external USB-C storage.
Advanced production tools include chroma key, two video layers, graphic and logo overlays, dynamic text and scoreboard overlays, VFA (Video Follows Audio), and multiple DVE transition effects. Comprehensive audio support with mic, line, and embedded audio, phantom power, delay control, and live mixing ensures broadcast-quality sound.
Portable, robust, and feature-rich, the RGBlink mini-mx SDI is a complete live production hub that reduces system complexity while delivering professional results.
Key Features
- 10-channel video switcher 4 HDMI 2.0, 4 3G-SDI, NDIHX2, USB-C UVC
- Built-in 5.5 full-color LCD monitoring screen
- Integrated PTZ camera control (VISCA & NDIHX2)
- USB-C UVC output for streaming and recording
- Dual USB-C outputs for simultaneous record & stream
- NDIHX2, IP streaming, and TAO Cloud support
- Chroma key, dynamic text & scoreboard overlays
- VFA (Video Follows Audio) feature
- Two video layers + background and graphic overlays
- 16 scene presets with recall
- Professional audio mixing with phantom power
- RGBlink mini-mx SDI video switcher
- Power supply
- User documentation
- Video Inputs 4 HDMI 2.0, 4 3G-SDI, 1 NDIHX2 (Ethernet), 1 USB-C (UVC)
- Video Outputs Program, Preview, and Multiview outputs, USB-C (UVC), NDIHX2 / IP streaming
- Recording External USB-C recording up to 2TB, simultaneous streaming and recording up to 1080p
- Audio 2 combo XLR/14 mic inputs with 48V phantom power, 1 14 line input, embedded HDMI audio, audio delay and monitoring
- Control Physical control panel with joystick and T-bar, web-based control, TAO Cloud remote management
