Professional Remote Head System

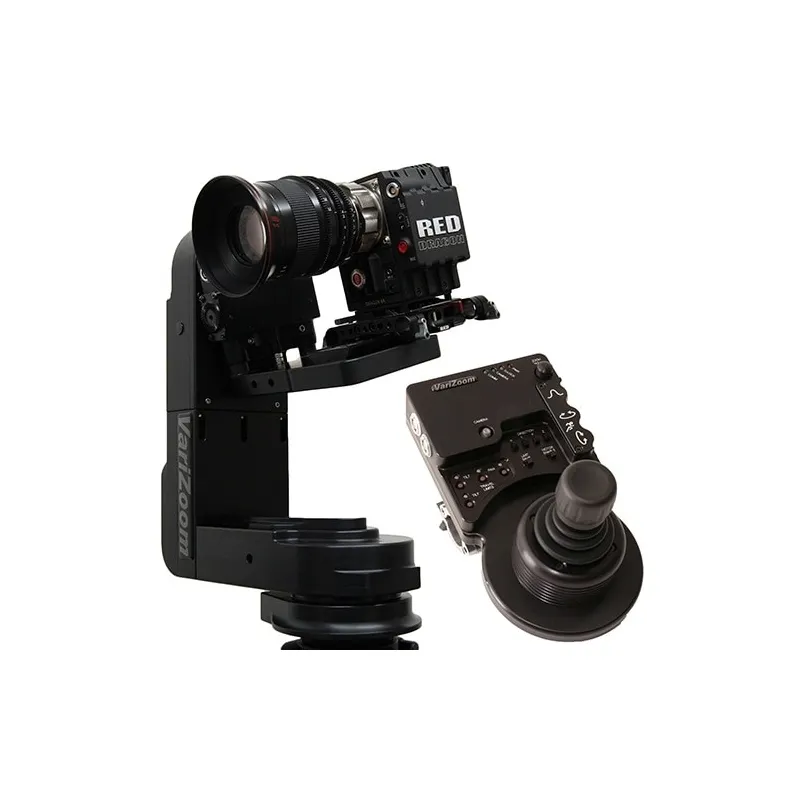

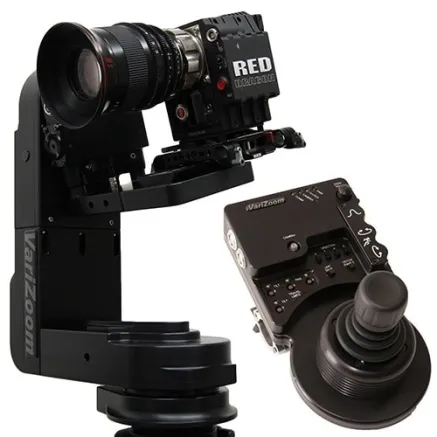

The VariZoom VZCINEMAPRO-K4 Remote Head Kit provides advanced pan, tilt, zoom, and focus control through the ergonomic Pro Jibstick controller. Engineered for precision and smooth motion, this cinema-grade remote head is optimized for crane, jib, and feature film use.
High-Performance Mechanical Design
Combining robust mechanical engineering with intuitive controls, the VZCINEMAPRO-K4 enables filmmakers to achieve precise, repeatable camera movements effortlessly. It supports cameras up to 16 kg (35 lbs) standard, 23 kg (50 lbs) with support bearings, and up to 39 kg (85 lbs) using an optional outrigger cradle with support bearings. The system features powerful, quiet drivetrains and full slip rings allowing continuous 360-degree rotation for pan, tilt, zoom, and focus axes.
Advanced Controller Features

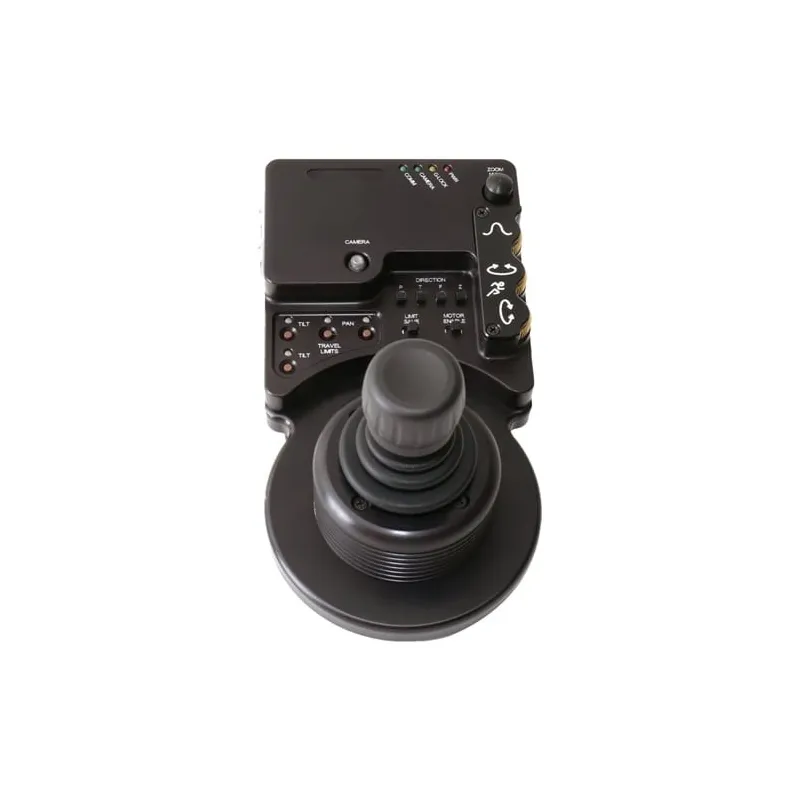

The included Pro Jibstick controller offers long-throw joystick operation for pan and tilt with independent speed and smoothing adjustments. It supports on-the-fly custom motion limits to prevent collisions or preset camera positions. Lens control integrates analog and digital interfaces compatible with Fuji, Canon, and Preston lenses, and it works seamlessly with VariZoom TOC lens control systems. Additional features include motor direction switches, motor disable functions, a USB interface for firmware updates, and a PC-compatible GUI for configuring joystick deadband and lens parameters.
Versatile Applications
This rugged system is widely used in feature films, sports broadcasting, visual effects, and crane/jib operations worldwide. It delivers professional-grade precision without the complexity of full motion control consoles. Optional wireless control, long cable extensions, and comprehensive accessory support enhance its versatility and reliability.
Key Features
- Professional long-throw joystick for pan and tilt control
- Plug-in hand control for zoom and focus
- Independent speed control and smoothing for pan and tilt
- On-the-fly motion limits for pan and tilt
- Motor disable and direction switches for pan, tilt, zoom, and focus
- USB interface for firmware updates and PC configuration
- Full slip rings enabling continuous 360-degree motion
- Built-in lens control for Fuji, Canon, and Preston lenses
- Compatibility with VariZoom TOC lens control systems
- Extremely rigid construction for stable telephoto motion
- Optional wireless control and fiber optic cable extension
Specifications
- Total kit weight: 36.3 kg (80 lbs); head only: 9.5 kg (21 lbs)
- Dimensions: 84 x 53 x 41 cm (33 x 21 x 16 in)
- Head dimensions: Height 49.5 cm (19.5 in), Width 30.5 cm (12 in), Depth 15 cm (6 in)
- Camera capacity: 16 kg (35 lbs) standard; 23 kg (50 lbs) with support bearings; up to 39 kg (85 lbs) with optional outrigger cradle and support bearings
- Camera clearance: Vertical 28 to 41 cm (11 to 16 in); Horizontal 39 to 57 cm (15.5 to 22.5 in) depending on head extension
- Pan/Tilt speed: Up to 210° per second
- Mechanical travel: Unlimited rotation per axis
- Power requirements: 24 V DC regulated, 10 A max (operating range 20 V DC to 28 V DC)
- Maximum cable extension: 762 meters (2500 ft) standard; longer distances possible with fiber optic option
