Saramonic Vlink2 Kit2 Wireless Microphone System

Saramonic Vlink2 Kit2 Wireless Microphone System

System Overview

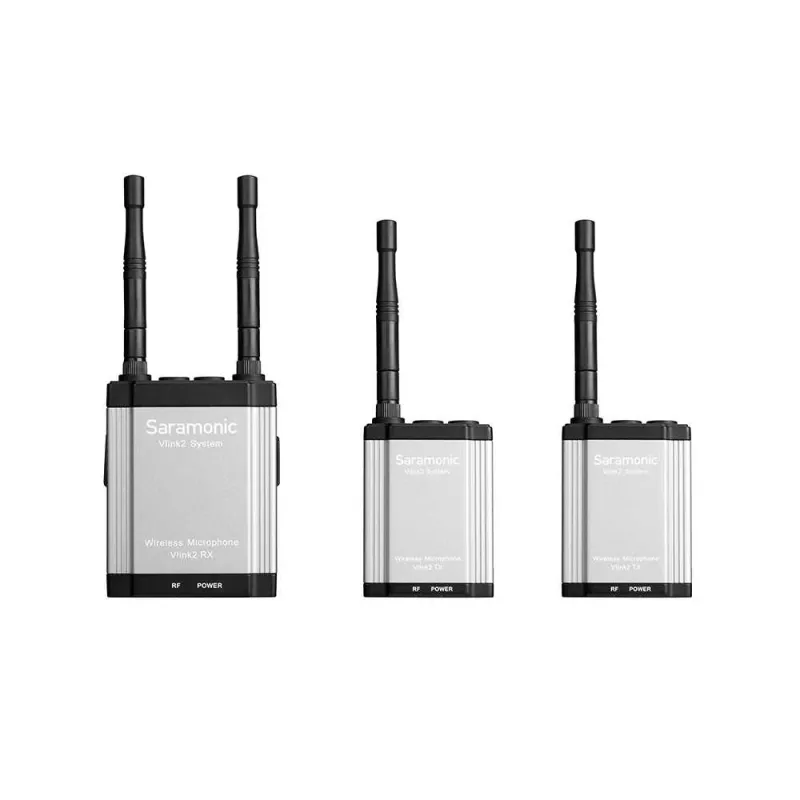

The Saramonic Vlink2 Kit2 is a 2.4 GHz wireless audio transmission system designed for professional content creators, broadcasters, and videographers. It includes two transmitters and one receiver, enabling high-quality audio capture from two independent sources. The system supports a wireless range of up to 100 meters and features a unique two-way "talkback" function for communication between the on-camera talent and the operator.

Key Features

• Wireless audio transmission kit with 2 transmitters and 1 receiver
• Ideal for interviews, live broadcasts, podcasts, vlogs, and TV content

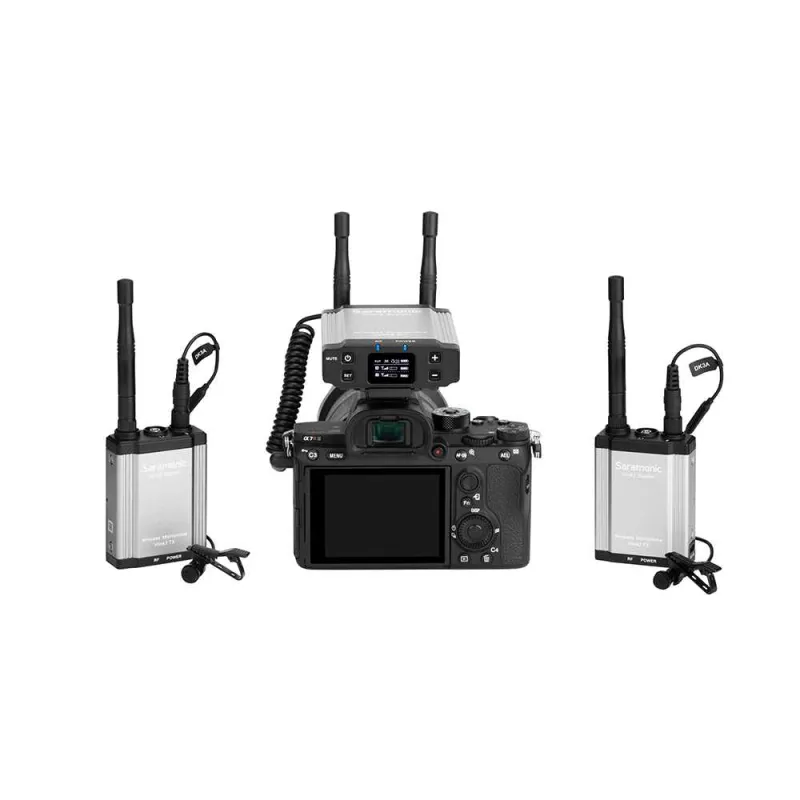

• Compatible with DSLR, mirrorless cameras, camcorders, smartphones, audio recorders, mixers, and audio interfaces
• Innovative "talkback" feature enabling two-way voice communication up to 100 meters
• Real-time headphone monitoring from the receiver
• Includes a small earphone with microphone for the receiver
• Headphone connectivity (TRS or TRRS) on transmitters
• Two professional Saramonic DK3 omnidirectional tie microphones included
• High-contrast OLED displays on receiver and transmitters for easy control
• Removable antennas with 360° adjustable tilt angle for enhanced signal reliability
• Switchable MONO and STEREO audio modes
• Built-in rechargeable batteries providing up to 20 hours continuous operation
• Digital 2.4 GHz transmission ensuring high-quality sound
• 3.5 mm mini jack sockets with plug-in lock to prevent accidental disconnection
• Power supply via USB-C or external power bank support
• Includes belt clips for transmitters and cold shoe adapter for receiver
• Rigid protective carrying case included for transport and storage

Applications

The Vlink2 Kit2 is perfect for video creators and broadcasters who need high-quality audio from two separate sources. It is suitable for recording webinars, live streams, interviews, vlogs, and television content. Its lightweight and compact design make it convenient for travel and field recording.

Audio Quality and Microphones

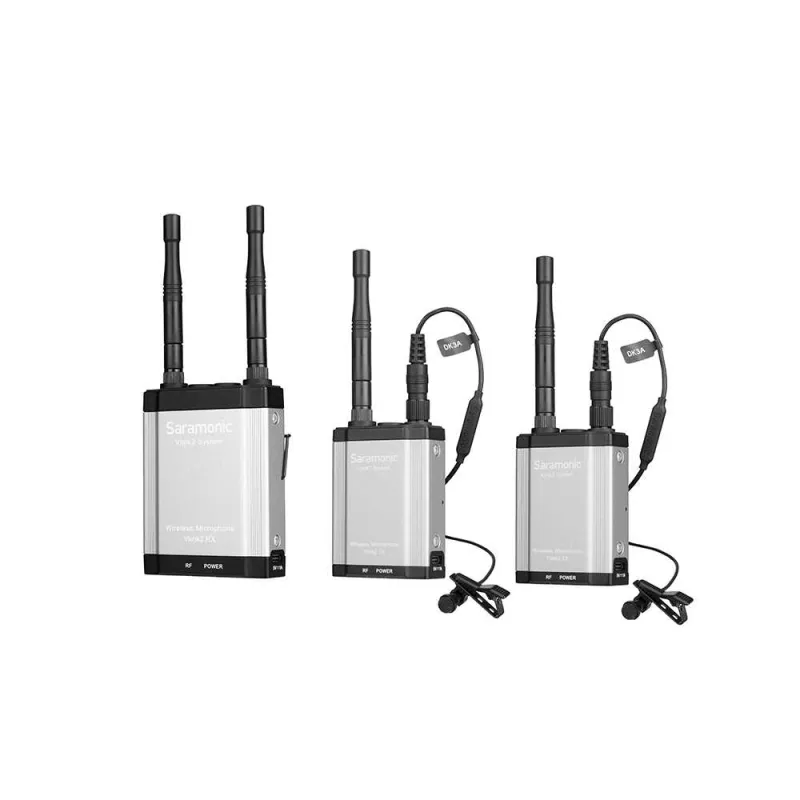

The kit includes two Saramonic DK3 omnidirectional tie microphones designed to capture clear, full voice recordings with broadcast-quality sound. The microphones connect via lockable plugs to prevent accidental disconnection during use.

Talkback Function

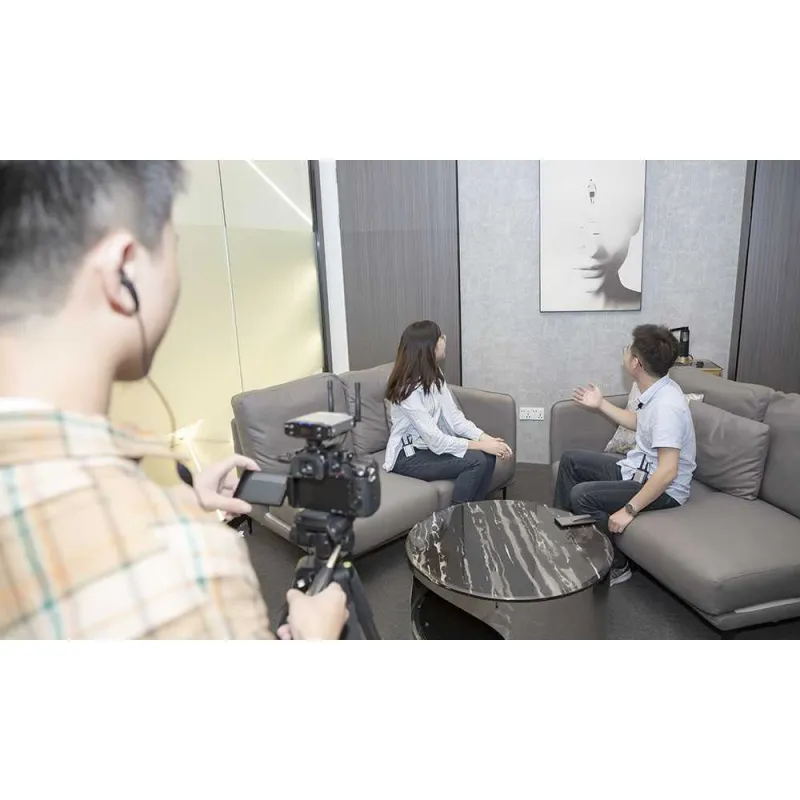

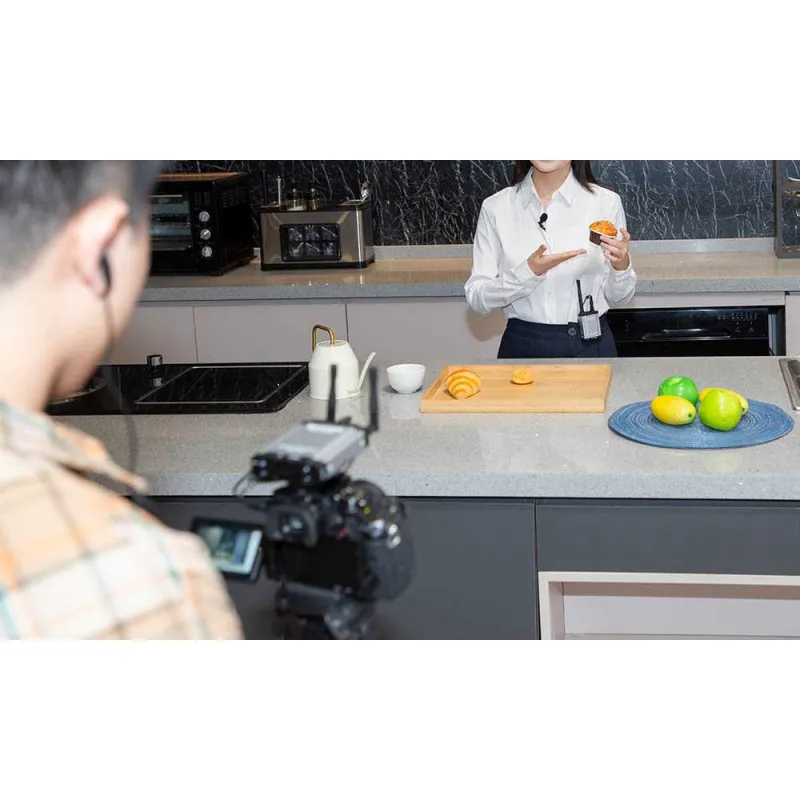

The innovative talkback feature allows discreet two-way communication between the sound engineer and the on-camera talent. Headphones can be connected to the transmitters, and the included headset with microphone connects to the receiver. This enables communication up to 100 meters apart without recording the talkback audio.

Monitoring and Control

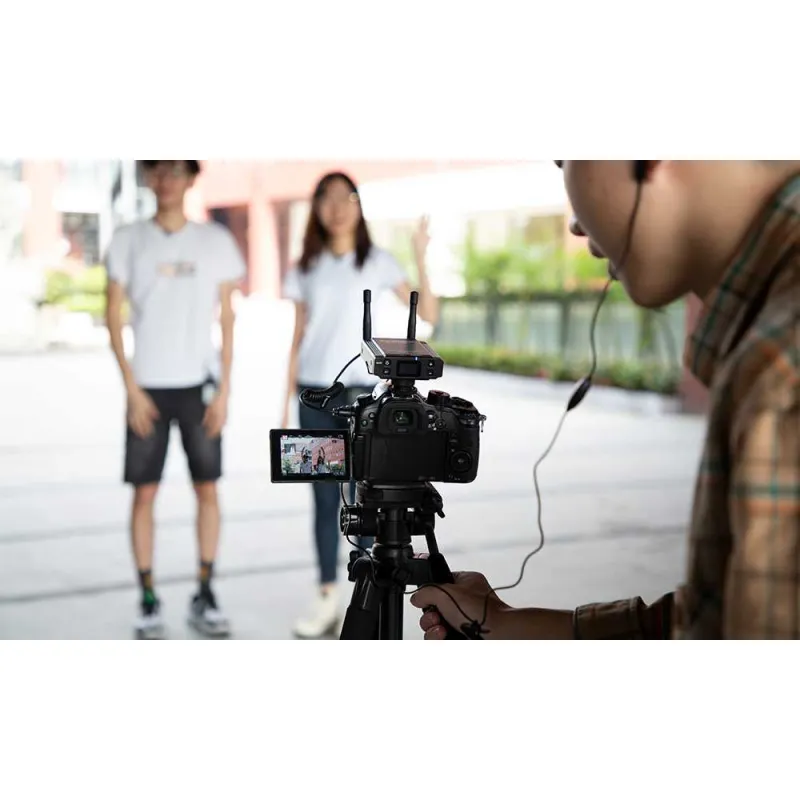

Both the receiver and transmitters feature backlit OLED screens for easy parameter control, including signal level, battery status, and range. The receiver supports headphone monitoring for real-time audio quality checks, helping to avoid unwanted noises or recording errors.

Audio Modes and Signal Levels

Users can adjust signal levels via "+/-" buttons on both transmitters and receiver. The receiver allows switching between MONO and STEREO modes to match hardware configurations and project requirements.

Battery and Power

Built-in rechargeable lithium-ion batteries provide up to 20 hours of continuous operation on transmitters and up to 19 hours on the receiver. Devices can be charged via USB-C or powered by an external power bank for extended use.

Connectivity and Range

The system operates in the 2.4 GHz band (2404–2476 MHz) with a stable wireless range up to 100 meters outdoors. Detachable antennas with 360° tilt adjustment enhance signal reliability and ease of transport.

Technical Specifications

Receiver (Vlink2 RX)

• Modulation: GFSK
• Frequency range: 2.4 GHz (2404–2476 MHz)
• Range: up to 100 m
• Audio jacks: 3.5 mm mini jack line out, line in, headphone/microphone input (TRS/TRRS compatible)
• Battery: built-in 3000 mAh Li-ion
• Operating time: up to 19 hours
• Power supply: USB-C DC 5 V (supports power bank)
• Signal-to-noise ratio: > 75 dB
• Headphone output power: 30 mW (32 Ω)
• Frequency response: 35 Hz – 18 kHz
• Dimensions: 88 x 69 x 23 mm
• Weight: 189 g

Transmitter (Vlink2 TX)

• Modulation: GFSK
• Frequency range: 2.4 GHz (2404–2476 MHz)
• Range: up to 100 m
• Audio jacks: 3.5 mm mini jack headphone output, MIC IN/LINE IN input (TRS/TRRS compatible)
• Battery: built-in 2000 mAh Li-ion
• Operating time: up to 20 hours
• Power supply: USB-C DC 5 V (supports power bank)
• Signal-to-noise ratio: > 75 dB
• Tie microphone sensitivity: -40 dB
• Headphone output power: 30 mW (32 Ω)
• Frequency response: 35 Hz – 18 kHz
• Dimensions: 70 x 52 x 23 mm
• Weight: 121 g

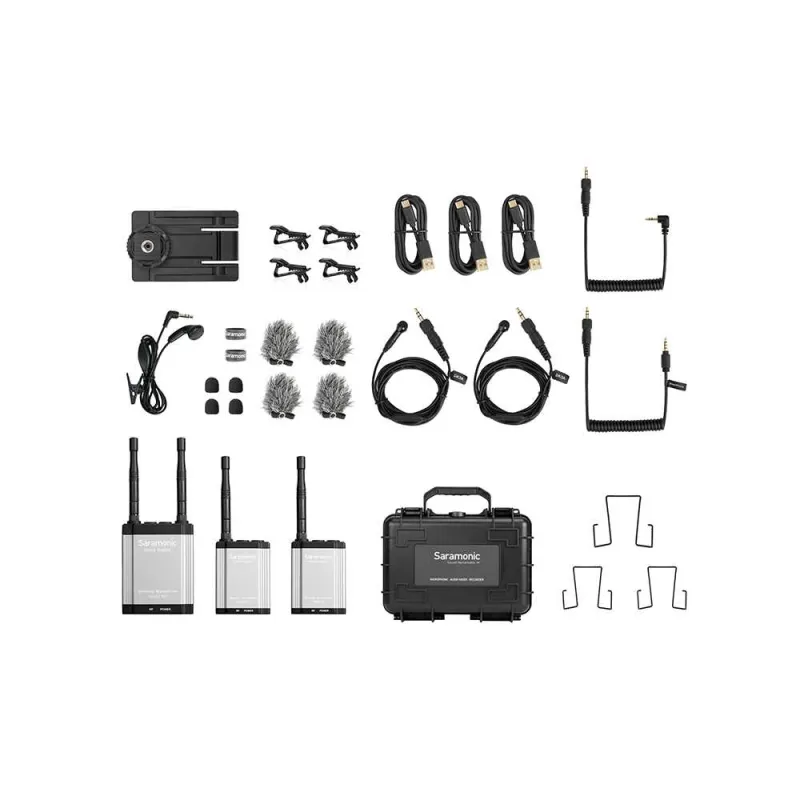

Kit Contents

• 1 x Vlink2 RX receiver
• 2 x Vlink2 TX transmitters
• 2 x Saramonic DK3 tie microphones
• 1 x Headset with microphone (for talkback and monitoring)
• 3 x USB-C to USB-A charging cables
• 1 x Mini Jack 3.5 mm TRRS cable with lock (for smartphone connectivity)
• 1 x Camera adapter
• 1 x Cold shoe mount adapter for receiver
• 4 x Detachable antennas
• 3 x Belt clips for transmitters

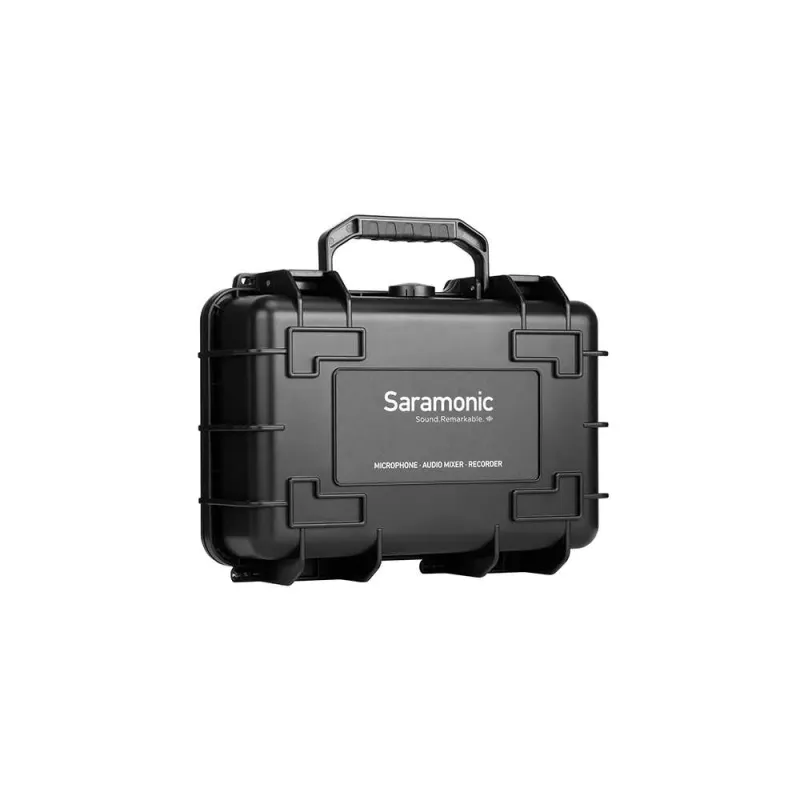

• 1 x Rigid protective carrying case
